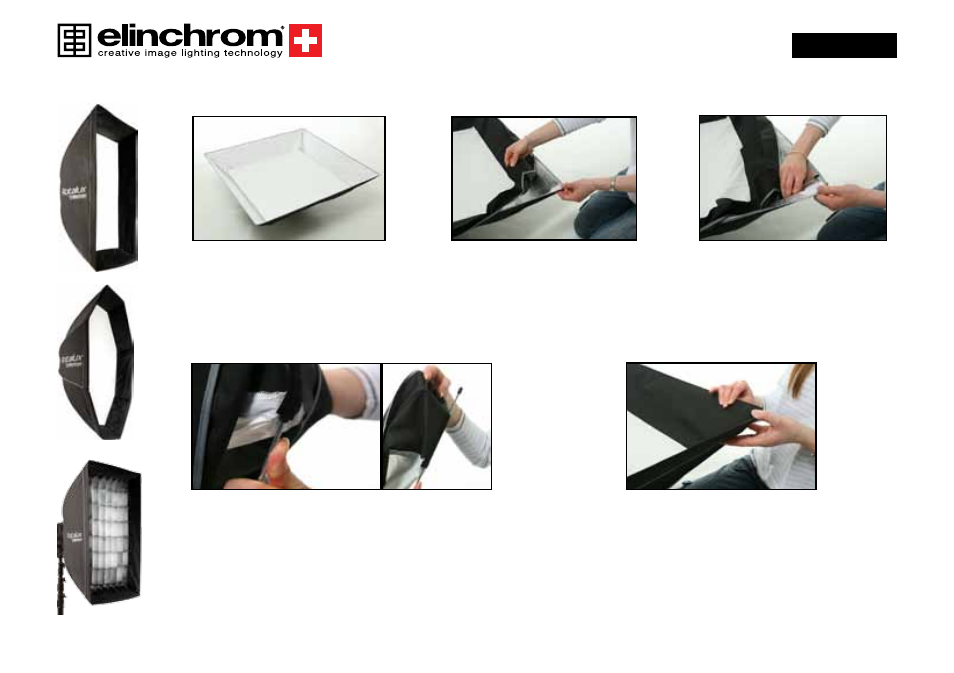

Fitting of Hooded Front Diffusers for Rotalux Softboxes

1. Assemble the softbox

without the front Diffuser and

place it on a floor or table.

2. Lay the Hooded Diffuser

over the softbox.

3. Pull the capped end of the

rod from the corner pocket of

the softbox.

4. Locate the Velcro™ strip in the corner of the

cover and push the capped end of the rod all

the way through.

5. Replace the capped end of the rod

into the corner pocket and fold the

cover over the corner of the softbox.

Please Note: The same technique is used to fit the Square, Rectangular,

Octagonal and the Rotagrid Diffuser.
