© ELAN Home Systems 2006 • All rights reserved. Page 19
V883 INSTALLATION MANUAL
ELAN Multi-Room Controller Multi-Chassis System

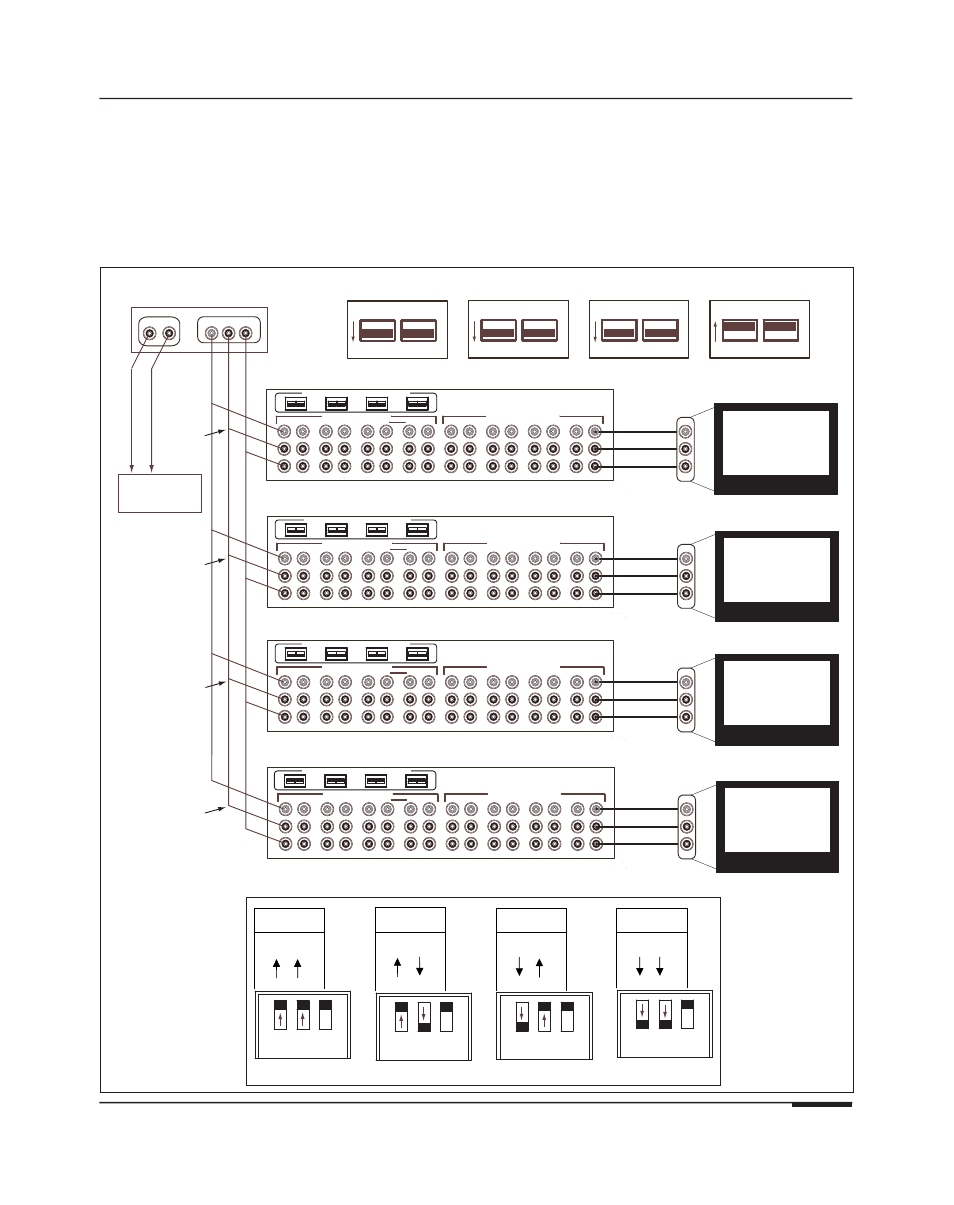

Multiple V883s used in ELAN Multi-Room Controller-based systems are configured
identically to those used in stand-alone systems. This application shows four V883s
linked together to form an 8 x 32 composite video matrix. Note the use of RCA ‘Y’
cables to split each source’s signal to each input of the V883’s. Set the 75 OHM
INPUT TERM jumpers as shown for each unit in order to retain signal integrity.
Verify that the UNIT ID DIP switches are correctly set for each unit to ensure proper
switching.
V883 #4 V883 #3 V883 #2 V883 #1
2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3
COMPONENT VIDEO INPUTS COMPONENT VIDEO OUTPUTS
Y P B P R ANALOG AUD
Component Video Source
Component
Video
Cables
or CVWP
V883 #1
TV Y
P B
P R
x8
2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3
COMPONENT VIDEO INPUTS COMPONENT VIDEO OUTPUTS
Component
Video
Cables
or CVWP
V883 #2
TV Y
P B
P R
x8
2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3
COMPONENT VIDEO INPUTS COMPONENT VIDEO OUTPUTS
Component
Video
Cables
or CVWP
V883 #3
TV Y
P B
P R
x8
2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3
COMPONENT VIDEO INPUTS COMPONENT VIDEO OUTPUTS
Component
Video
Cables
or CVWP
V883 #4
TV Y
P B
P R
x8
Component
Video
Cables
Component
Video ‘Y’
Cable
Component
Video ‘Y’
Cable
Component
Video ‘Y’
Cable
Component
Video ‘Y’
Cable
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
L R
To S6/S12
Source Inputs
75 OHM INPUT TERMINATORS, UP (TERMINATED), DOWN (NOT TERMINATED)
75 OHM INPUT TERMINATORS, UP (TERMINATED), DOWN (NOT TERMINATED)
75 OHM INPUT TERMINATORS, UP (TERMINATED), DOWN (NOT TERMINATED)
75 OHM INPUT TERMINATORS, UP (TERMINATED), DOWN (NOT TERMINATED)
1 2 3
UNIT 1
UNIT ID
1 2 3
UNIT 2
UNIT ID
1 2 3
UNIT 3
UNIT ID
1 2 3
UNIT 4
UNIT ID
(Factory Default)
