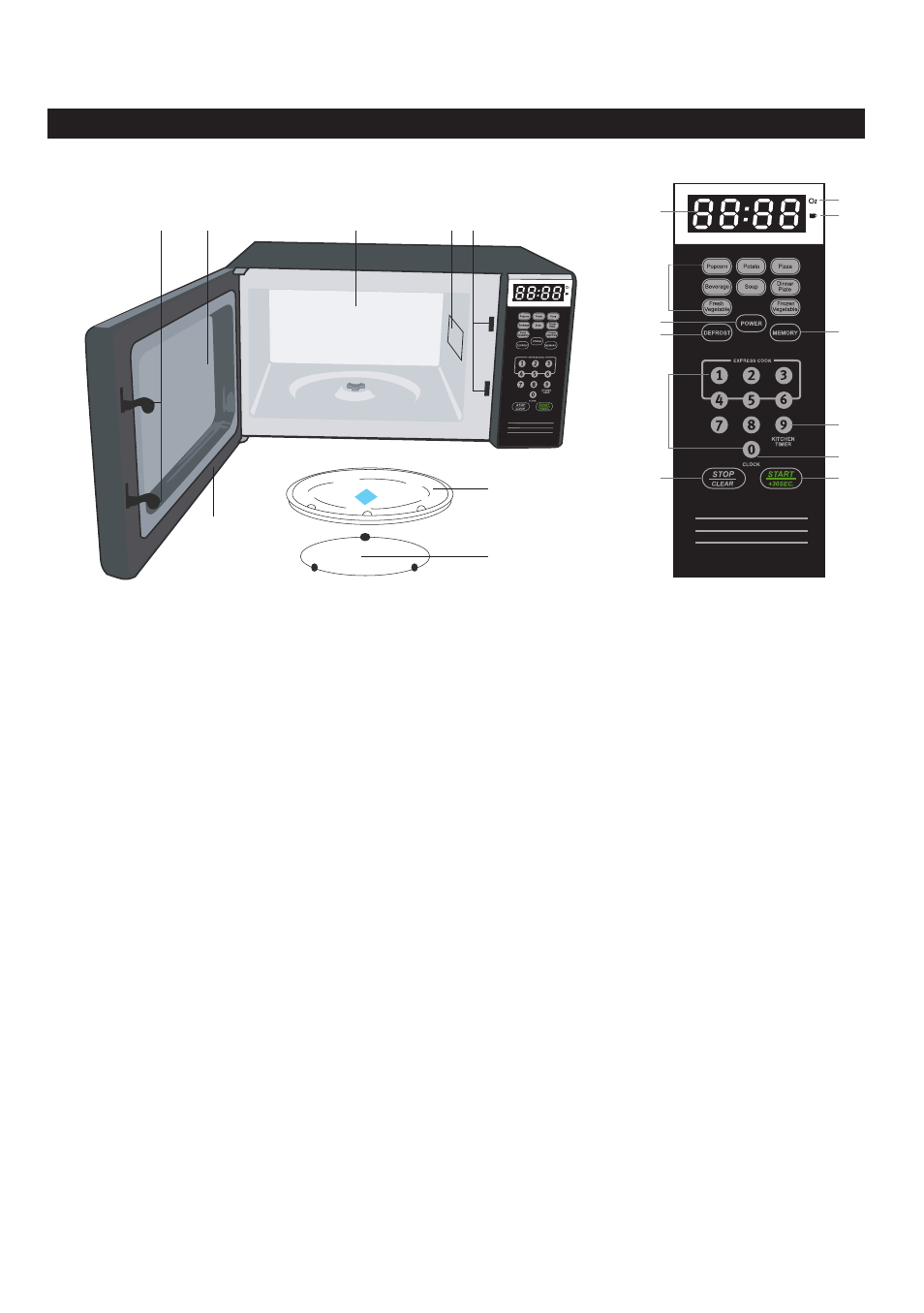

LOCATION OF CONTROLS
1 2 3 4 5
9
17
10
12
18
14 20
13
16
15
6
7
8
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11. Kitchen timer
12. Defrost Button-Used to set the oven to
estimate the defrosting time by weight entered.
Or used to set oven to defrost by a preset time.
13. Memory Function
14.Stop/Clear Button-Use to stop and/or cancel a
cooking program.
15. Cup Indicator
16. Oz Indicator
17. Auto Cook Menu-Used to select an Auto Cook
program.
18. Number 0-9
1-6 Minutes Express Cook Function
19. Clock Button-Used to set the clock.
20. Start/+30Sec. Button-Press to start a cooking
program
Door latch-When the door is closed, it will
automatically lock shut. If the door is opened while
the oven is operating, the magnetron will
automatically shut off.
Door screen-Allows viewing of food. The screen is
designed so that light can pass through, but not
the microwaves.
Oven cavity
Spatter shield-Protects the microwave outlet from
splashes of cooking foods.
Safety interlock system-Prevents the oven from
operating while the door is opened.
Door seal-The door seal maintains the microwaves
within the oven cavity and prevents microwave
leakage.
Glass cooking tray-Made of special heat resistant
glass. The tray must always be in proper position
before operating the oven. Do not cook food
directly on the tray.
Roller guide-Supports the glass cooking tray. Must
always be in proper position before operating the
oven.
Display
Power Level-Used to set a power level
