Design LED 36
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
COLORS
•
36 x 1W Luxeon 1 LEDs - (12 each R, G, B)
• High quality Luxeon LEDs manufactured by Lumileds, USA
• Long Life L.E.D. (rated at 100,000 Hours)
• Brilliant light output, infinite color possibilities
DMX TRAITS
3 Channel Mode:
Channel Value
Function
1
0 - 255
Red (0-100% red)
2
0 - 255
Green (0-100% green)
3
0 - 255
Blue (0-100% blue)
6 Channel Mode:
Channel Value
Function
1
0 - 255
Red (0-100% red)
2
0 - 255
Green (0-100% green)
3
0 - 255
Blue (0-100% blue)
4
0 - 255
Internal programs
5
0 - 255
Strobe
6
0 - 255
Dimming (2%-100%)

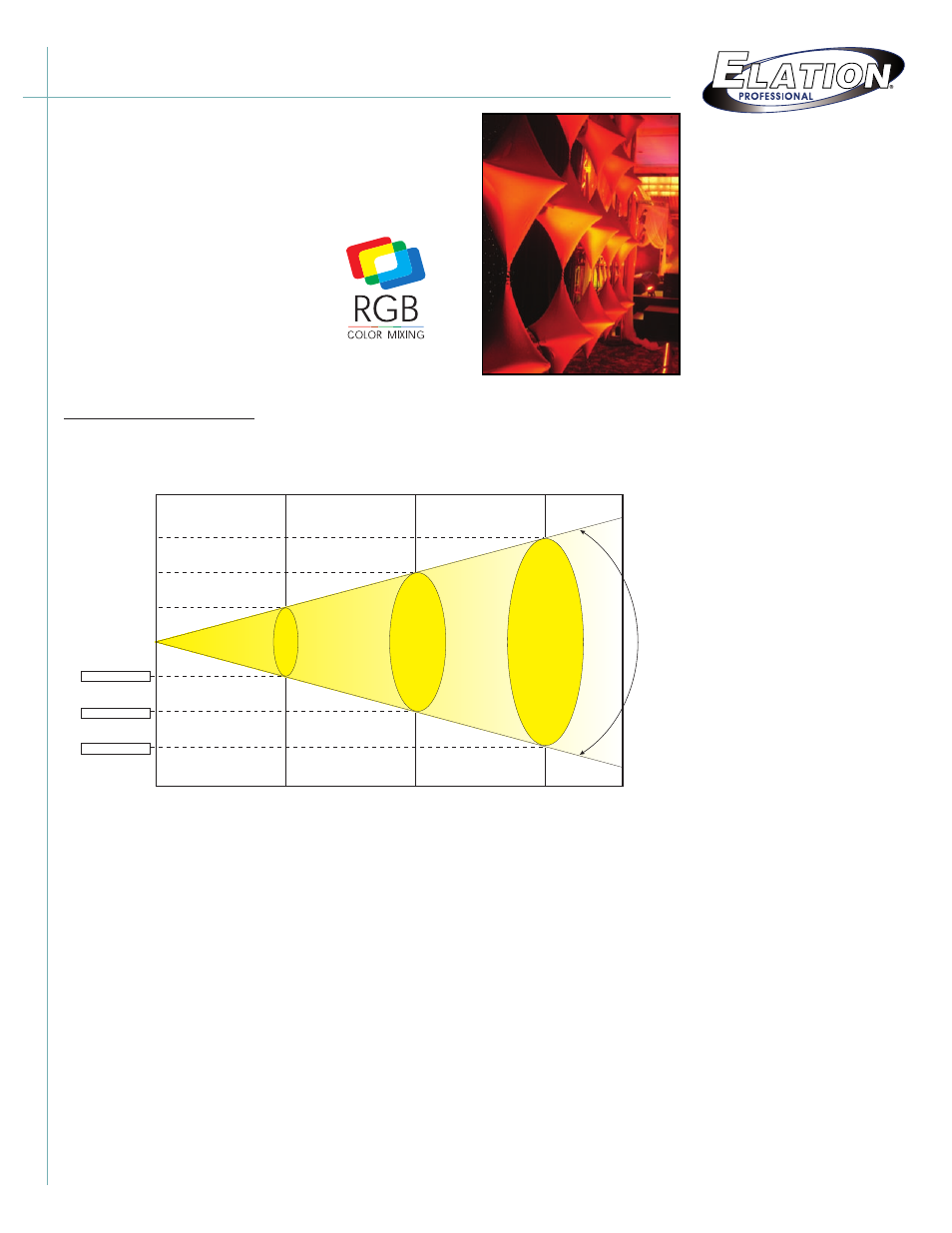

PHOTOMETRICS
Design LED 36
Photometric Beam Angle Data
Beam Angle 39°
LUX x 0.0929 = FC
39°
Beam Angle
164 FC
1,768 LUX
80 FC
854 LUX
28 FC
304 LUX
0 m
0 ft
1 m
3.28 ft
3 m
9.8 ft
2 m
6.6 ft
Ø 0.95 m
Ø 3.1 ft
Ø 1.35 m
Ø 4.4 ft
Ø 2.35 m
Ø 7.7 ft
Beam Diameter
Ø 0.95m / Ø 3.1ft
Ø 1.35m / Ø 4.4ft
Ø 2.35m / Ø 7.7ft
