G

rass

T

rimmer

/B

rush

C

uTTer

9

O

peraTOr

'

s

m

anual

c

ontents

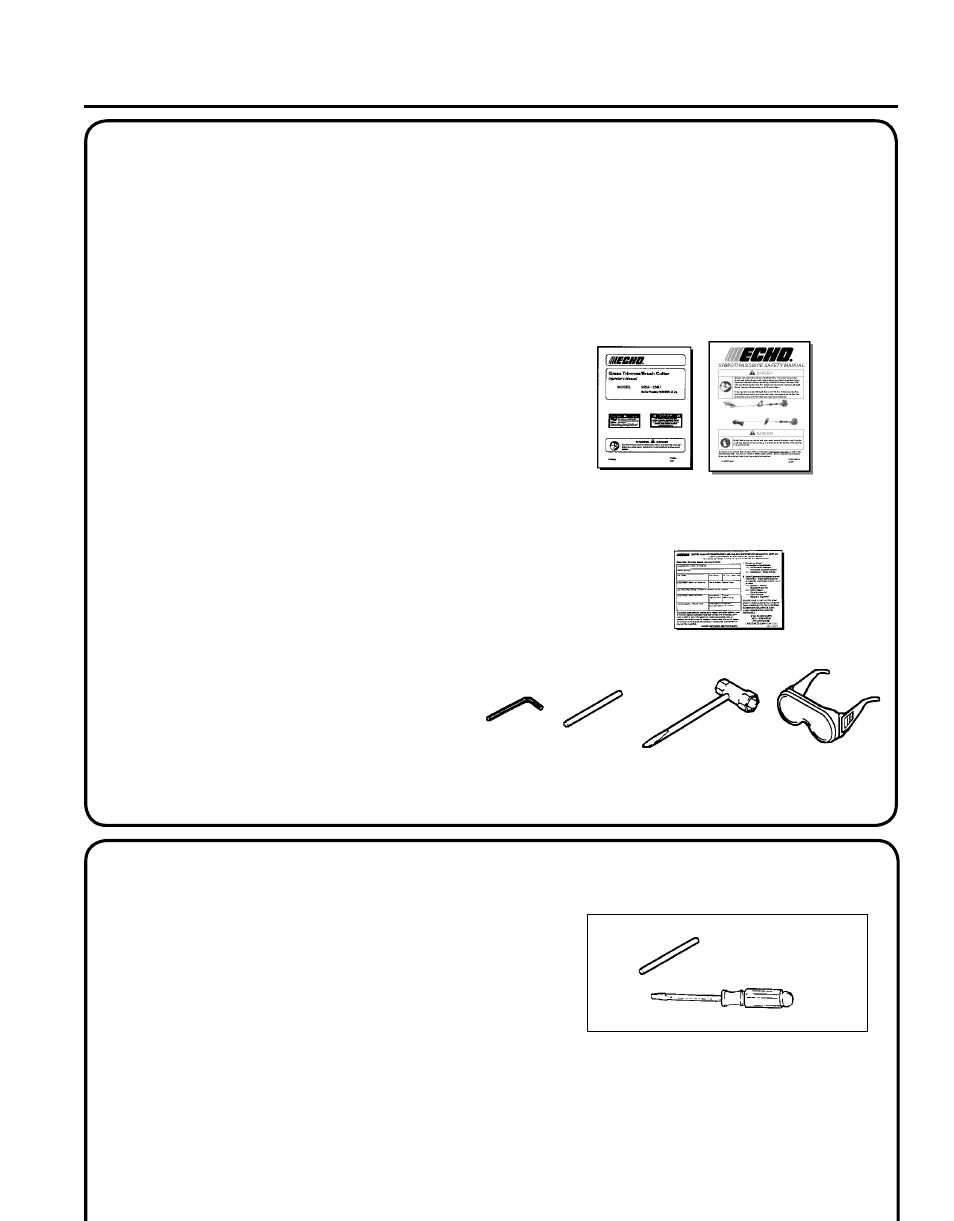

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,

shield installation and other assembly may be necessary.

After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing

parts. Use the contents list to check for missing parts.

___ 1- Power Head / Drive Shaft Assembly
___ 1- Plastic Bag (co-pack)

__ - 1, Operator's Manual

__ - 1, Safety Manual

__ - 1, Warranty Registration Card

___ - 1, Plastic shield

___ - 1, Tool Bag

___ --1, wrench 17x19

___ --1, locking tool

___ - 1, Nylon Trimmer Head

___ - 1, Safety Glasses

___ - 1, Plastic Bag

___ --1, shield plate

___ --3, 5mm x 16mm screws (shield mtg.)

___ --1, 4mm Hexagon Wrench

___ --1, 8mm x 55mm bolt

___ --1, flat washer

___ --2, cable clips

___ - 1, Plastic Bag

___ --3, 5mm x 16mm screws (shield mount)

___ --2, 5mm x 8mm screws (bracket to shield)

___ --4, 5mm nuts

___ --4, 5mm lockwashers

___ --1, metal shield

___ --1, bracket

___ - 1, Shoulder Harness w/hip pad

___ - 10, Cotter Pins

a

ssembly

plastIc

shIeld

InstallatIon

(Nylon line operation)

Tools Required: Screwdriver, Locking Tool
Parts Required: Plastic Debris Shield, Shield Plate,

three (3) 5 x 16 mm screws.
