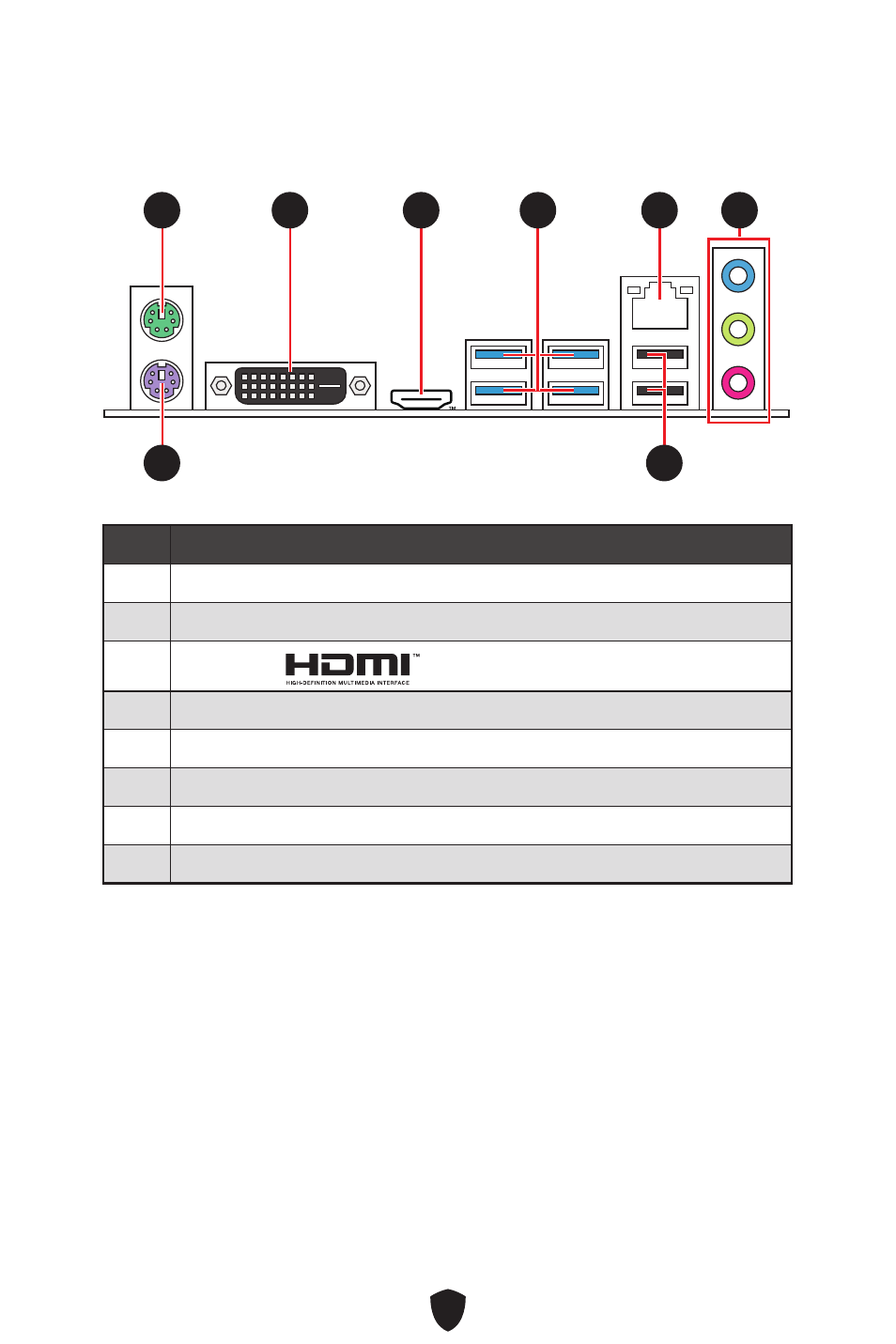

Back Panel Connectors

Item

Description

1

PS/2 Mouse port

2

DVI-D port

3

HDMI™ port

4

USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)

5

2.5 Gbps LAN (RJ45) jack

6

Audio jacks

7

PS/2 Keyboard port

8

USB 2.0 Type-A ports (From B450 chipset)

1

1

7

7

2

2

5

5

6

6

3

3

4

4

8

8
