NV3128 RS-422A Machine Control Data Routing Switch
3-7
F1
SENDING A SINGLE TAKE

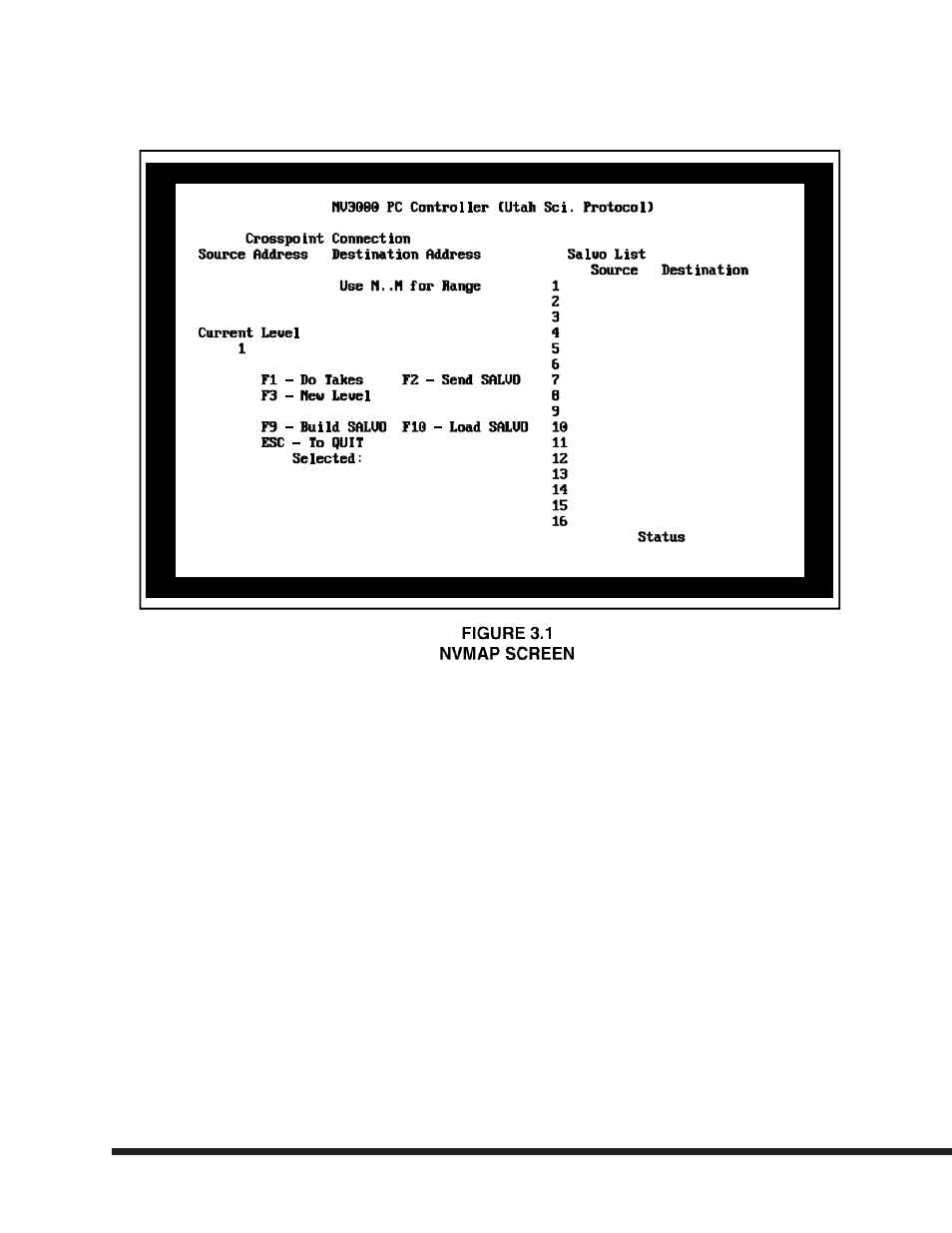

The F1 function key enters the single-take mode of operation. The
cursor moves to the source address prompt in the upper left hand
corner of the screen. When source and destination addresses have
been entered, the take is sent to the routers Control Interface. A
results message is displayed on the lower right-hand portion of the
screen, either COMMAND COMPLETED or TIME OUT, NO
RESPONSE.
The single-take command mode supports one-to-many addressing,
allowing a single source to connect to a range of destinations. The
syntax for the destination address entry is [START RANGE
ADDRESS]..[END RANGE ADDRESS].
EXAMPLE:
SOURCE ADDRESS
2
DESTINATION ADDRESS 3
