1.) Speaker.
2.) Flashlight Red Cover.
3.) TUNING Control.
4.) Clock SET Button.
5.) LCD Clock.
6.) NIGHT LIGHT.
7.) WEATHER Band Button.
8.) Telescopic Antenna.
(FM/TV/Weather Bands)
9.) Clock MODE Button.
10.) Back LIGHT Button.
11.) VOLUME Control.
Power On/OFF Switch.
12.) Function Selector Switch.
(ON/FLASH/OFF/AUTO)
13.) Carrying Handle.
14.) CDS Sensor.
15.) WB FINE TUNING Control.
16.) Dial Pointer.
17.) Band Selector Switch.
(AM-FM/TV 1-TV 2)
18.) EARPHONE Jack.
19.) Rechargeable Battery ompartment.
(Bottom Cabinet)
20.) AC Polarized Plug. (Unfolded)
21.) Torch.

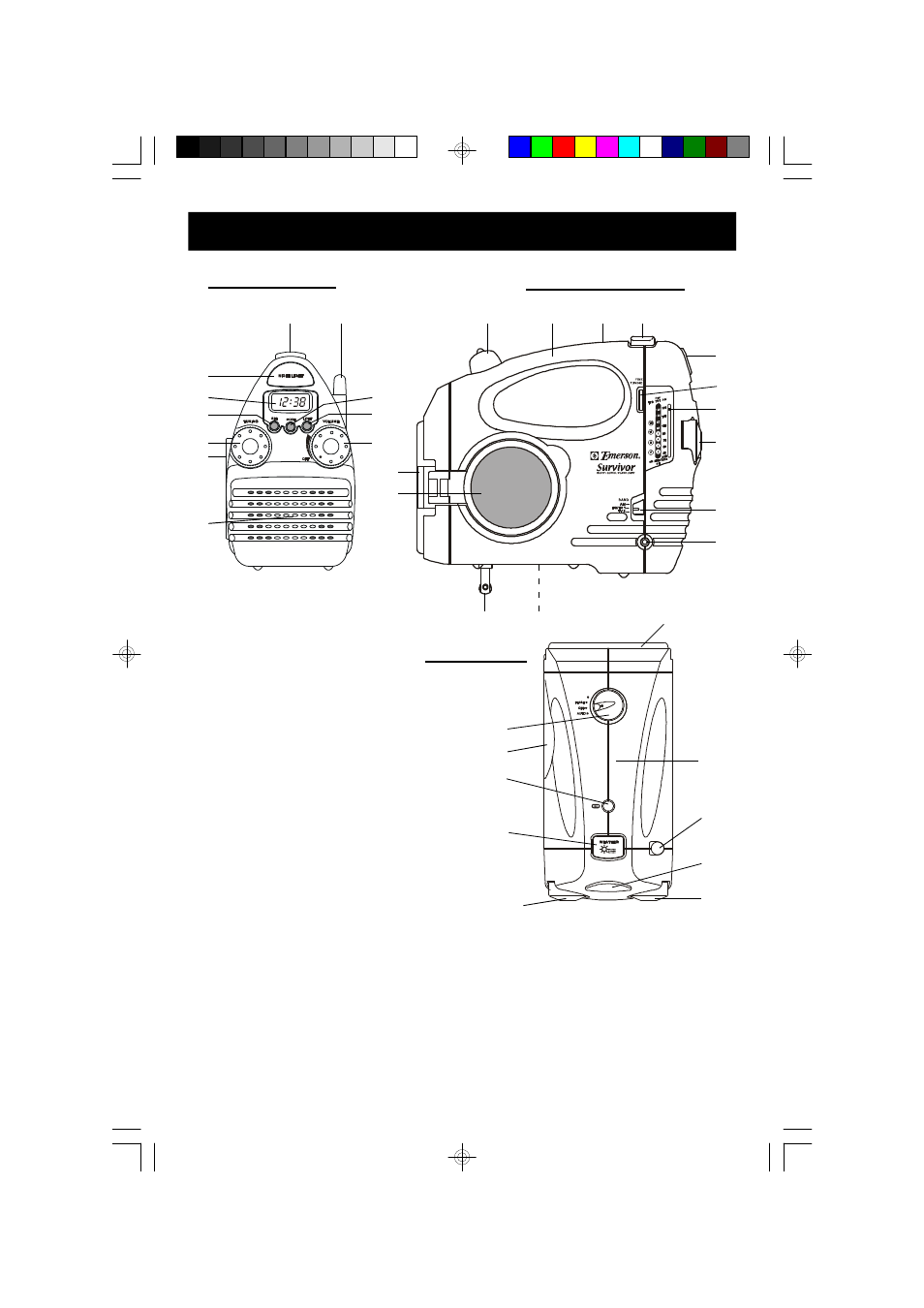

FRONT PANEL
LOCATION OF CONTROLS AND INDICATORS
LEFT SIDE PANEL
TOP PANEL
ON
12
14
7
3
21
13
8
6
11
2
EARPHONE
W B
3
7 8 12
15
2
3
1
5
6
18
13 14 7
6
16
17
4
19 20
2
22
9
10
11
