3 mount action camera, 4 power on/off, 3 mount action camera ……………………………………………………… 5 – Feiyu Vimble 2A Telescoping 3-Axis Handheld Gimbal for HERO8/7/6/5 & More User Manual
Page 7: 4 power on/off ……………………………………………………………… 5
www.feiyu-tech.com
5
4

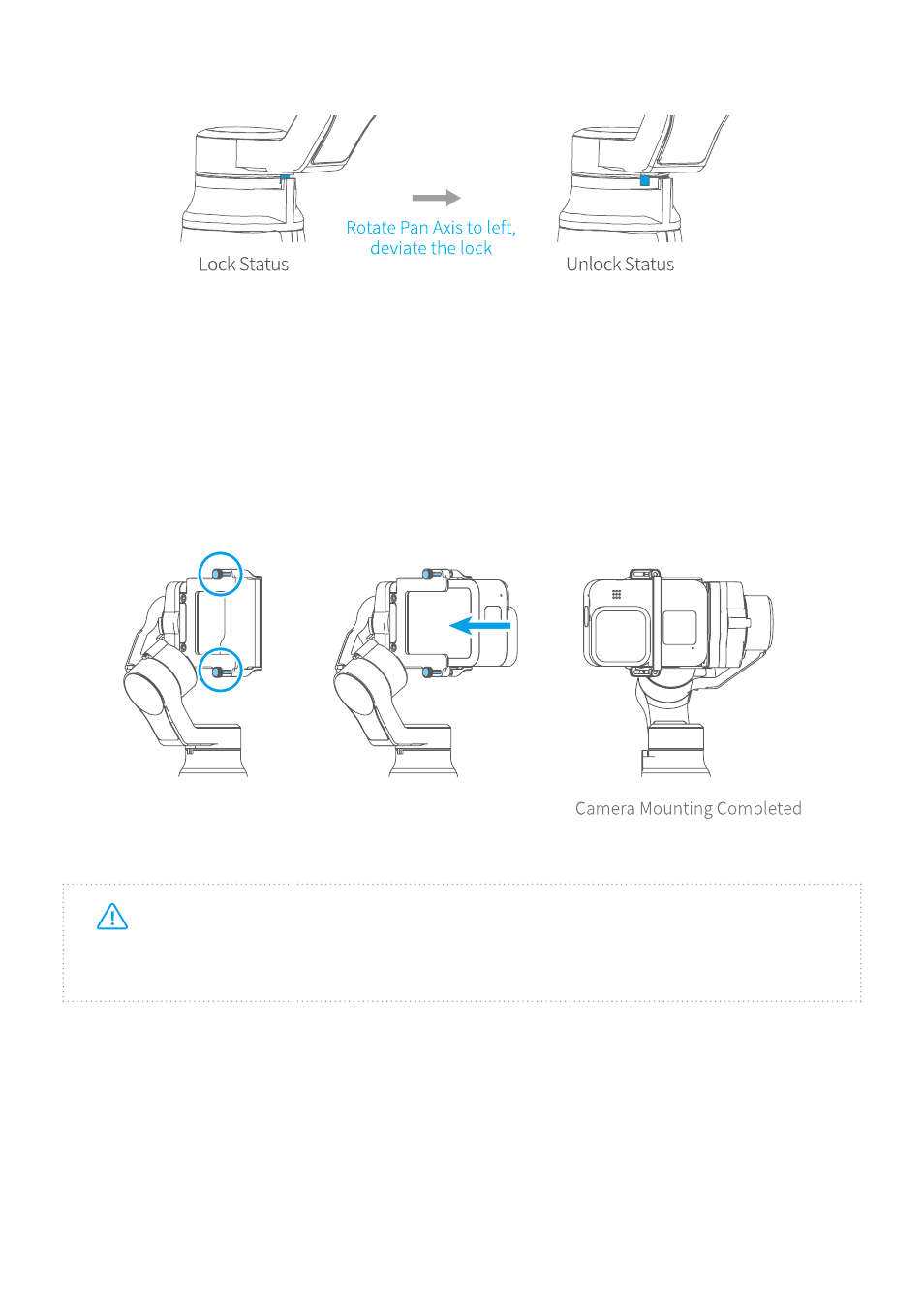

Take the pan axis position lock for example.
2.3 Mount Action Camera
Take the GoPro HERO8 camera for example.
1) Loosen the thumb screw.
2) Put the camera on mounting plate, then tighten the camera with retainer bar
and screw.
* It is recommended to install GoPro HERO8 upsidedown as pictured below.
2.4 Power ON/OFF
TIPS:
(1
) Unlock pan axis position lock & roll axis position lock before using.
(2) Tighten action camera before power on gimbal.
Power ON/Power OFF:
Long press function button, release the button after hearing beep sound.
