14
Pilot and Bypass Screws Conversion
1. Remove control knobs and set aside.
2. Remove upper grates.
3. Lift the cooktop by both front corners until the side support
rods snap into position.
4. Open oven door.
5. Locate the two top fasteners and two bottom fasteners and
remove them using a Phillips head screwdriver.
6. Set the front panel aside and locate the oven thermostat.
7. Locate the Natural gas bypass screw in the bag containing
literature included with the range. One LP gas bypass screw is
stamped “76.”
8. Remove the LP gas bypass screw with a flat-blade
screwdriver, turning counterclockwise.
9. Install the natrual gas bypass screw with a flat-blade
screwdriver, turning clockwise.
10. Locate the Natural gas pilot screw in the bag containing
literature included with the range. One Natural gas pilot screw
is stamped “94.”
11. Remove LP gas pilot screw with a flat-blade screwdriver,
turning counterclockwise.
12. Install the Natural gas pilot screw with a flat-blade screwdriver,
turning clockwise.
13. Replace the front panel and screw bottom and top fasteners
in place.
14. Replace the control knobs. Push back on the side support
rods and slowly lower the cooktop until it snaps into position.
Close the oven door.
Complete Conversion
1. Refer to the “Make Gas Connection” section for properly
connecting the range to the gas supply.
2. Turn the manual shutoff valve in the gas supply line to the
open position.
3. Refer to the “Check Operation” section for proper burner
ingnition, operation and burner flame adjustments.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Checking for proper cooktop and oven burner flames is very
important. The small inner cone should have a very distinct
blue flame ¼" to ½" (0.64 cm to 1.3 cm) long. The outer cone
is not as distinct as the inner cone. Natural gas flames do not
have yellow tips.
4. Close the broiler door and turn the knob to “OFF.”
5. Refer to the “Complete Installation” section to complete this
procedure.

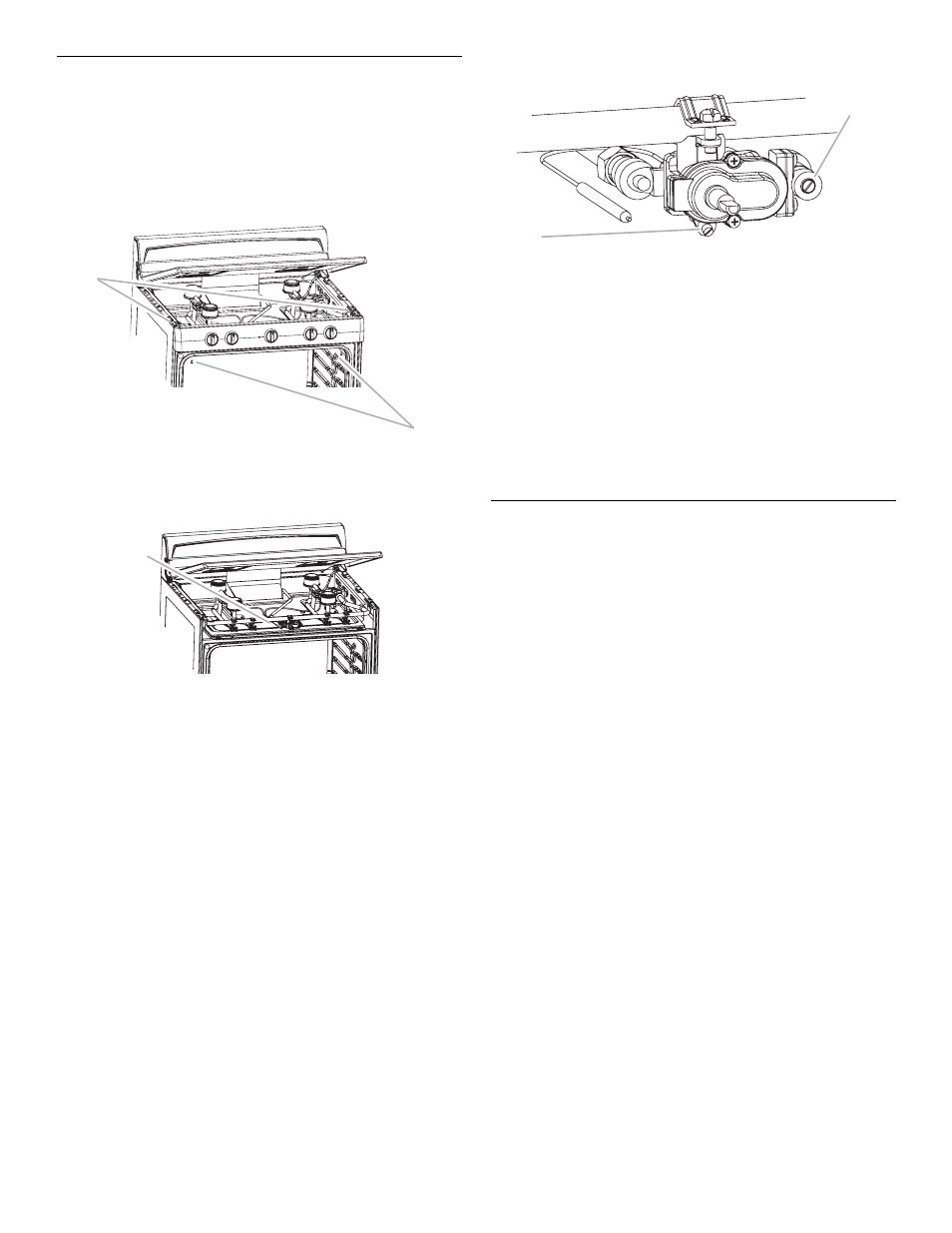

A. Top fasteners
B. Bottom fasteners
A. Oven thermostat
A
B
A
A. Pilot screw
B. bypass screw
A
B
