OPTION 2: USB Extender Direct Surface Mounting

(using your own hardware)

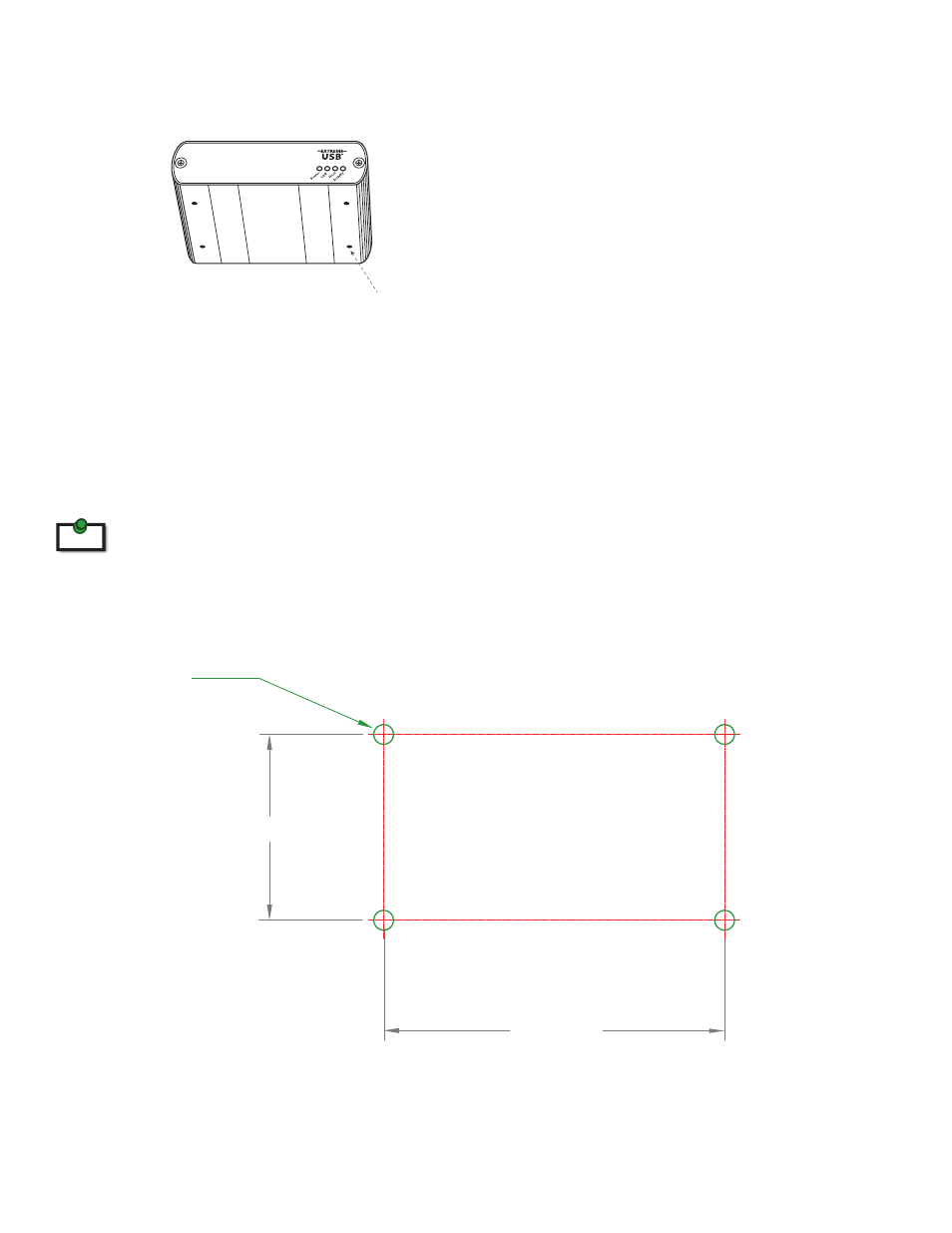

The bottom of the Ranger 2304GE-LAN enclosures features four pre-drilled holes for optional surface
mounting.

Distance between the enclosure mounting holes:

42.0mm x 77. 0mm

1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or

using a print out of the stencil below.

2. Hardware recommendation: M3.0 locking washers and M3.0 screws (4 of each per extender) noting

screw length will depend upon thickness of mounting surface.

Drill through each of the four-hole markings on the mounting surface using a 4.7625mm (3/16”) drill bit.

4. Align the bottom enclosure holes to the newly drilled out holes on the mounting surface.
5. Place a locking washer on each of the four screws and using a screwdriver, fasten the extender into place.

To ensure the stencil below prints to scale be sure to set the page scaling setting to “none”.

42.0mm (1.6535'')

4.8mm (3/16'')

(4 Places)

77.0mm (3.0315'')

mounting hole

Direct Surface Mounting Measurement Stencil

note
