Mount flexible arm, English – NEC EX241UN-H-BK 23.8" 16:9 IPS Monitor (Wall Mount) User Manual
Page 11
English-9
English
Mount Flexible arm
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.

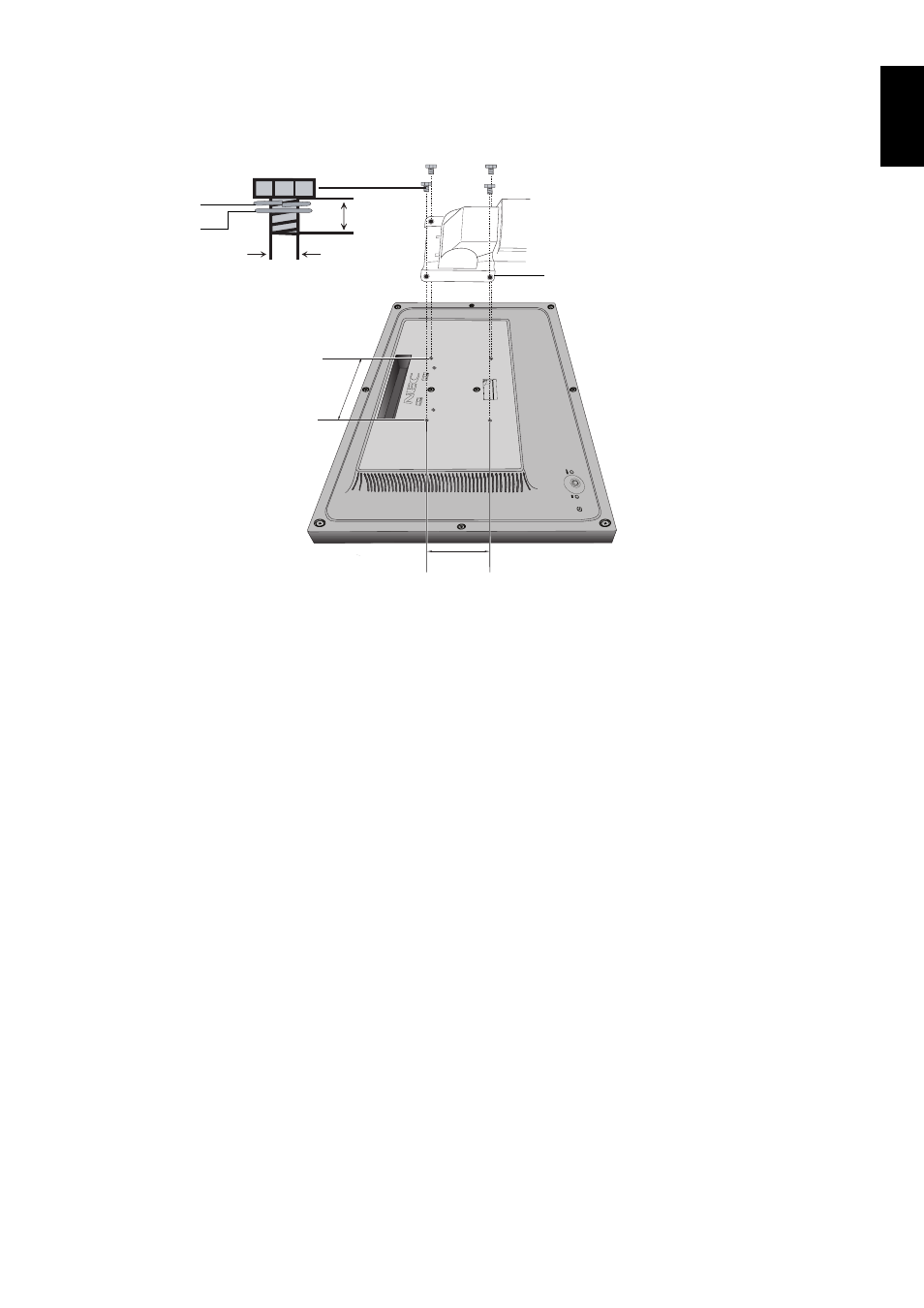

2. Using the specifi ed 4 screws, attach the arm to the monitor (
Figure F.1
).
Figure F.1
100 mm
100 mm
Weight of LCD assembly: 3.7 kg
12 mm
M4
Spring washer
Flat washer
Thickness of Bracket (Arm)
2.0~3.2 mm
Caution:
Use ONLY 4 pieces M4 sized specifi ed screws when mounting to avoid damage to the monitor and stand.
To fulfi ll the safety requirements the monitor must be mounted to an arm, which guaranties the necessary stability
under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm
(e.g. TUEV GS mark).
NOTE:
Tighten all screws (recommended Fasten Force: 98 - 137N•cm).
