22

| About

your

monitor

Pin assignments

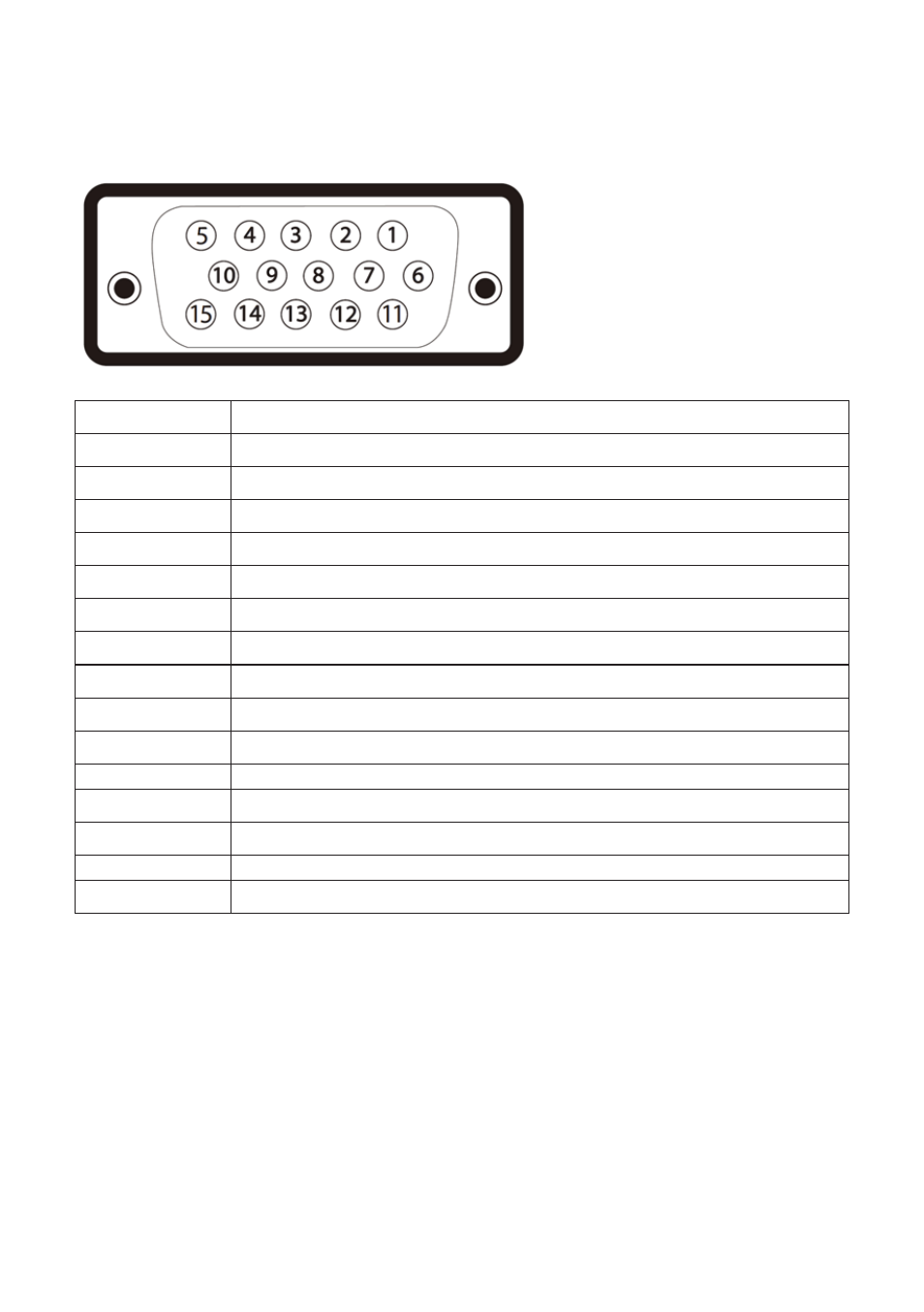

VGA connector

Pin Number

15-

pin Side of the Co

nnected Signal Cable

1

Video-Red

2

Video-Green

3

Video-Blue

4

GND

5

Self-test

6

GND-R

7

GND-G

8

GND-B

9

Computer 5V/3.3V

10

GND-sync

11

GND

12

DDC data

13

H-sync

14

V-sync

15

DDC clock
