Page 5

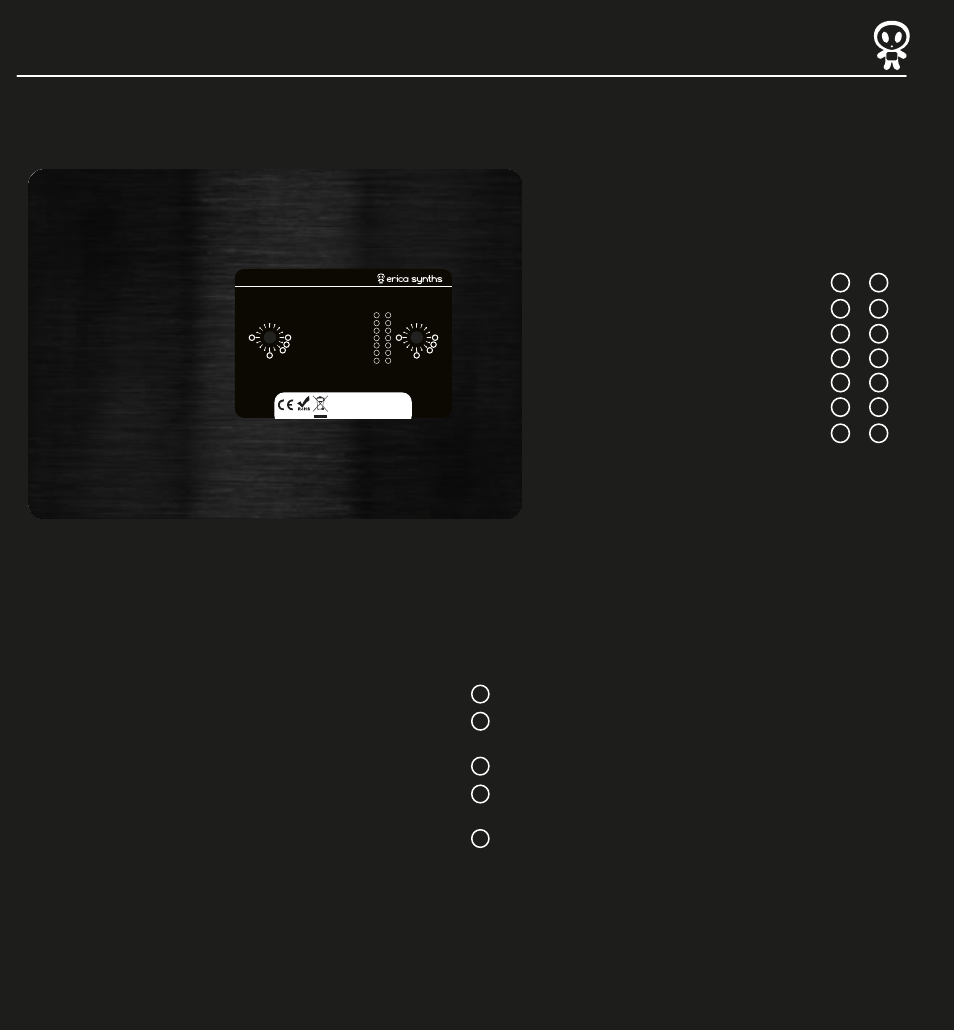

CTRL IN options

acidbox lll CTRL IN options

SERIAL NUMBER

SINGLE FOOTSWITCH: BYPASS ON/OFF

DUAL FOOTSWITCH: BYPASS & TAP TEMPO

TRIG/GATE IN FOR LFO SYNC

CV IN FOR CUTOFF

TIP - CUTOFF CV, RING – LFO SYNC

EXPRESSION PEDAL, ROLAND-COMPATIBLE

EXPRESSION PEDAL, KORG-COMPATIBLE

0
1
0
0

4
8
2

1
1
4
2

2
2
8

TIP

RING

PLEASE CHECK THE USER MANUAL FOR CTRL IN CONFIGURATION!

MADE IN LATVIA

The Control input can be configured for following applications:

- ON/Bypass footswitch

- Cutoff CV input

- LFO synchronization input

- Expression pedal. AcidboxIII is designed for use with unpowered expression pedals

from different manufacturers. These expression pedals have stereo jacks, and

most common are Roland-type expression pedals, where tip of the jack outputs

CV form the expression pedal, and ring is power supply. Korg-type expression

pedals output CV on the ring, and the tip is power supply.

On order to change the configuration, follow instructions below:

Disconnect the AcidboxIII from the power supply
Use a small flat screwdriver to access the rotary switches. Each switch has 16

positions, and active positions are indicated on the label.
Rotate the TIP encoder to set desired configuration.
If you wish to configure TIP for use with a Roland-type expression pedal, you need

to set a TIP for

Cutoff CV IN

(setting 2) and a

RING for Power supply

(setting 8).

If you have Korg-type expression pedal, configure TIP for Power supply (setting 8)

and Ring for Cutoff CV IN (setting 2)

Configuration is done via two rotary encoder switches accessible thru holes on

the back of the AcidboxIII. The left switch configures the tip of the CTRL IN jack,

the right switch – the ring of the CTRL IN jack. Typically you will need to

configure only left one – TIP.

Default configuration is Cutoff CV for the TIP and NO ASSIGN for the RING
