StarTech.com VGA to HDMI Converter and Scaler User Manual
Page 6
Instruction Manual
3

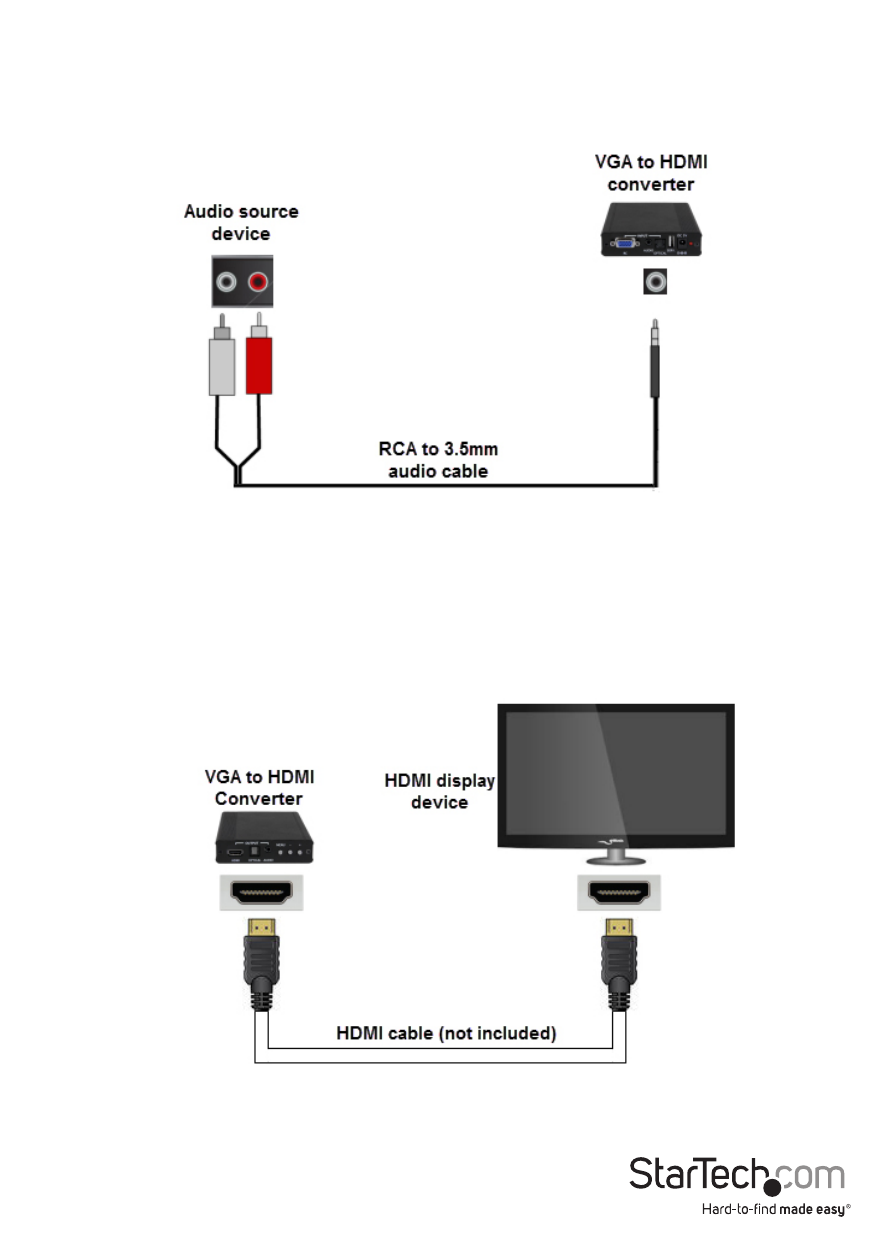

2. (optional) If you would like to include audio on your HDMI output signal, connect an
audio cable from your source device to either the 3.5mm audio input (analog) or the
SPDIF input (digital), depending on your available or desired audio output on your
source device.
Note:
An RCA to 3.5mm audio cable is included for RCA audio sources. If your audio
source is anything different (i.e. 3.5mm or SPDIF) additional cabling is required.
3. Connect the HDMI output on the VGA to HDMI converter to the HDMI input on your
HDMI display device using an HDMI cable (not included).
