HDMI2VGA
HDMI to VGA Video Converter with Audio
Installation Guide
Packaging Contents
1 x HDMI2VGA converter •
1 x DE-15 VGA to Component RCA cable adapter •
1 x Universal Power Adapter •
1 x Installation Guide •
System Requirements
HDMI enabled video/audio source •
VGA or YPbPr component enabled display device •
Stereo audio speakers with 3.5mm mini-jack (optional) •
Available electrical outlet •
Specifications
Video Signal RGBHV, YPbPr
Audio Signal PCM
Connectors
1 x HDMI
1 x DE-15 VGA female
1 x 3.5mm mini-jack
1 x DC power
LEDs 1 x Power
Maximum Video Resolution
1920x1200@60Hz
1080p@50/60Hz
Power Adapter 5VDC, 2.6A, center positive
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature 0°C ~ 60°C (32°F ~ 140°F)
Humidity 0 ~ 60% RH
Dimensions (WxHxD) 76.0mm x 30.0mm x 92.0mm
Weight 172g
Installation
Make sure all devices are powered off before installing the 1.
HDMI2VGA converter.
Connect the HDMI video/audio source to the HDMI2VGA
2.
converter using a standard male/male HDMI cable.
If connecting the HDMI2VGA to a VGA display device, use
3.
a standard male/male VGA cable. Set the “Output” selector
switch to RGB mode.
If connecting the HDMI2VGA to a component video (YPbPr)
4.
display device, use the included VGA to RCA component
cable adapter. Set the “Output” selector switch to YPbPr
mode.
OPTIONAL: If the HDMI source is also transmitting audio,
stereo speakers/headphones may be connected to the 3.5mm
mini-jack connector.
Connect the power adapter from a power outlet to the 5.
HDMI2VGA converter. The LED next to the power connector
should light up solid.
Power on the display device.
6.
Power on the HDMI video/audio source. 7.
The HDMI2VGA converter will automatically convert the 8.
incoming video signal to the configured output signal. The
video resolution, refresh/scan rate, etc. will remain the same
as the original.

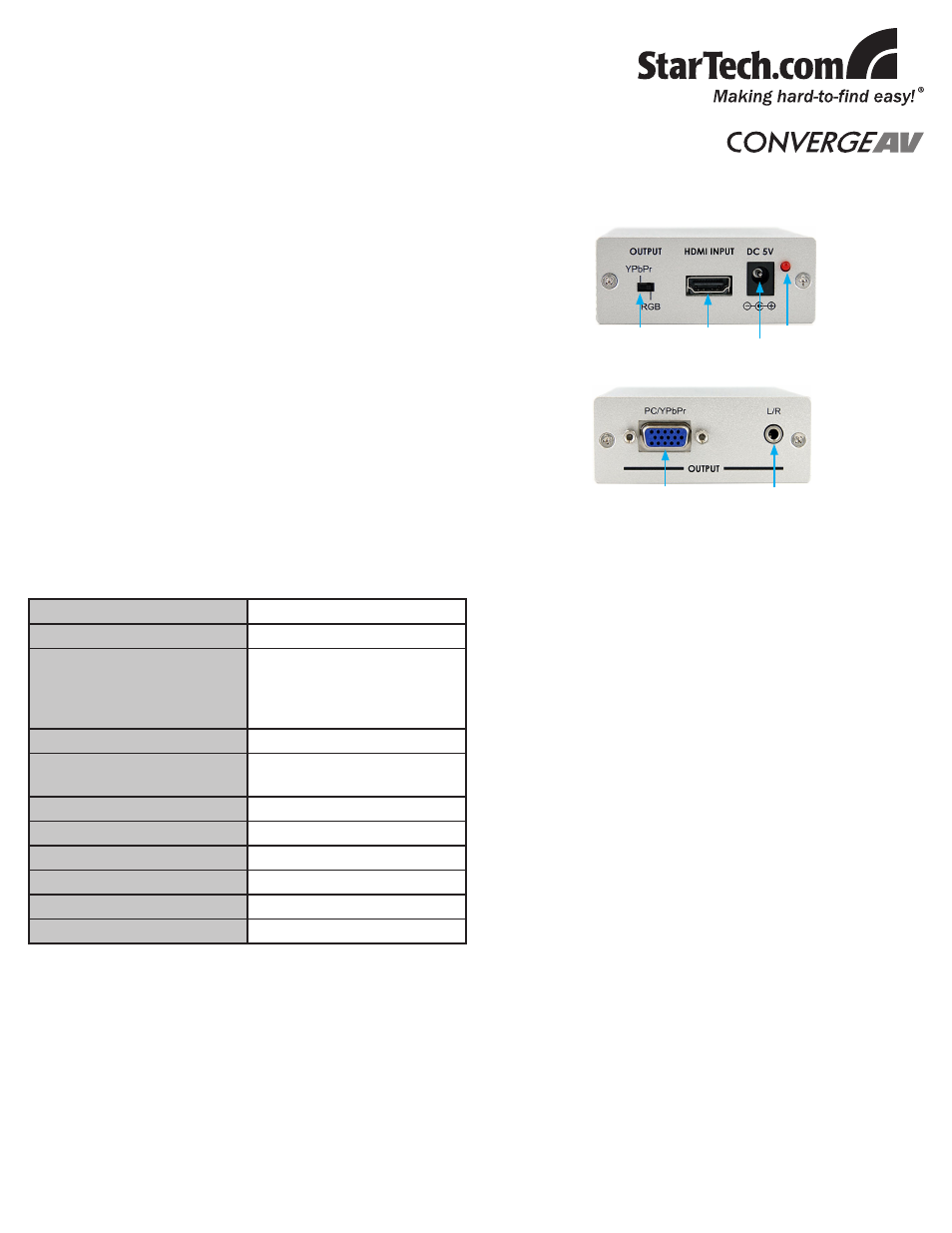

Front Side View
Rear Side View
HDMI connector
(input)
Output
selector switch Power connector
Power LED
DE-15 VGA
connector (output)
3.5mm mini-jack
Audio (output)
