Owner’s Manual
7
1. DC Input - Connect the suplied adapter here. WARNING: Do not substitute any
other kind of power adapter. Doing so can cause severe damage to your RXD1m
and void your warranty.
2. Unbalanced Outputs - Use these unbalanced 1/4” and 1/8” jacks when
connecting the RXD1m to consumer (-10 dBV) audio equipment. Wiring is as
follows: tip hot, sleeve ground
3. Balanced Output - Use this electronically balanced low impedance (600
Ohm) XLR jack when connecting the RXD1m to professional (+4 dBu) audio
equipment. Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3
low (cold)

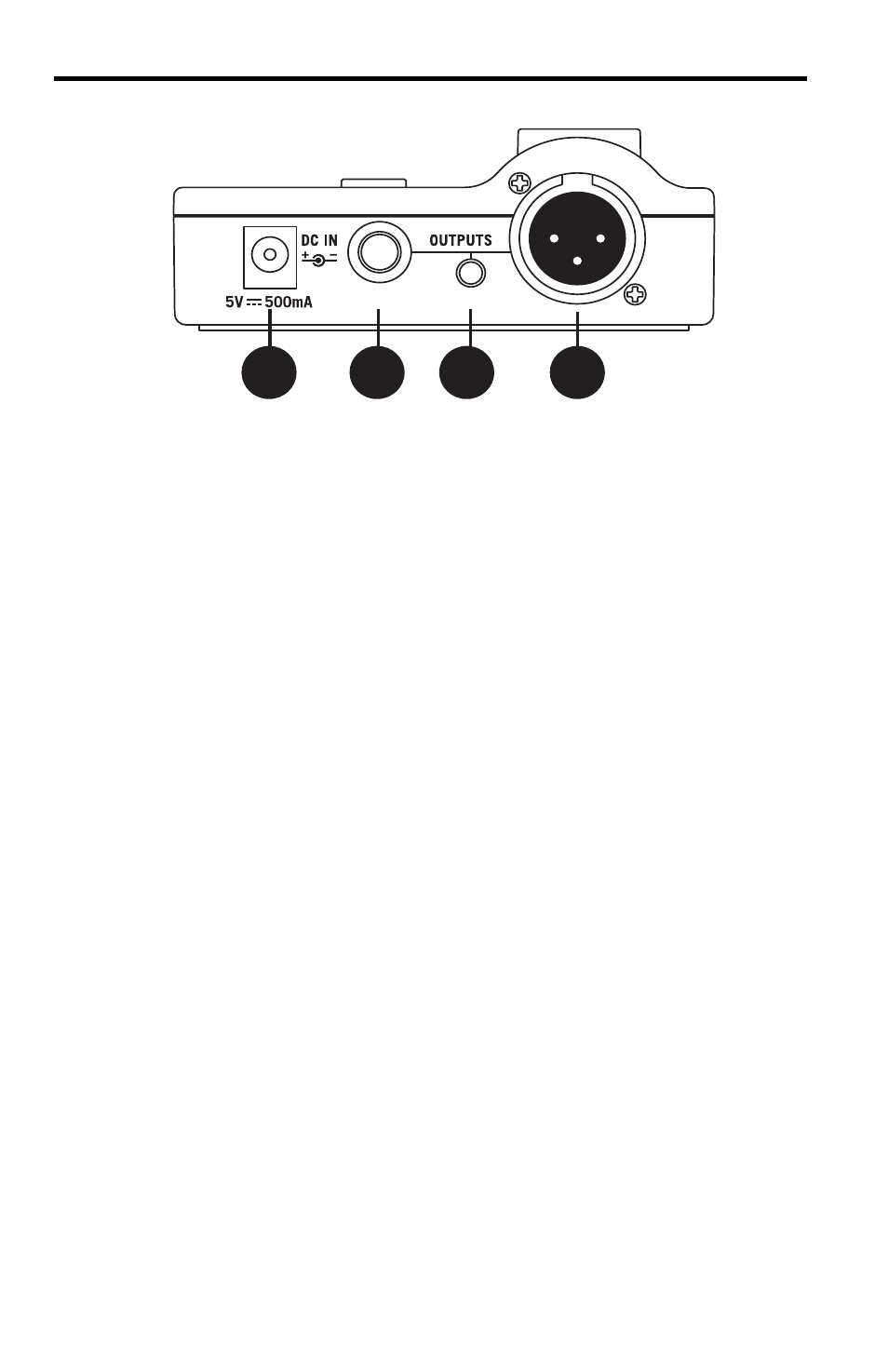

RXD1m Receiver Features Rear Panel
1 2 2 3
