Double Collar Kit (DUOCOLLKIT) Installation
E32AF75GTT, E32AR75GTT
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA • 250 Bobby Jones Expressway • Augusta, GA 30907 • 1-877-4electrolux (1-877-435-3287) • electroluxusa.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxca.com
DUOCOLLKIT INST 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
Panel-Ready All-Freezer and All-Refrigerator

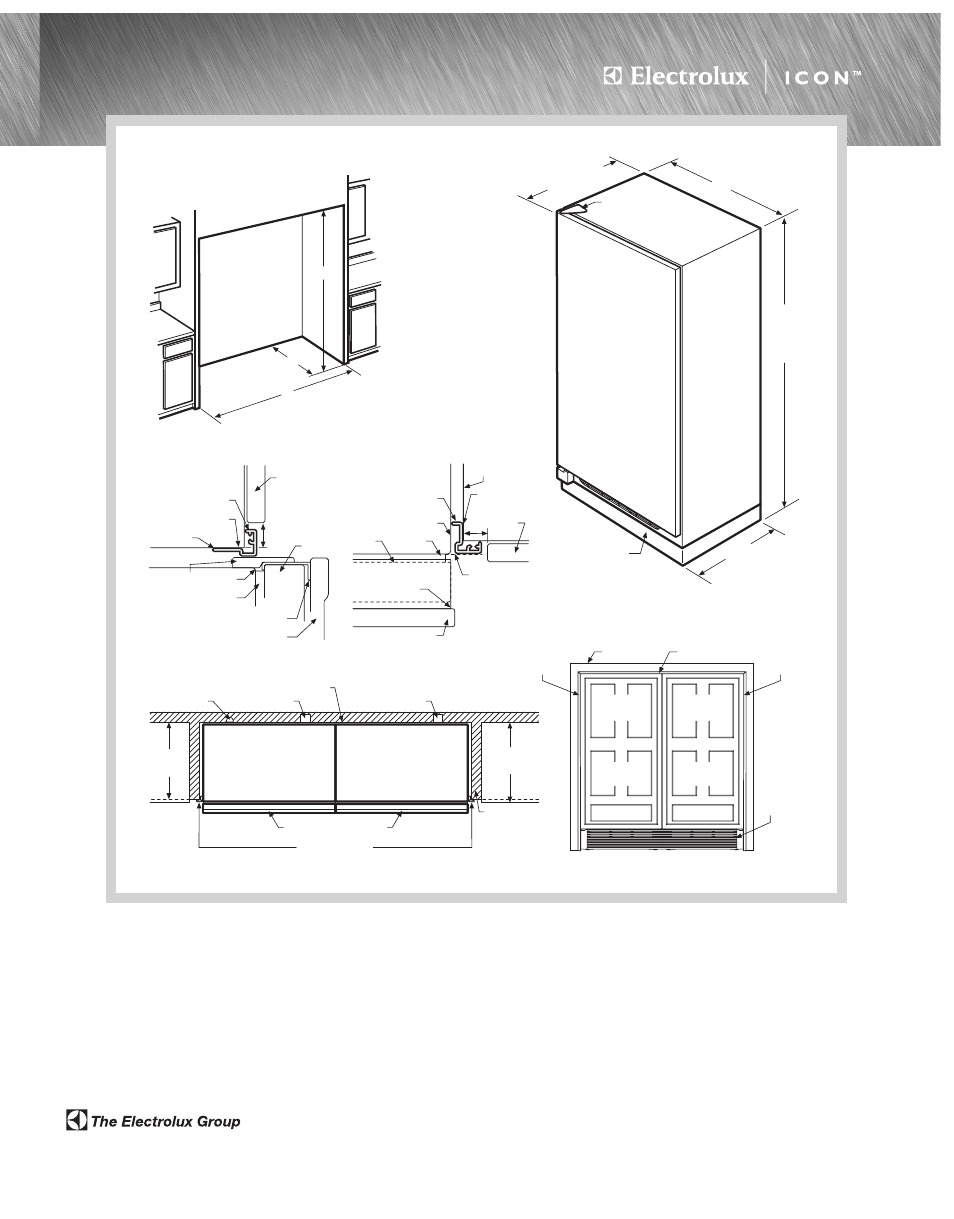

Optional Double Collar Kit (DUOCOLLKIT) Specifications
• To use Double Collar Kit (DUOCOLLKIT), an enclosure is required
around All Freezer and All Refrigerator having an opening of 70-3/4" H
x 66" W with a minimum depth of 25-1/4" from cabinet’s front face
and 1" minimum cabinet side panels.
• Minimum 25-1/4" depth requires recessed electrical outlets and
water lines.
• Cabinet or soffit above unit must extend out to same depth as
side panels.
• Minimum 10' x 8' clear floor space required for Collar Kit assembly.
• For detailed Panel-Ready All-Freezer and All-Refrigerator installations,
refer to product specifications pages.
Note: Refer to Product Installation Guide for detailed instructions
on the web at electroluxusa.com.
Panel-Ready
All Freezer
(E32AF75GTT)
Panel-Ready
All Refrigerator
(E32AR75GTT)
Panel-Ready
All Freezer
(E32AF75GTT)
Panel-Ready
All Refrigerator
(E32AR75GTT)
Top View
Cutout
3 /
4
" Custom Door Panels
Side Collar Trim
1" min.
Cabinet
Side Panels
Recessed
water line Recessed
electrical outlet
24 24""
Cabinet Cabinet
24"
Cabinet
25 25""
Countertop Countertop
25"
Countertop
Recessed
electrical outlet
Cutout Dimensions
(A) 70 3 /
4
" (B) 66" (C) 25 1 /
4
" min.*
*Minimum depth from cabinet’s
front face and requires recessed
electrical outlet and water line.
Double Collar Kit
(DUOCOLLKIT)
Kit includes:
Full-width, vented, louvered toe
kick, 4" riser with leveling system
and side/top trim pieces. A
B
C
Top Trim Piece
Overhead
Cabinet
Door
1"
min.
Case
Panel Retainer Bracket
Gasket
Custom Door Panel
Top Trim Piece
Cabinet Underside
Hinge Cover
Door
Shims
Install side
trim flush
with freezer /
refrigerator
case front
Cabinet Side
Case
Side Trim Piece
Custom Door Panel
Door
Side Trim Piece
Panel Retainer
Bracket
Gasket
Cabinet
Door 1"
min.
Shims
68 3 /
4
"
min.
69 3 / 4 "
max.*
32"
24 1 /
4
" 4" riser with
leveling system
26 3 / 4 " (not incl.
custom panel)
21 /
32
"
(hinge height)
*Height includes cabinet plus 4" riser
( 21 /
32
" hinge height not included)
Louvered
toe kick
with 4"
riser /
leveling
system
Right side
trim piece Left side
trim piece Top trim piece
All
Freezer
Custom
Door Panel
All
Refrigerator
Custom
Door Panel
Cabinet face
