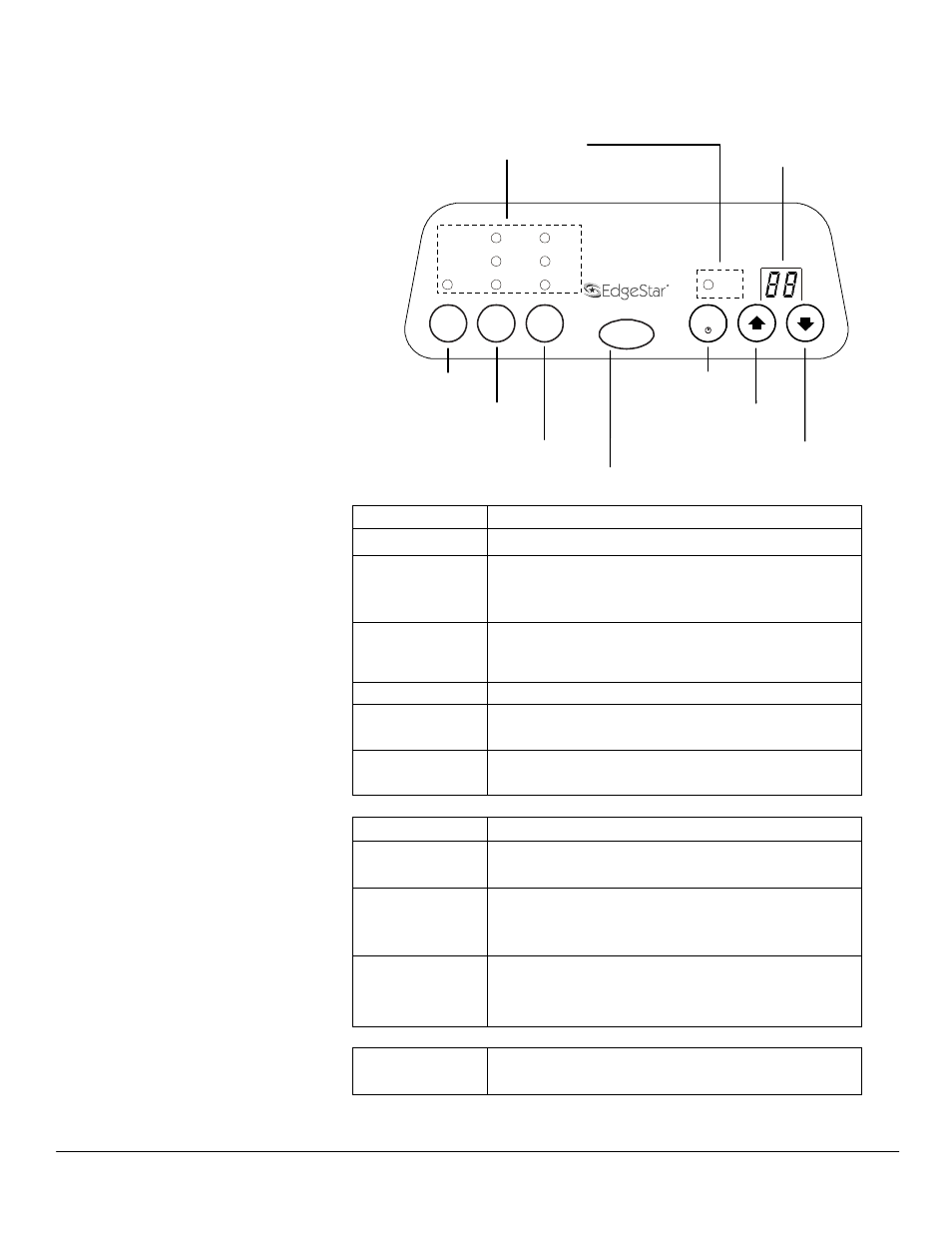

Control Panel Overview
Button Function
Power Powers the unit on or off.
Mode Changes between cool, dehumidify and fan
modes. The indicator light will turn on next to
the mode you set.
Speed Sets the fan speed. The High, Medium, or Low
indicator light will turn on next to the fan speed
you set.
Timer  Used to enable the timer.
 (Up) Increases the set temperature or the time
when the Timer button is enabled.
 (Down) Decreases the set temperature or time when
the Timer button is enabled.
Indicator Function
Water Light The water light will turn on if the unit has filled
the internal water reservoir.
Timer Light The timer light indicates you have set the
timer. Use the Up and Down buttons to set the
number of hours.
LCD Display The LCD can display the ambient temperature,
set temperature, and the number of hours
when setting the timer.
Infrared
Sensor
Receiver for the remote control.
Infrared Sensor
LCD Display
Power Button
Cooling
Timer
High
Low
M edium
W ATER Fan Only
Dehumidify
Speed Mode Timer POWER
Indicator Lights
Down Button
Up Button Mode Button
Speed Button
Timer Button
