23

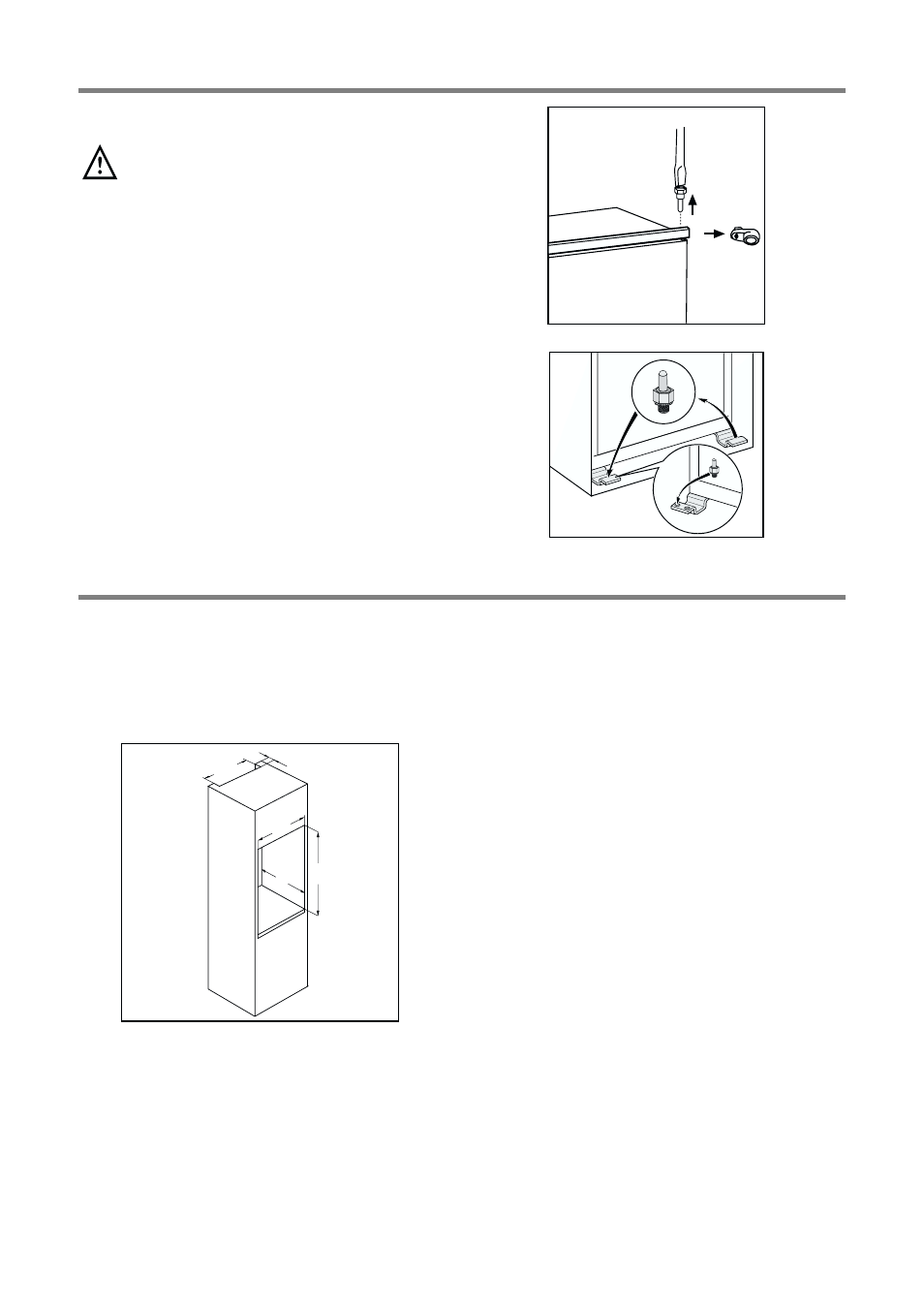

Dimensions of the recess
Height of housing (1) 1225 mm
Depth of housing (2) 550 mm
Width of housing (3) 560 mm
It is necessary that the niche is provided with a
conduct of ventilation having the following
dimensions:
Depth
50 mm
Width 540 mm
Building-in
PR0
540
50
3
2 1
Door reversal
The appliance is supplied with the door
opening to the right.
For door opening in the opposite direction,
perform the following actions prior to
installation
1. Unscrew the upper pin and remove the spacer
2. Remove the door.
3. Unscrew with a key the lower pin and replace it
on the opposite side.
4. Reinsert the door, refit the spacer and rescrew
the upper pin on the opposite side.
