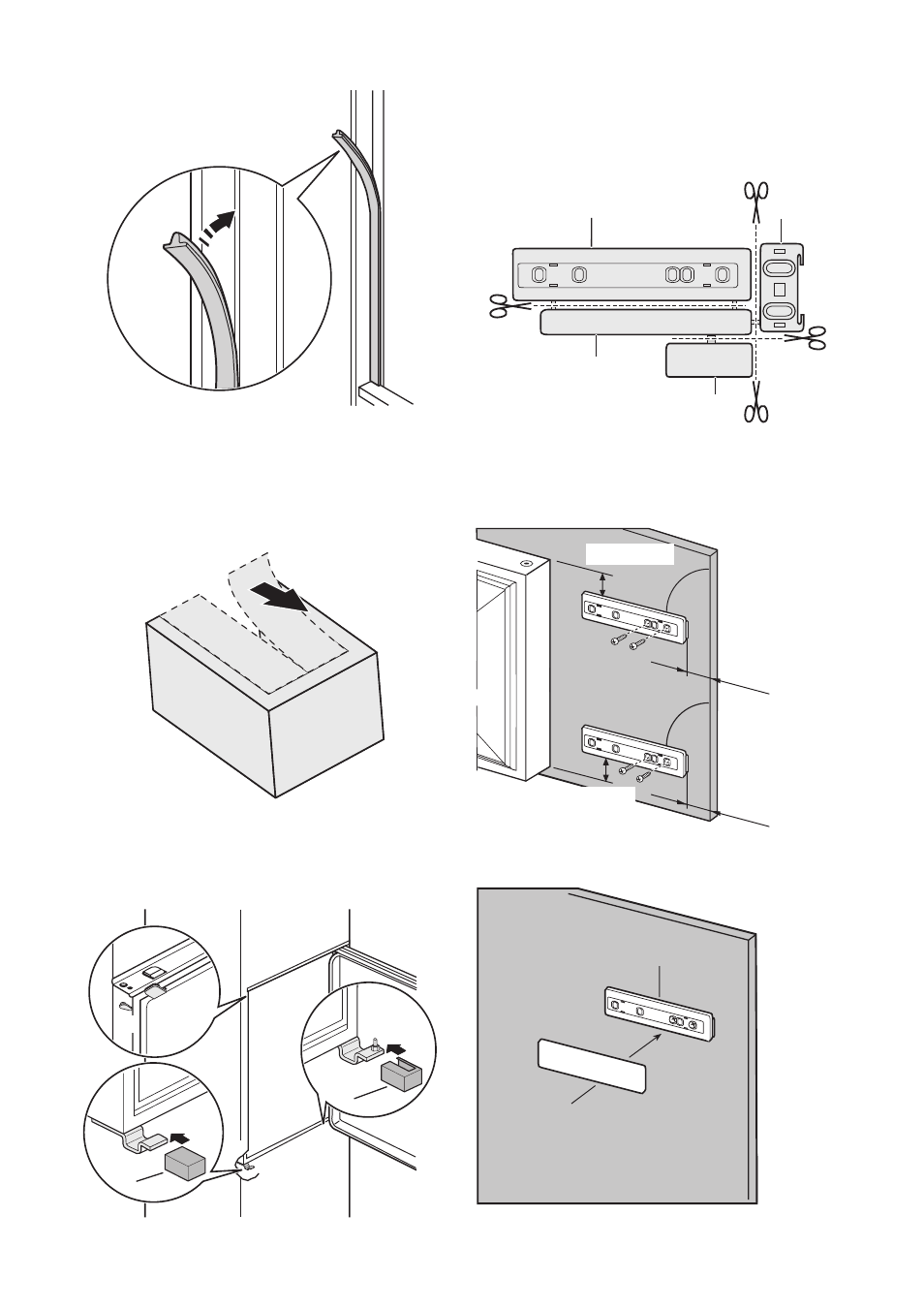

5. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in op-
posite case.
6. Attach the covers (C, D) to the lugs and
the hinge holes.
Attach the hinge covers (E) to the hinge.
E
E
D
C
7. Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
Ha Hb
Hc
Hd
8. Install the part (Ha) on the inner side of
the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
9. Push the part (Hc) on the part (Ha).
Ha
Hc
