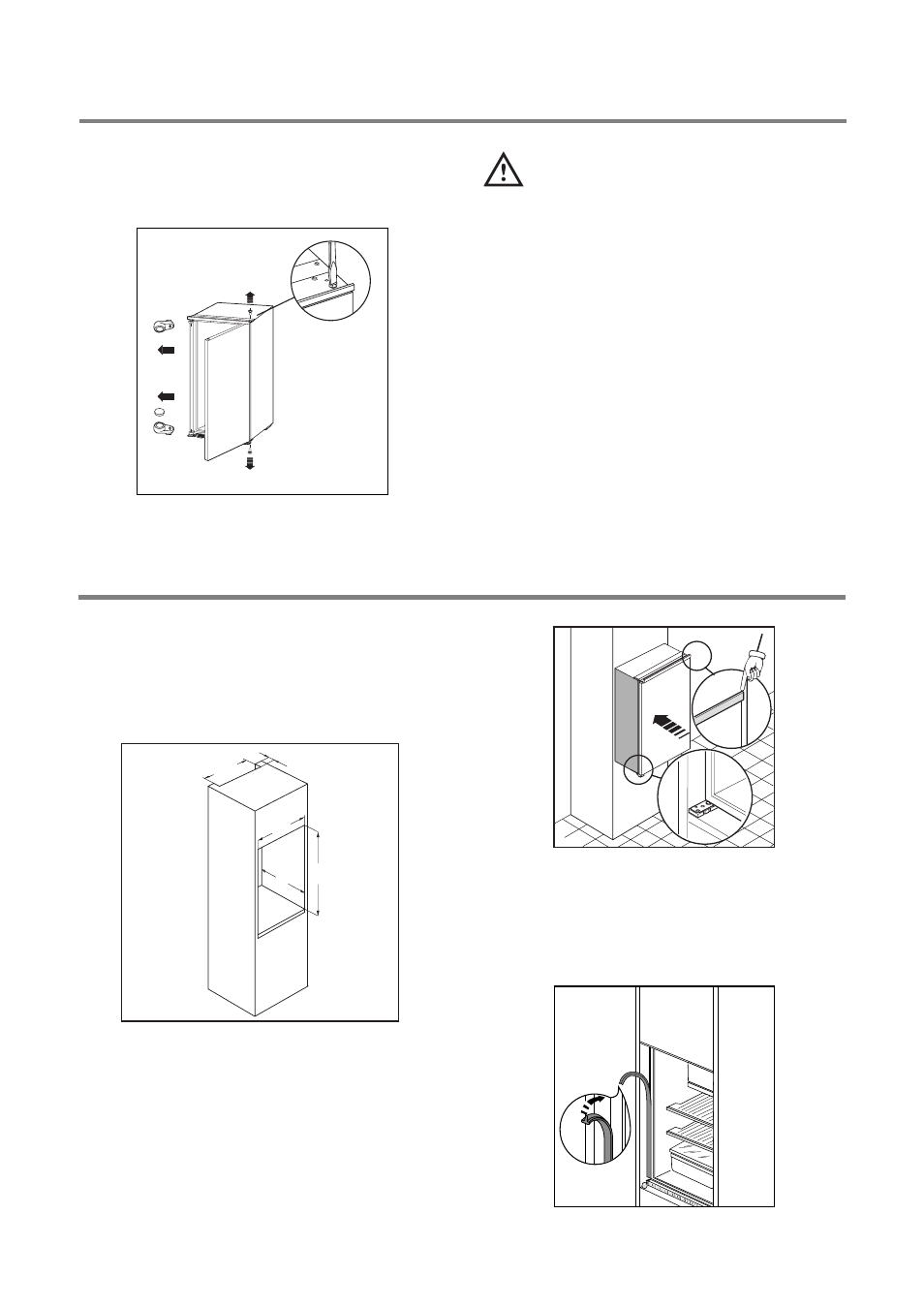

Dimensions of the recess
DRS 615 JE DRS 623 JE - DRS 723 JE
Height of housing (1) 880 1225 mm
Depth of housing (2) 550 550 mm
Width of housing (3) 560 560 mm
It is necessary that the niche is provided with a
conduct of ventilation having the following
dimensions:
Depth 50 mm
Width 540 mm
Building-in
PR0
540
50
3
2
1
Door reversal
The applianceÕs door has been locked in position for
transport by means of pins on both sides. According
to the door opening direction, remove relevant pins
at the top and at the bottom. Warning!
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.
B
A
D022
1
2
1. Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the
lower hinge is in line with the surface of the unit (2).
D132
2. Apply joint the sealing strip as shown in figure.
