10. Screw in three 60-watt (maximum)
candelabra base bulbs into the light
fitter sockets (Figure 18). Remove and
retain the nut and rubber washer from
the light fitter threaded nipple. Place
the lower glass over the threaded
nipple and secure in place using the
rubber washer and nut. Place the
decorative cap over the threaded
nipple, then screw on the finial nut and
securely tighten.
11. Your ceiling fan is now installed and
wired to be controlled by your remote
control system.
8. Connect the white wire from the light
fitter to the white wire from the motor
(Figure 16). Connect the black wire
from the light fitter to the black wire
from the motor. Make sure connectors
are fully engaged.
9. Position the adapter/light fitter assem-
bly over the adapter plate and secure
using three 8-32 x 12mm pan head
screws (Figure 17).
BLACK
WIRE
WHITE
WIRE
LIGHT FITTER
ADAPTER
PLATE
ADAPTER

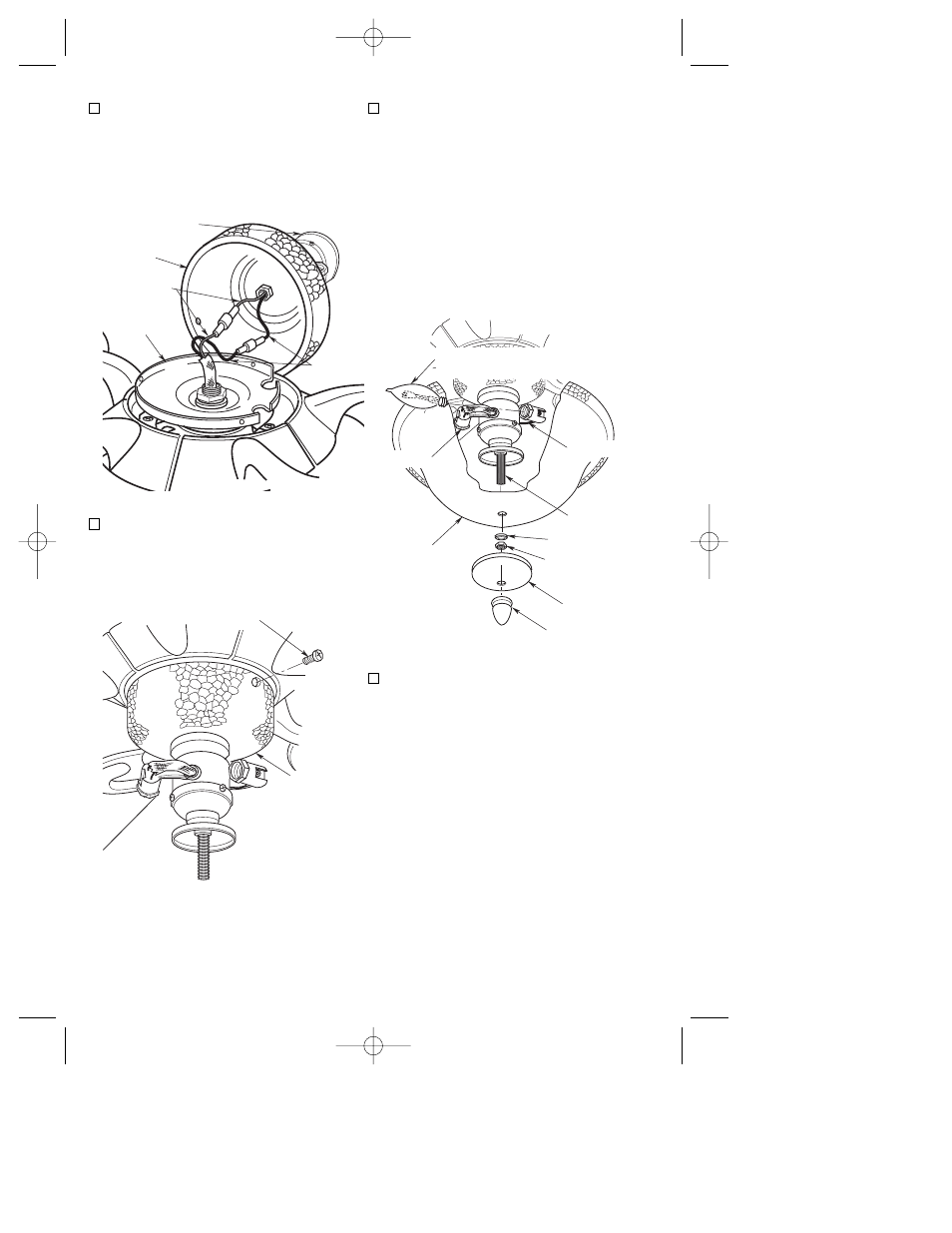

Figure 16
11
8-32 x 12mm PAN HEAD
SCREW (3)
ADAPTER/
LIGHT FITTE
ASSEMBLY
Figure 17
DECORATIVE
CAP
FINIAL NUT
THREADED
NIPPLE
LOWER GLASS
LIGHT FITTER
NUT
RUBBER WASHER
SOCKET
60-WATTCANDELABRA
BASE BULB (3)
Figure 18
