1 – Introduction
This document describes the procedures for performance of the testing cycles on the 3rd generation Electronic
Programmer for PL3 digit+programs free-standing 45cm dishwashers.
2 – Test cycle
2.1 – Cycle Access Procedure
Before recalling the test cycle, check that the dishwasher is in starting condition with the tank empty. To do this, simply
access the “Program Abort” procedure described in point 2.3.
To recall the test cycle, proceed as follows:
a) With the door closed, keep the Start/Pause key (T1) depressed. LED L1 starts flashing; keep the key
depressed for about 30 seconds, until LED L1 remains constantly on (beeper sounds).
b) Within 3”, release the Start/Stop key (T1) and press it again to confirm that you wish to perform the test cycle.
The message
C0
appears on the display to confirm this operation.
If the procedure is not carried out correctly, the test program is not selected and the procedure has to be repeated from
point (a)
2.2) Exiting the test cycle
To exit the test cycle, simply switch the dishwasher off. This means that if the dishwasher is switched off during the test
cycle, all memory of it is lost and the “Access Procedure” has to be repeated to reactivate it.
2.3) Aborting the program
To abort the program and bring the appliance to a known starting status for performance of the test cycle, proceed as
follows:
a) With the door closed, keep the Start/Pause key (T1) depressed until the message
P0
appears on the
display. The appliance automatically starts the pump-out, after which the end of cycle message appears:
End

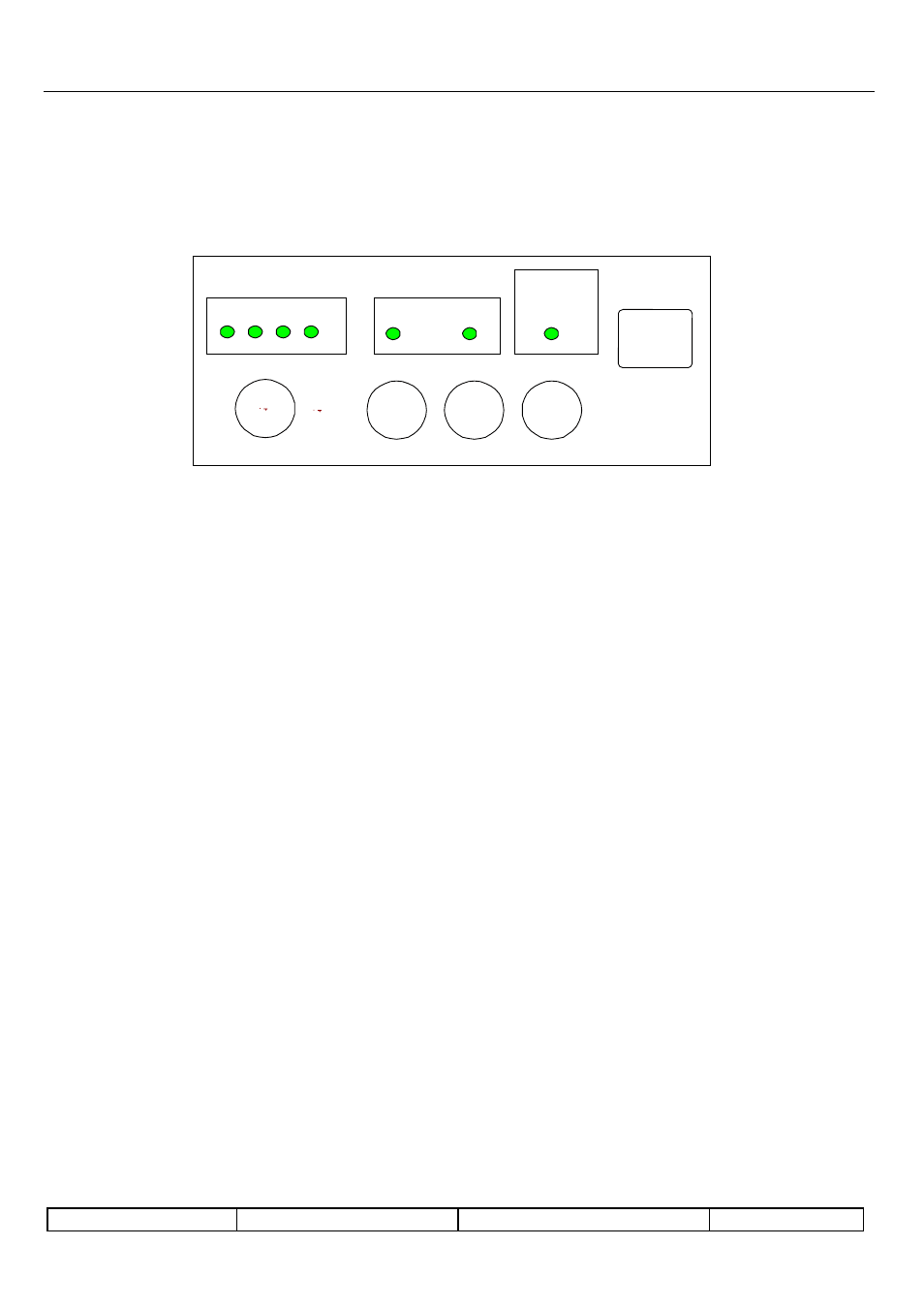

T1 T2 T3
888
Display
T4
Program LEDs Option LEDs
Start /
Pause
