- 5 -

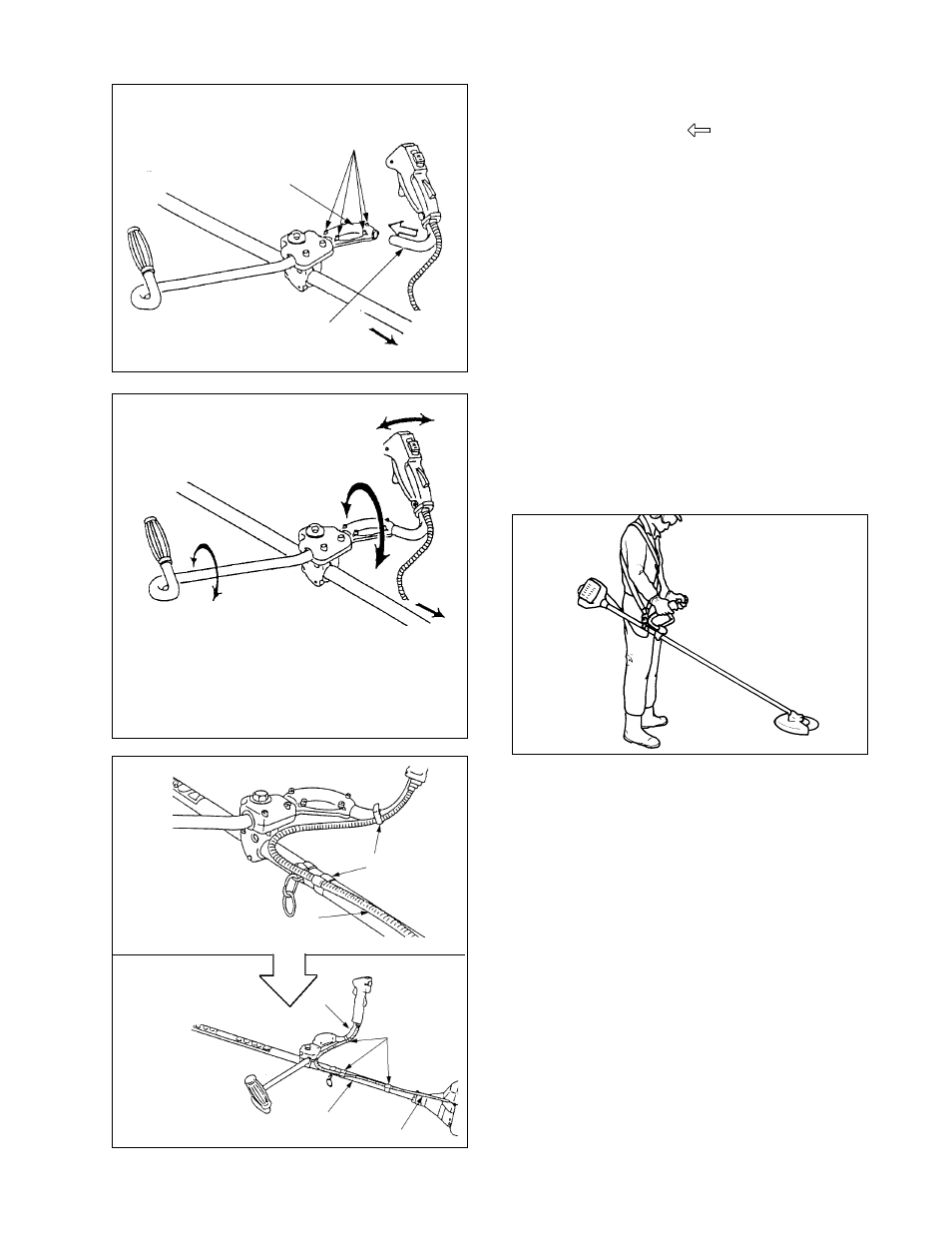

To eliminate loosening of throttle wire fix it to shaft
tube (2 places) and to right hand U-handle (1 place)
with wire fixing clips.
1
2 1. Wire fixing clip
2. Throttle wire
1. Right hand
U-handle
2. Wire fixing clip
3. Shaft tube
4. Throttle wire
1
2
3
4
Adjust each inclination of right and left handles to
adequate position (easy to operate) and tighten firmly
handle assembling bolt (8 mm) and 4 right handle
assembling bolts.
Determine “Easy to operate” position seeing illustration
below.
1. Adjustment of right handle inclination (left/right)
2. Adjustment of right handle inclination (forward/
backward)
3. Adjustment of left handle inclination (forward/
backward)
4. To engine
1
2
3
4
Loosen 4 right handle assembling bolts and insert right
hand U-handle into right handle assembling bracket.
(toward direction of arrow )
Fix the right hand U-handle by tightening 4 right handle
assembling bolts lightly.
1. Right handle assembling bolt
2. Right handle assembling bracket
3. Right hand U-handle
4. To engine
1
2
3
4
