10
EN 2 / INSTALLING YOUR DISHWASHER

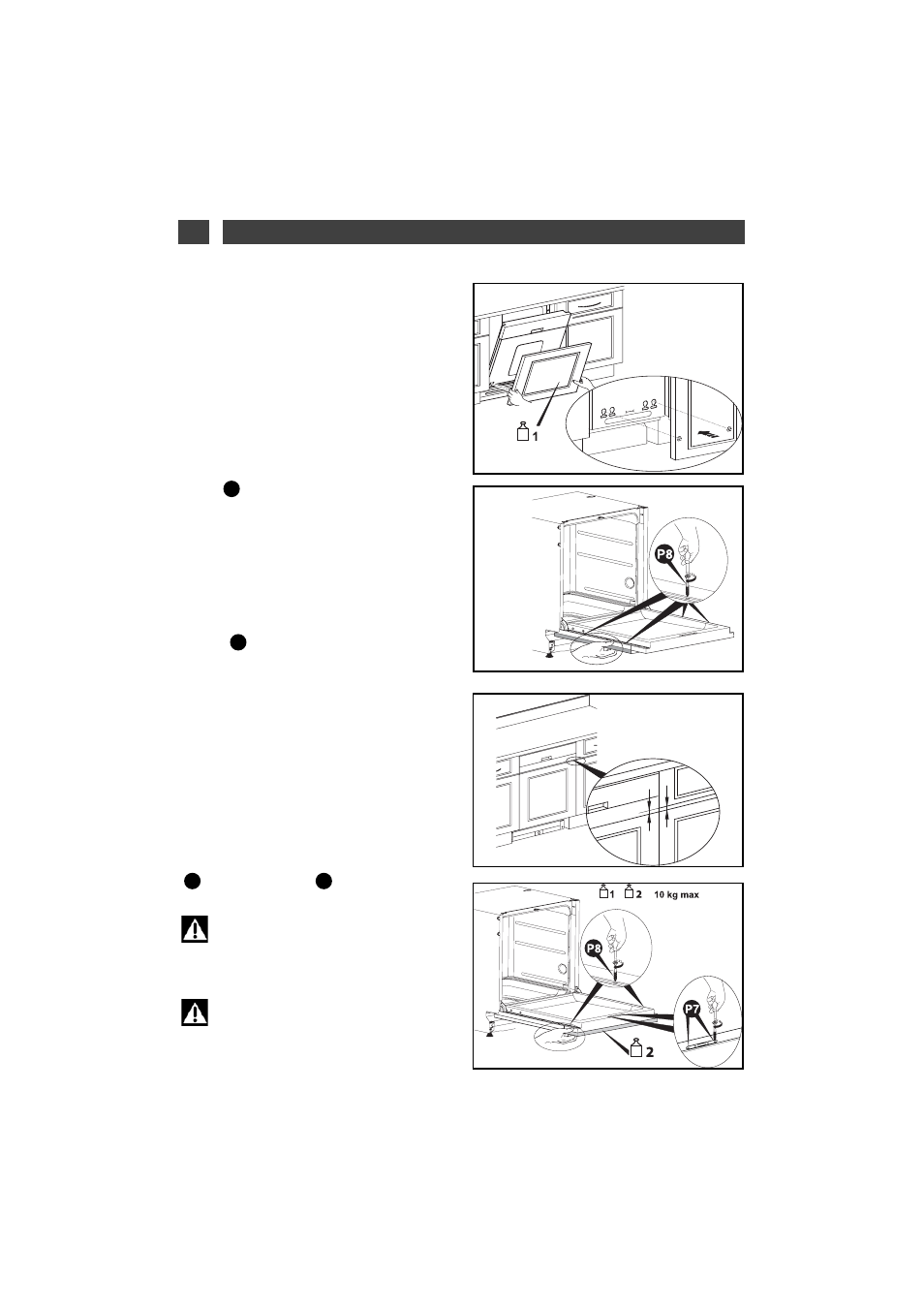

FITTING THE DOOR PANEL
(Cladding with 2 elements)
- To fit the first section, please refer to the pre-
vious chapter “FITTING THE DOOR PANEL
(Cladding with a single panel) (Figs. 5.1 et 5.2).
- Position your door panel by engaging the 2
screws in the holes in the dishwasher’s door
(Fig. 6.2 A)
- If there is any difficulty screwing, move the
screw 22
mm.
- Place the wood panel flat against the door (Fig.
6.2 A).
- Open the dishwasher’s door while holding
the panel flat up against the door. Centre the
wood panel at the sides with respect to the
control panel, if necessary. Insert the 4
screws
(Fig. 6.2 A).
- Measure the distance between the drawer
and the door panel on the adjacent unit (Fig.
6.3).
- Place the false drawer front taking into
account the distance just measured (using a
wedge with a good thickness).
- Open the dishwasher’s door while holding
the false drawer front up against the door.
Centre the wood panel at the sides with res-
pect to the door panel. Insert the 2 screws
and the 2 screws (Fig. 6.4).
Warning :
If the wood panel is very hard, ensure
that you make an initial hole before screwing
it on.
Warning :
Then total weight of the door panel and
the false drawer front must not exceed 10kg
maximum.
P8 P7
P8
P6
Fig. 6.1 A
Fig. 6.2 A
=
=
Fig.6.3
+ =
Fig.6.4
