DECALS
4

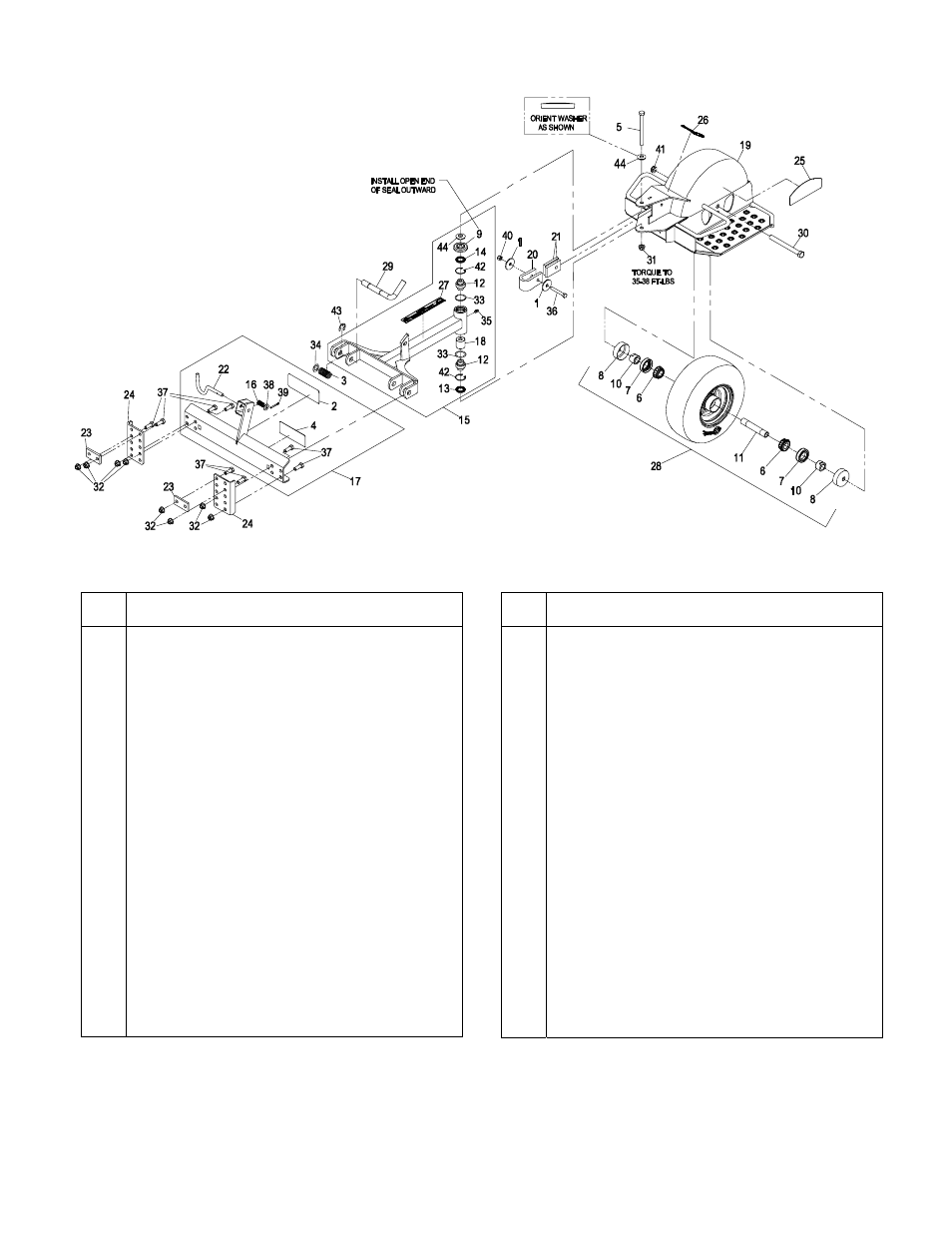

Item
Part No.
Description
Qty.
1 1-213069 Washer, Special ................................... 2
2V 1-303517 Decal, Belt Drive................................... 2
3 1-373054 Spring, Hitch Release ........................... 2
4V 1-403143 Decal, Sulky Warning ........................... 2
5 323-38 Screw, HH 3/8-16 x 4 3/4...................... 1
6 1-633585 Bearing, Cone Tapered ........................ 2
7 103-0063 Seal, Double Lip ................................... 2
8 103-2768 Guard, Seal .......................................... 2
9 103-2916 Guard, Top ........................................... 1
10 103-3051 Spacer, Nut .......................................... 2
11 103-3157 Axle, Caster.......................................... 1
12 103-3504 Bearing, Spherical ................................ 2
13 103-3505 Seal, Double Lip ................................... 1
14 103-3506 Seal, Single Lip..................................... 1
15 — 103-9589 Kit, Pull Arm W/Brgs & Decal................ 1
16 103-6643 Spring, Lock Pin ................................... 1
17Q 103-6646 Asm, Frame Pull W/Decals ................... 1
18 103-1361 Spacer, Hydro Control LH..................... 1
19 103-9590 Asm, Sulky Frame W/Decals ................ 1
20 103-6652 Stop, Rotation....................................... 1
21 103-6654 Pad, Stop ............................................. 2
22 103-6656 Pin, Latch ............................................. 1
Item
Part No.
Description
Qty.
23 103-6663 Plate, Back-Up ..................................... 2
24 103-6675-01 Plate, Adapter ...................................... 2
25 109-1117 Decal.................................................... 2
26 103-8845 Decal, Exmark...................................... 1
27 103-9141 Decal, Sulky ......................................... 1
28O 103-9591 Asm, Caster Wheel .............................. 1
29 103-9169 Pin, Lift Arm ......................................... 2
30 103-9508 Screw, HH 1/2-13 X 5 1/4..................... 1
31 32128-21 Nut, Hex Flg-Side Lock 3/8-16 ............. 1
32 104-8301 Nut, Nyloc 3/8-16 Flg............................ 8
33 106-7159 O-Ring ................................................. 2
34 107-3041 Washer ................................................ 2
35 302-19 Zerk, 1/4-28 Str .................................... 1
36 322-11 Screw, HH 5/16-18 X 2 1/4................... 1
37 323-7 Screw, HH 3/8-16 X 1 1/4..................... 8
38 3256-24 Washer, 3/8 SAE.................................. 1
39 3272-11 Pin, Cotter 1/8 X 1................................ 1
40 3296-29 Nut, Nyloc 5/16-18 ............................... 1
41 3296-45 Nut, Nyloc 1/2-13 ................................. 1
42 32120-10 Ring, Retaining .................................... 2
43 32120-19 E-Ring.................................................. 2
44 98-5975 Washer, Spring Disc 3/8....................... 1
Q Does not include screw item # 37.
O Includes screw item #30 and nut item #41.
V One of each decal is shipped loose to be placed on Turf Tracer and Viking Hydro mowers only.
— Includes items 5, 31, & 44.
For Operator’s over 250 lbs, it is recommended to use pneumatic tire assembly, P/N 103-3798
