How to assemble – Eureka 4750A User Manual
Page 8
8
FIG. 1
FIG. 2
FIG. 16
(CONTINUED)
ENGLISH
How To Assemble
CAUTION: Assemble the cleaner completely before using.
CAUTION: Moving parts, make sure the on/off switch is in the off
position and stay clear of the brushroll when plugging in.
NOTE: Features may vary by model yet all parts assemble the same.
Remove all components from the carton and check that all of the parts
are available from the parts list on page 6 (or see the quick start guide).
Have a Phillips screwdriver available (one is NOT provided in the package)

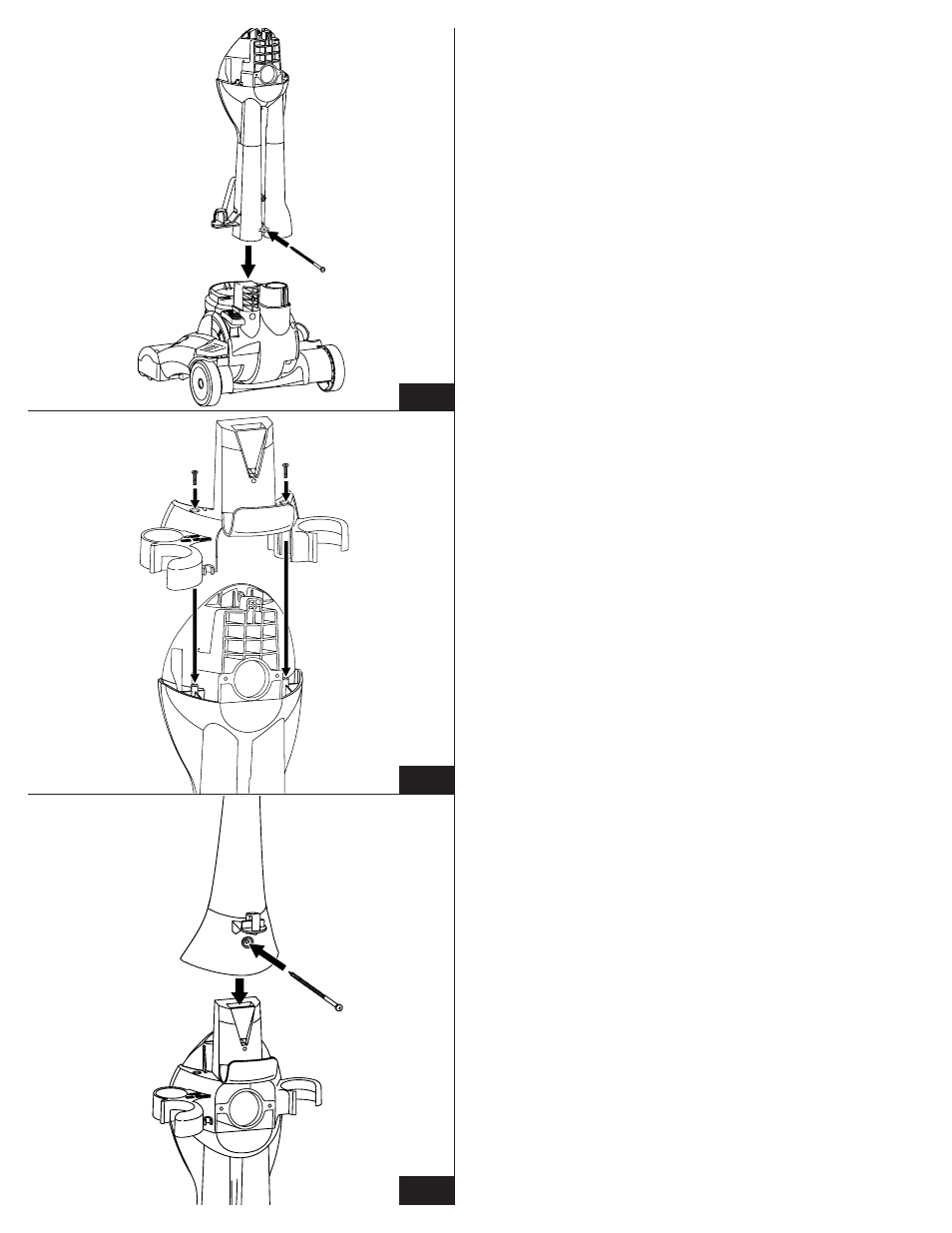

Step 1: (FIG. 1) Assemble the rear housing
●
I
to the base
●
E
by sliding
it on top of the base and attaching to the base using a long screw
provided
●
K2
.
FIG. 3
●
E
●
K2
●
I
●
K1
●
K1
●
H
●
I
●
K2
●
G
●
H
Step 2: (FIG. 2) Attach the tool caddy
●
H
to the top of the rear housing
●
I
by sliding it onto the housing, and then attach using the 2 short
screws
●
K1
provided.
Step 3: (FIG. 3) Attach the handle
●
G
to top of tool caddy
●
H
by sliding it
downward and then securing with a long screw
●
K2
.
