20171-3-0907 Page 8
PROPER INSTALLATION SEQUENCE:
LS-(18, 24, 30)RS
(Figure 1)
1. Place left, rear (#1) log onto left, rear pin on rear log
support.
2. Place right, rear (#2) log onto right, rear pin on rear log
support.
3. Place left, front (#3) log onto two (2) left, front pins on burner
pan.
4. Place right, front (#4) log onto two (2) right, front pins on
burner pan.
5. Insert boss on left, top (#5) log into recess on left side of left,
rear (#1) log and onto left side of left, front (#3) log.
6. Insert boss on right, top (#6) log into recess on right side of
left, front (#3) log.
7. Compare the completed log installation with the appropriate
photo from pages 9 through 11. Review previous steps to make
any necessary adjustments.
8. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 12 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort
Systems, Inc. Application of excess loose material (glowing embers)
may adversely affect performance of the heater. WARNING: All
previously applied loose material must be removed prior to
reapplication.
Replacement Loose Material (glowing embers) Part Number
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are
not properly and firmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with this diagram or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.

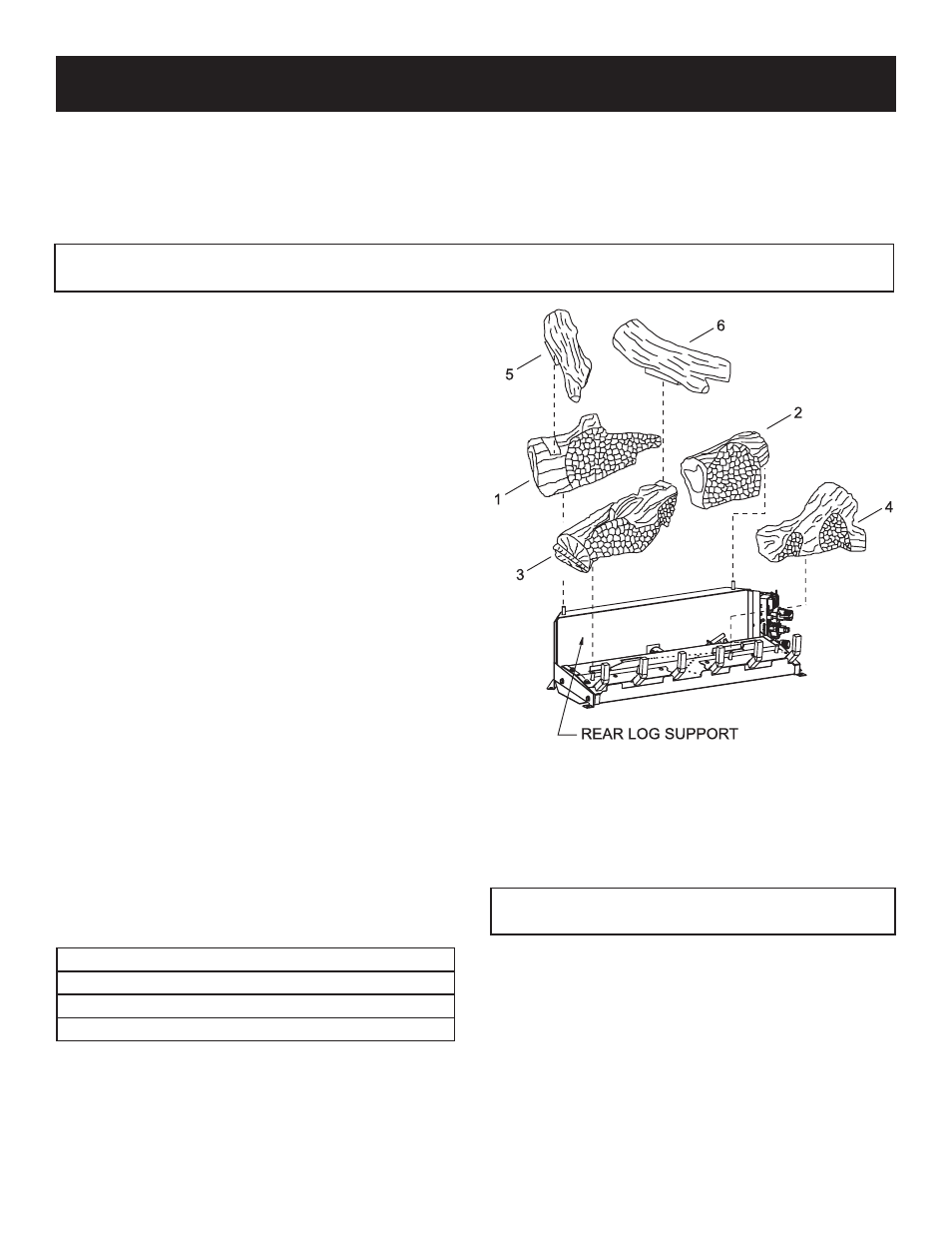

Log Placement
LS-(18, 24, 30)RS Logs
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
LS-18RS 15999
LS-24RS 15970
LS-30RS 15970
Platinum Bright Embers PE-20-1
SASSAFRAS LOG PLACEMENT
