SAF-HOLLAND XL-FW445-01 FW0001 Series Fifth Wheel - Manual (Page 2)

2 XL-FW445-01

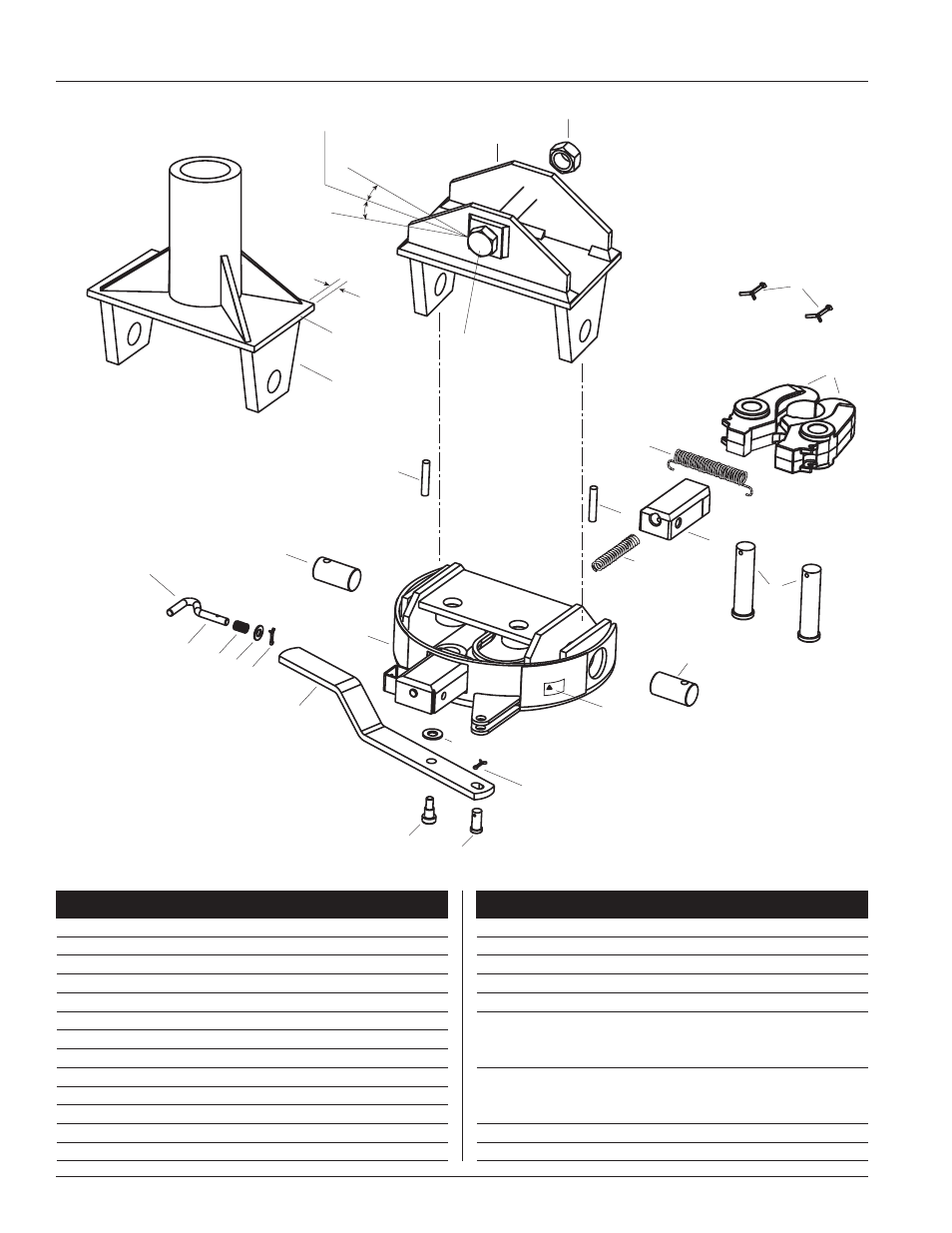

FW0001 and FW0002 SERIES FIFTH WHEEL PARTS BREAKDOWN
7
8
6
7
9
10
12
11
17
15
14
16
12
8
22
3
5
4
2
1
21
20
19
18
Safety lock
handle
Min. recommended
rotation of the gooseneck tube
10˚
10˚
Optional double
acting installation
13
1/2˝
to 1˝
Round gooseneck
tube* shown
(can be square
or rectangular)
*Not included
(4) gussets (.174 min.
thickness) must be
furnished, located, and
welded by the customer.
6 x 10-3/4˝
rectangle
ITEM
NO. PART NO. QTY. DESCRIPTION
1 XB-BFW0172 1 Jaw coupling
2 XB-CTP-014-59 2 Cotter pin, 3 /
16
˝ dia. x 1 1 /
2
˝
3 XB-CLP-052-25 2 Clevis pin, 1˝ dia. x 4˝
4 XB-SPG-020-21 1 Extension spring
5 XB-BFW0170-01 1 Locking block
6 XB-SPG-020-08 1 Compression spring
7 BFW0173 2 Clevis pin, 1 1 / 4 ˝ dia.
8 XB-GP-052-21 2 Groove pin 3 / 8 ˝ dia. x 2˝
9 XB-BFW0118 1 Safety lock handle
10 XB-SPG-020-06 1 Compression spring
11 XB-PW-016-03 1 Flat washer
12 XB-CTP-014-51 2 Cotter pin, 1 /
8
˝ dia. x 3 /
4
˝
13 BFW0100 1 Fifth wheel housing S/A
ITEM
NO. PART NO. QTY. DESCRIPTION
14 XB-CLP-052-26 1 Clevis pin, 1 /
2
˝ dia. x 1 1 /
16
˝
15 XB-SHS-007-02 1 Shoulder screw, 1 /
2
˝ dia. x 1 /
2
˝
16 XB-PW-016-17 1 Flat washer, 1 1 / 16 ˝ O.D.
17 BFW0122 1 Trip lever
18 BFW0101 1 Attaching plate S/A
19 BFW0104-35 1 Swivel attaching plate S/A, 3 1 / 2 ˝
BFW0104-40 1 Swivel attaching plate S/A, 4˝
BFW0104-45 1 Swivel attaching plate S/A, 4 1 / 2 ˝
20 XB-SP0050-73 1 Hex hd. bolt, 1-14 x 6 (BFW0104-35)
XB-SP0050-97 1 Hex hd. bolt, 1-14 x 6 1 / 2 (BFW0104-40)
XB-HHC-050-52 1 Hex hd. bolt, 1-14 x 7 (BFW0104-45)
21 XB-SLN-012-46 1 Hex, self-locking nut, 1-14
22 XB-BFW0175 1 Warning decal
