1. Position tractor and trailer in a straight line on level ground.
2. Lock the trailer brakes.
The trailer must be stopped and the trailer brakes
locked to prevent damage to the tractor or trailer
by uncontrolled sliding of the fifth wheel.
3. Release slide locking
plungers.
4. Visually check that both
plungers are fully extended,
as shown in Figure 4A.
NOTE: If the plungers do not
release, using low gear on the
landing gear, raise the trailer
to relieve pressure on the
plungers. This will allow the
fifth wheel to slide easier.
5. Slowly drive the tractor forward or backward to position
the fifth wheel.
6. Re-engage the slide
locking plungers.
Verify that both
plungers have fully
engaged.
NOTE: Retract landing
gear if lowered.
UNLOCK LOCK
UNLOCK LOCK
14 XL-FW503 Rev B
OPERATING INSTRUCTIONS
continued
Do not operate the vehicle if the plungers are not fully
engaged and landing gear fully retracted, as damage
to the tractor, trailer and landing gear may occur.

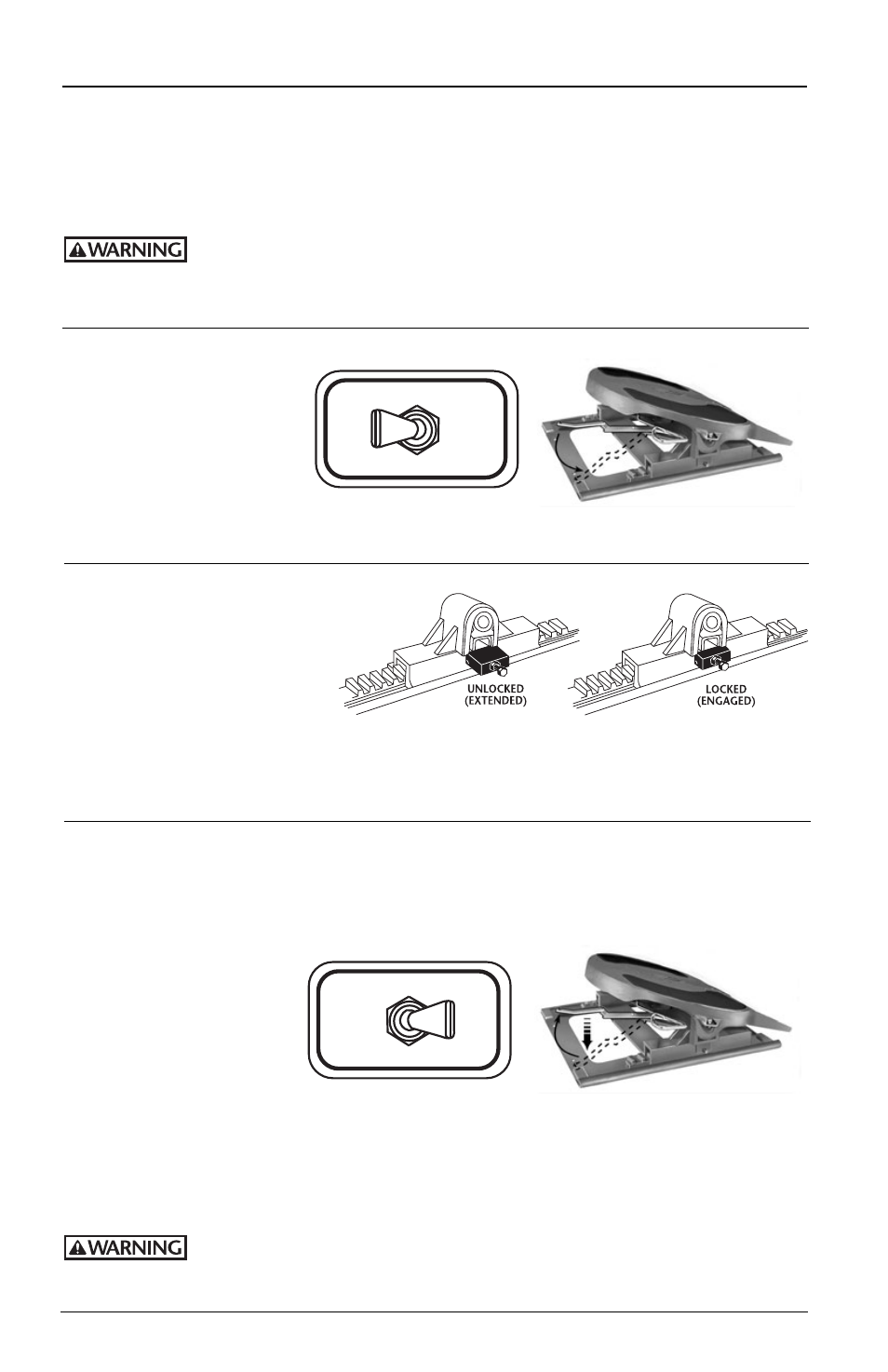

FIGURE 4A FIGURE 4B
Trip the release lever by tapping
it downward as shown and
allowing it to spring back.
Move cab switch
to lock position.
AIR OPERATED MANUAL SLIDE
AIR OPERATED MANUAL SLIDE
Move cab switch
to unlock position.
Pull release lever,
lift up and hook in place.
Fifth Wheel Slide Adjustment
