All installations and services must be performed by qualified service personnel.
19

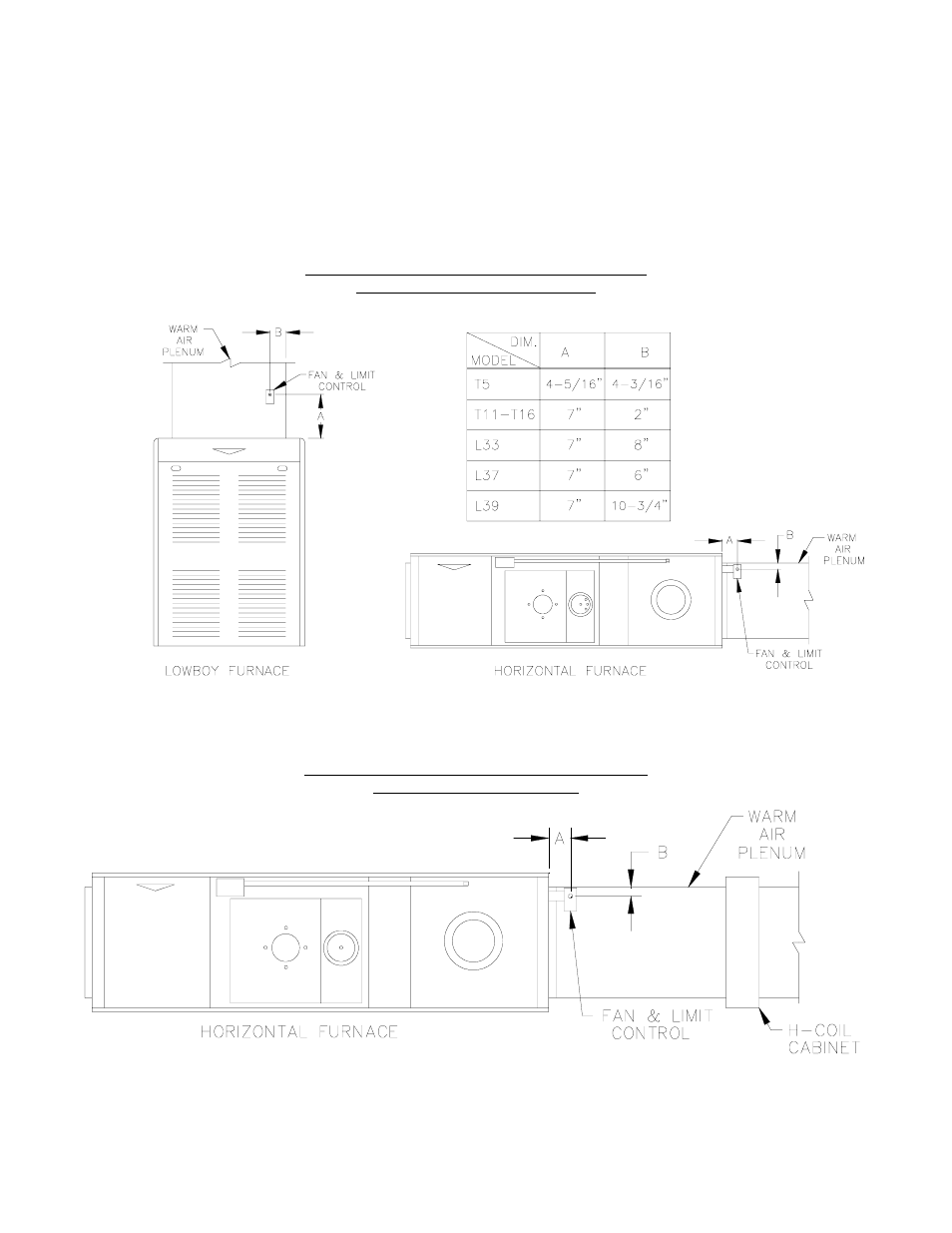

N. FAN AND LIMIT POSITION AND LOCATION
Power gas furnace models PGL5 through PGL20 are shipped with the fan and limit control pre-mounted in the
vestibule. Should the installer prefer to mount the fan and limit control in the supply plenum, the installer must
supply additional wire comparable to the original wire size and type which must be routed through either rigid, EMT
or flexible metal conduit to the mounting location as described below.
LOCATION FOR LOWBOYS & HORIZONTALS
WITHOUT AIR CONDITIONING:
FAN & LIMIT LOCATION FOR HORIZONTALS
WITH AIR CONDITIONING:
