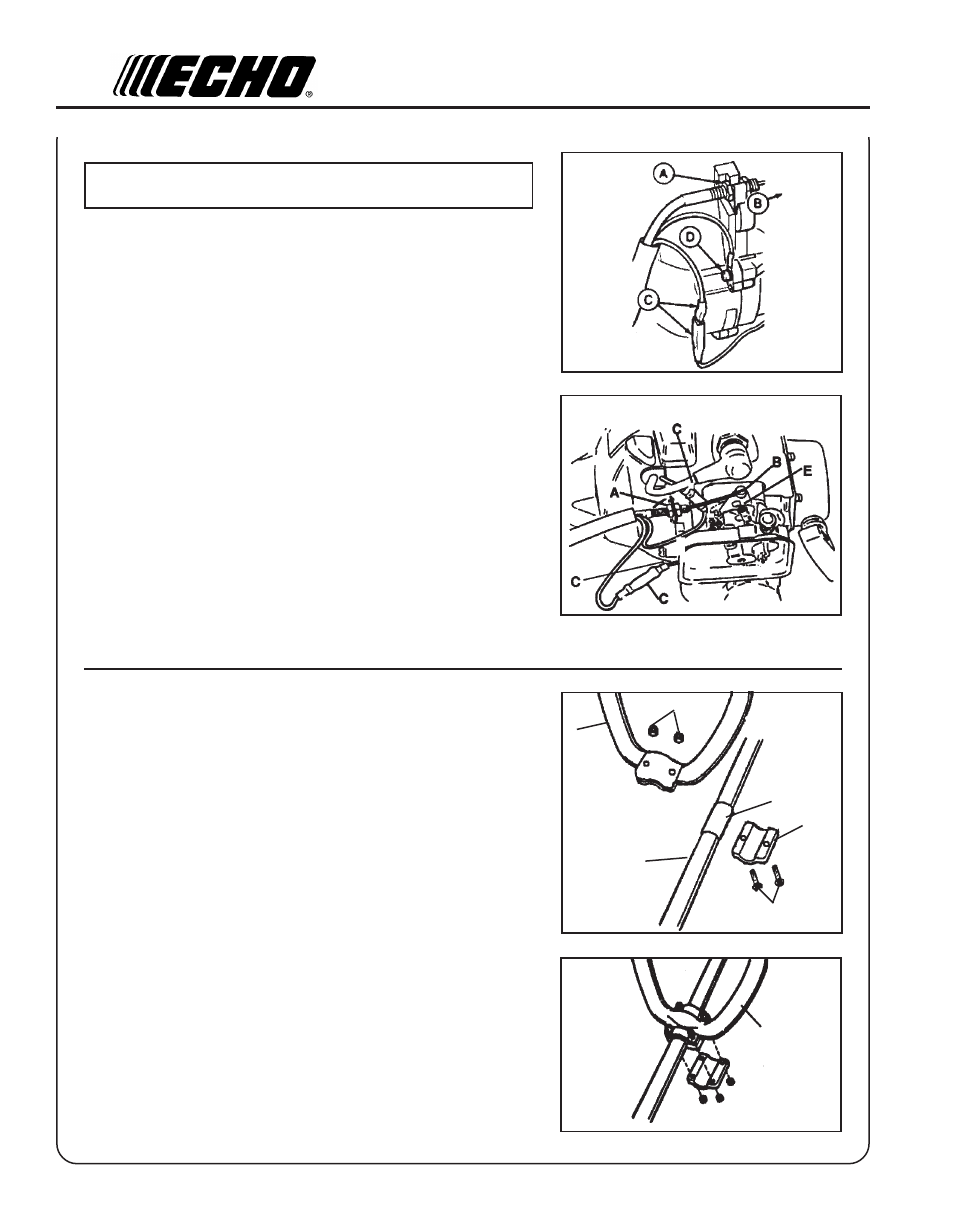

FRONT
HANDLE
PE-2400
PE-3100
NOTE
Steps 5, 6 & 7 required for PE-2400 and PE-3100 only.
5. Connect ignition leads (C).
6. (PE-2400) Secure ground lead under screw (D) on housing.
7. Install air filter and cover.
FRONT HANDLE
Tools Required:Cross-Head Screwdriver
(PE-2000)
1.
Assemble loop handle (A) and bottom bracket (B) loosely using
screws (C) and nuts (D) to loop handle collar (E), located on drive
shaft (F).
2. Position handle in comfortable operating position and tighten
screws (C).
(PE-2400, 3100)
1.
Assemble front handle and bracket loosely to drive shaft.
2. Position front handle in comfortable operating position and tighten
screws.
PE-2000
LOOP
HANDLE
A
B
C
D
E
F
