Elk -SL1 User Manual

Elk-sl1, Strobe light

SPECIFICATIONS

ELK-SL1

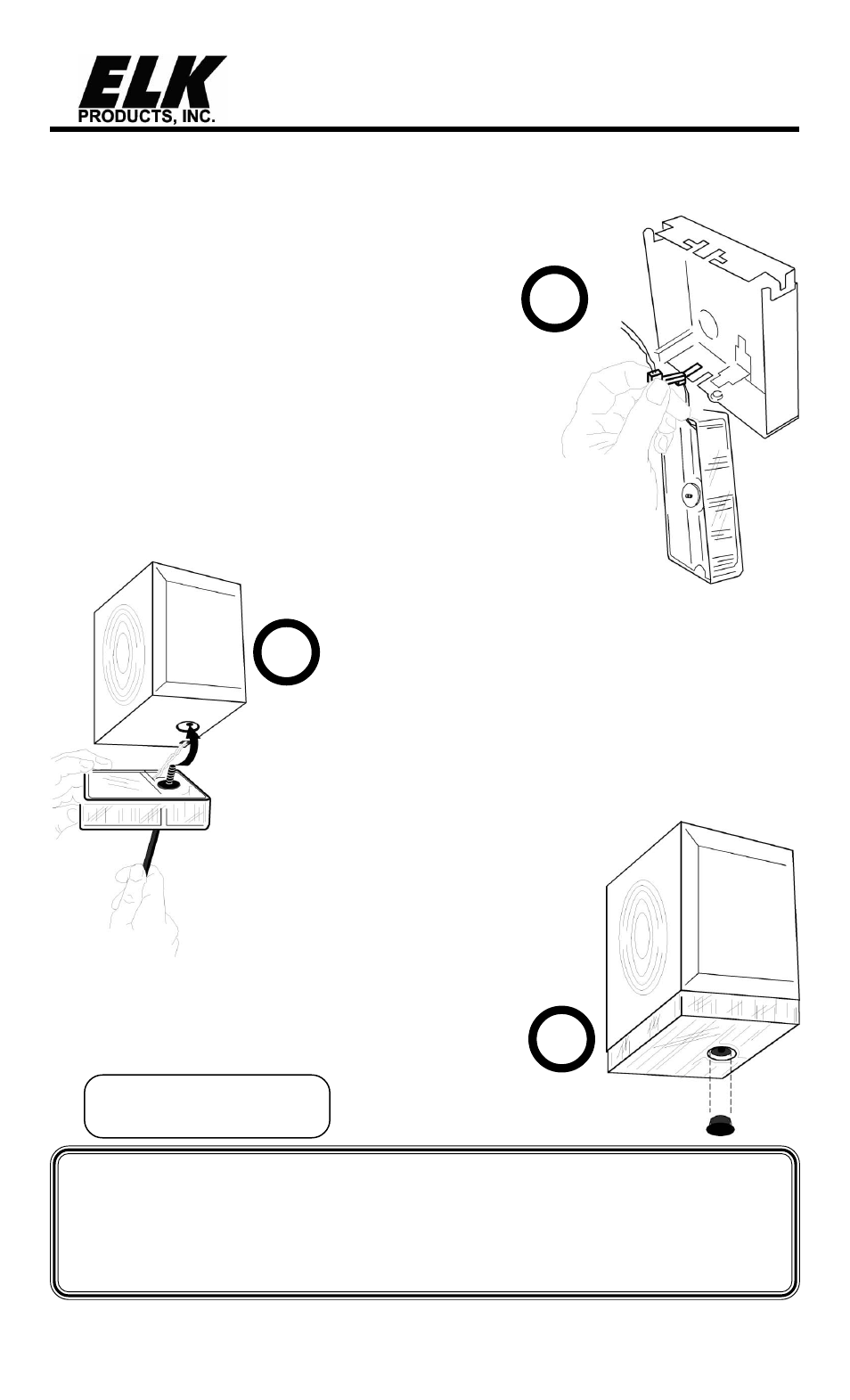

STROBE INSTALLATION FOR ELK-1RT OR ELK-150RT

STAINLESS STEEL BOX

ALSO FITS ELK-1EL, ELK-1TB & ELK-1BOX

INSTALL THE SUPPLIED BLACK PLUG-A-HOLE
BY SIMPLY SNAPPING INTO THE HOLE.

WITH THE STROBE UNIT DANGLING BY IT’S WIRES, REPLACE THE FRONT COVER
BUT DISCARD THE 1/4-20 HEX HEAD SCREW THAT IS NORMALLY USED TO HOLD
THE COVER IN PLACE.

USE A 3/16 HEX (ALLEN) WRENCH TO ENGAGE THE HEX SOCKET SCREW SUP-
PLIED WITH THE STROBE UNIT (DO NOT REMOVE THE RETAINING WASHER).

PRESS UPWARD ON THE STROBE AND FRONT COVER TO ALLOW ENGAGEMENT
OF THE SCREW. INSURE THAT ANY SURPLUS WIRE IS WITHIN THE STROBE CAVITY
AND NOT PINCHED BETWEEN THE STROBE AND FRONT COVER.
