To configure the remaining output channels (2-8), copy the appropriate switch settings from
Tables 1-3. Fixed modes will use either an ON/OFF, OFF/ON, or OFF/OFF combination and
switched modes will always use the OFF/OFF combination.
If you use three audio sources and a source select switch, configure the DIP switches as
shown in Table 3. The Channel C Enable switch must be ON to use the third audio input.
Table 3 Three audio sources and a select switch
DIP
SW1
DIP
SW2
DIP SW6
Channel C
Output Channel
Channel
1
OFF
OFF
ON
A, B, & C
OFF
ON
ON
N/A
ON
OFF
ON
N/A
ON
ON
ON
N/A
4.3. Installation Example
You can mix the audio control and configure each seat differently, as shown in Figure 3.
Channels 5 and 6 are set to Input A, and these seats have a choice. Either they may have a
source select switch to allow them to change their channel, or they can remain without a
source select switch and stay on input A.

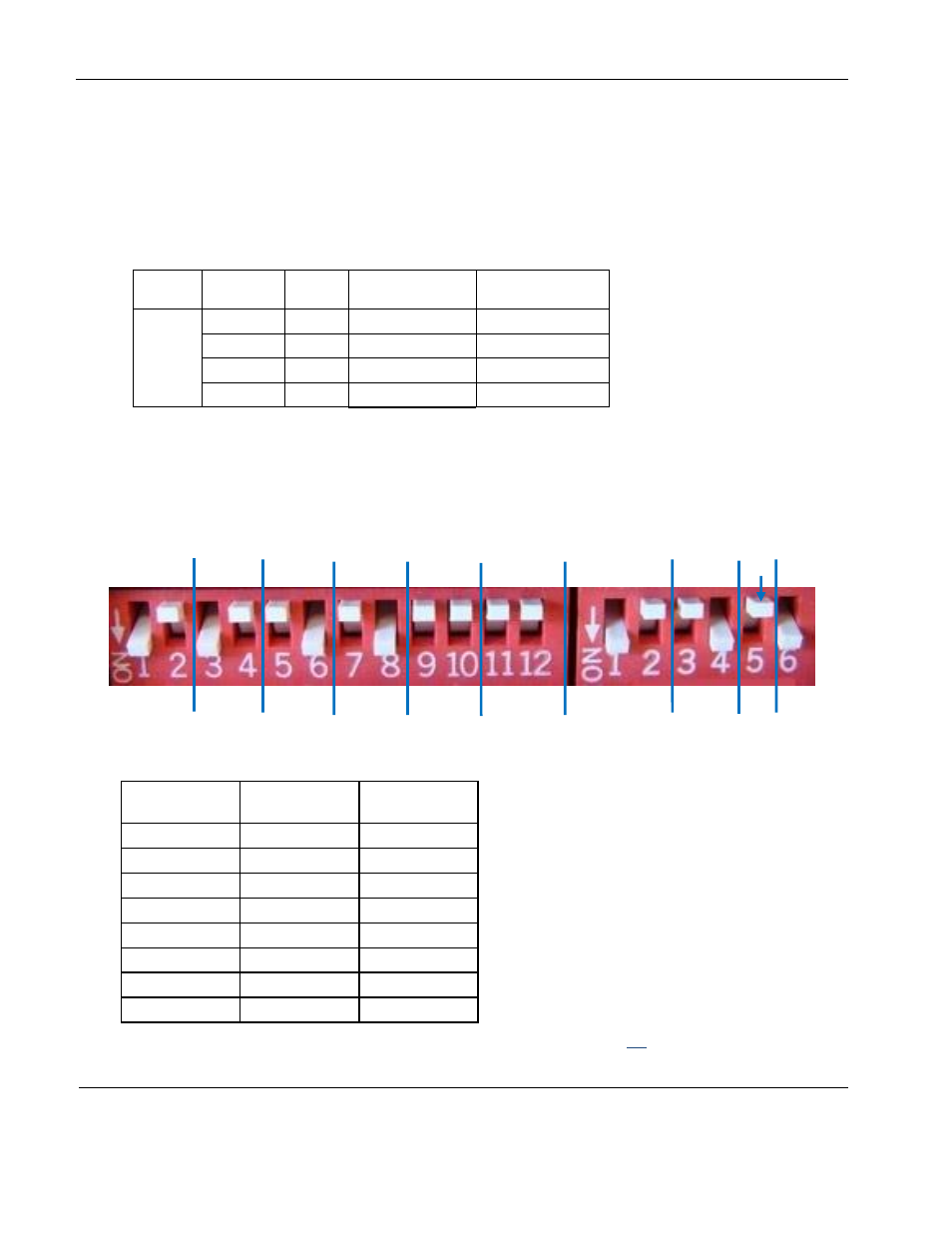

Figure 3 Configuration DIP switch settings
Table 4 DIP switch settings for Figure 3
Output Channel
#
Input Setting
Fixed Mode
Input Setting
Switched Mode
Channel 1
C
N/A
Channel 2
C
N/A
Channel 3
B
N/A
Channel 4
B
N/A
Channel 5
A
A, B, C
Channel 6
A
N/A
Channel 7
C
N/A
Channel 8
B
N/A
Tip: For more configuration examples, see the Appendix on page
The N/A outputs do
not switch the audio
properly
Channels 1, 2, and 7 are set to Input C.
Channels 3, 4, and 8 are set to Input B.
The seats for these six channels do not
have source select switches.
Only channels 5 and 6, which are set to
Input A, can use a source select switch.
This is because the DIP switches
controlling these channels are turned
OFF.
Output
Ch 1
Output
Ch2
Output
Ch3
Output
Ch4
Output
Ch5
Output
Ch6
Output
Ch7
Output
Ch8
5V Power
OFF
Ch C
ENABLED
