Rose Electronics CrystalLink USB 3.0 User Manual
Page 5

5

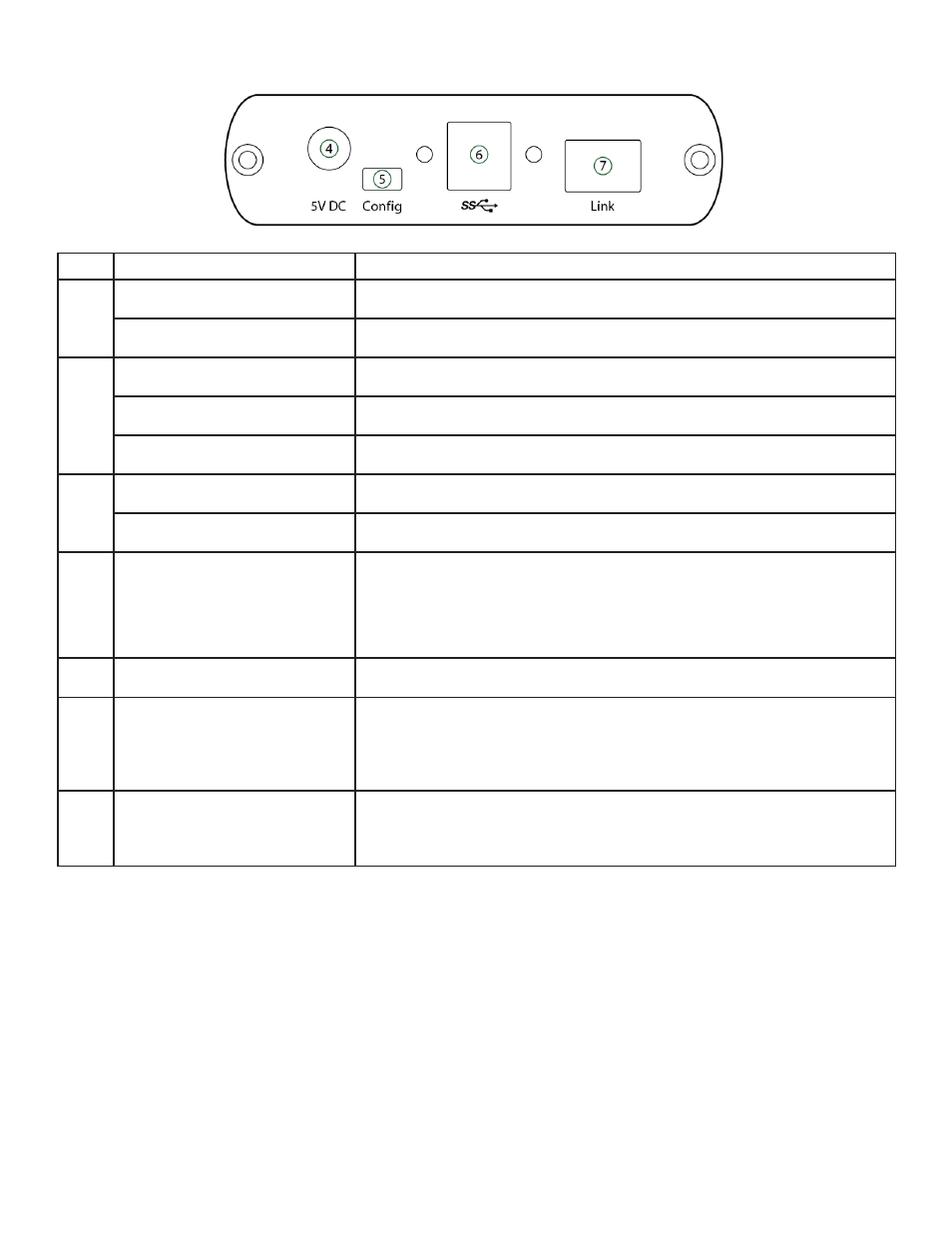

Rear View
ITEM
TYPE
DESCRIPTION
1
Power ON
Unit is powered properly.
Power OFF
Unit is not powered or not powered properly.
2
Status Blinking (1Hz)
Waiting for connection to Receiver.
Status ON
Transmitter and Receiver are linked and operating normally.
Status OFF
Fault detected; power cycle required.
3
Host ON
SuperSpeed Host detected on upstream facing port.
Host OFF
SuperSpeed Host not detected.
4
Power Port (optional)
Not required in normal operation. An optional 5V power supply can be
connected to the Transmitter unit to provide power if the USB port on
the host PC is not capable of delivering sufficient power to the unit.
5
Configuration Port
Reserved for manufacturer use.
6
USB 3.0 Type B port
Used to connect the Transmitter unit to the host computer. Port accepts
locking or non-locking USB 3.0 Type B connectors.
7
Link Port (Dup Transmitter LC)
Extension link Dup Transmitter LC fiber optic transceiver port.
