Rose Electronics CrystalLink Audio - Manual (Page 2)

Perform the following steps to install
the CrystalLink CAT5 Audio Extender
1- Connect the Local unit’s Mic Out and Line In ports to the
corresponding ports on your PC or audio source using a 3.5mm
male to male audio cable.
2- Connect a Microphone to the Remote unit’s Mic Input port
and a set of speakers to the Remote unit’s Line Out port.
3- Connect the local unit to the remote unit with up to 1,000 feet
(300 meters) of CAT5 cable.
4- Connect the power adapter to the local unit’s +9VDC power jack
and a power source
On the bottom of the remote unit
there is a microphone gain control
adjustment. Turning the adjustment
potentiometer will increase the
microphone gain from 0 to +15dB..
Features
 Extend the distance of stereo audio and a microphone up to 1,000 feet
(300 meter) from your PC or audio source over CAT5 cable.
 Remote unit obtains its power via CAT5 cable from the local unit.
 Audio Out supports multimedia speakers, headphones or earphones.
 Mic In supports both condenser and dynamic microphone.
 Built-in microphone preamplifier.
 Microphone gain adjustment
Specifications
Connectors
Audio / Mic – 3.5mm
Link – RJ45F
Power –
Frequency Response 10 Hz – 25KHz / -3dB (1Vp-p)
Indicators Power indicator on the remote unit
Audio In impedance 10k Ohms
Audio Input level 1.8Vp-p
Mic Input level 0.5Vp-p
MAX. Mic gain 0 to +15dB
Cable Distance 1,000 feet (300 m) Max.
Power Adapter 120V 60Hz / 9VDC 300mA
Weight Local unit – 2.29 oz / 65 g
Remote unit – 2.32 oz / 66 g
Dimensions Length Width Height
3.6 In/92mm 1.34 In/34mm 0.87 In/22mm

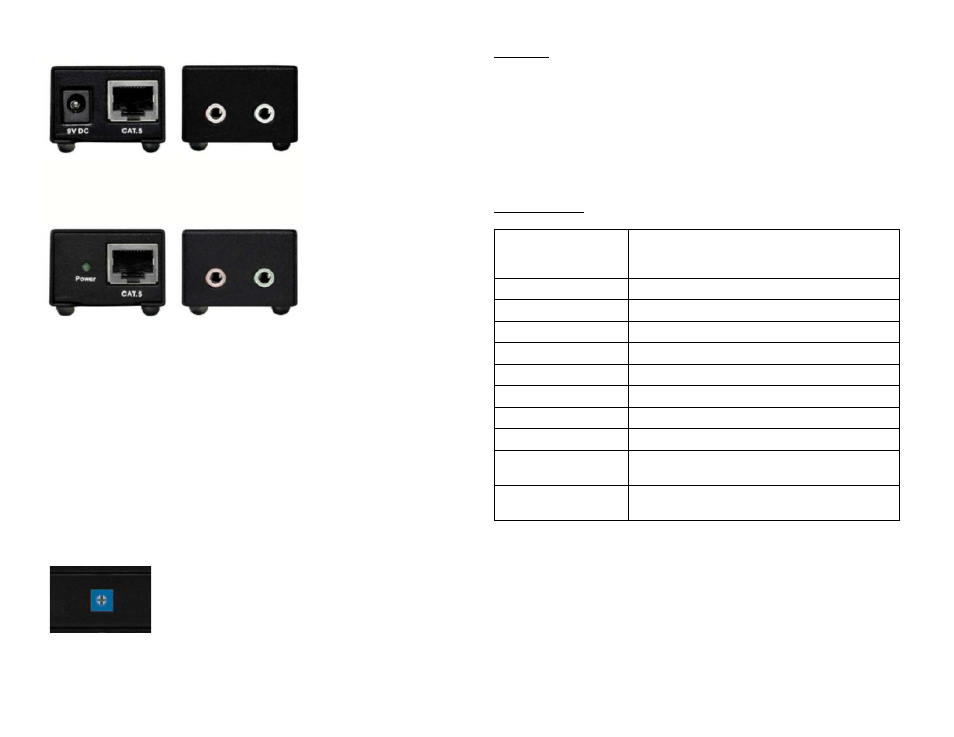

LOCAL UNIT
REMOTE UNIT
MIC LINE
OUT IN
MIC LINE
IN OUT
