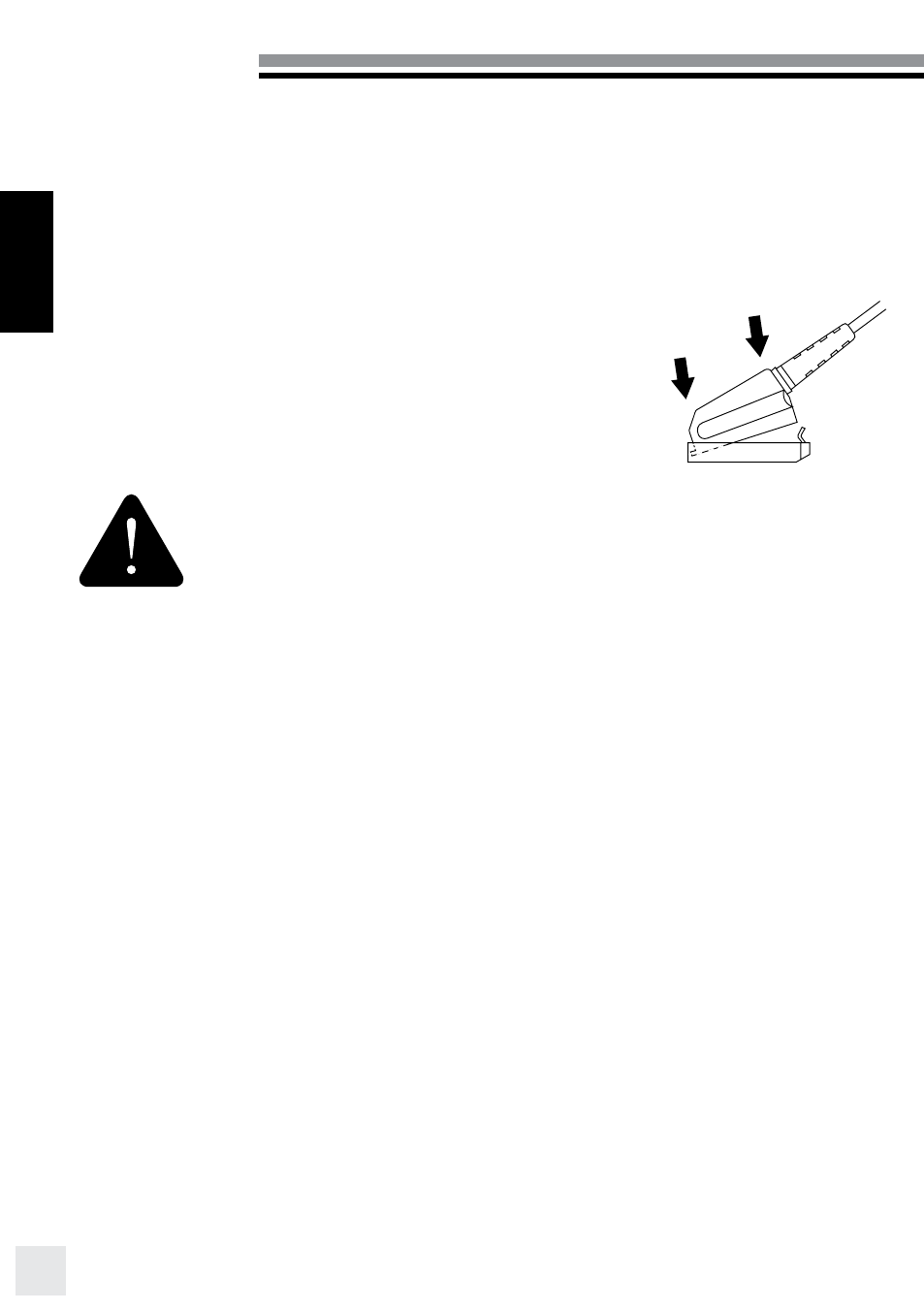

BEfORE yOU START

Ensure that the power pack is

switched OFF, before connecting the ZOOm Head.

Ensure that the ZOOM Head is in a workable condition. Do not use the ZOOM Head if

the connector, cable, flash tube, fan or the housing show any kind of damage.

Connect the flash head connector to the power pack.

Only correct fitted flash cable connections are secured against

arching.

Check all connections again; and than switch on the unit.

ATTENTION

Always switch off the power pack before connecting or

disconnecting flashheads!

The ambient temperature whilst the unit is in use: min. -20°C

(-4°F) up to max. 35°C (95°F)

THIRD pARTy MANUfACTURERS

The ZOOM flashhead cannot be connected to power packs from other brands. Even when

similar flashhead sockets and plugs are used by other manufacturers, the wiring of the

contacts and the flash tubes are specifically made for Elinchrom power packs. Use only

original Elinchrom accessories and reflectors. The warranty does not cover damages forced

by third party accessories and reflectors.

ZOOM HEAD ON/Off SwITCH

The Halogen modelling lamp can be switched on/off directly from the ZOOM Head, if this is

required. It does not switch off the flash light.

ZOOM HEAD INTELLIGENT fAN COOLING AND OVERHEAT

pROTECTION

The fan speed is electronically controlled. Close to the on/off switch is a small LED, which

lights up in case of over heating. The overheat protection shuts down the Halogen lamp at

internal high temperature. After cooling down the Halogen lamp switches on automatically

and the red LED turns off.
