Frequency channel – Elinchrom 19350 User Manual
Page 6
4

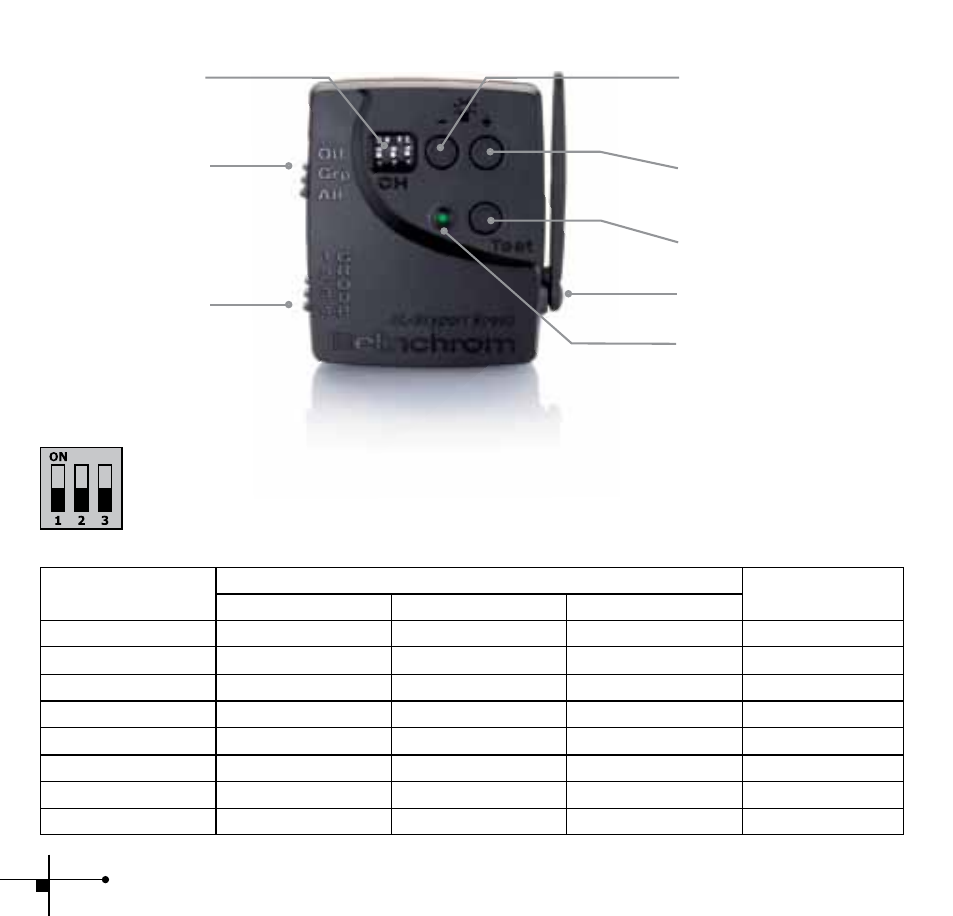

Fig. 2
Flexible swivel
Antenna 360 ̊
Status LED
Flash Test / Flash Mode /
Configuration button
RX feature button
Power increase
or modelling lamp
toggle
RX feature button
Power decrease
Frequency
channel selector
MODE switch
GROUP switch
Frequency Channel
Note:
Transmitter and the corresponding Transceiver RX, the Universal Receiver or the EL
units with integrated EL-Skyport Receiver must have the same frequency channel
settings!
Frequency
Channel
Slide Button configuration
Frequency
/ Mhz
1
2
3
1 (default)
Off
Off
Off
2456
2
On
Off
Off
2458
3
Off
On
Off
2460
4
On
On
Off
2462
5
Off
Off
On
2469
6
On
Off
On
2471
7
Off
On
On
2473
8
On
On
On
2475
