Exmark Lazer Z HP 505 - Manual (Page 12)

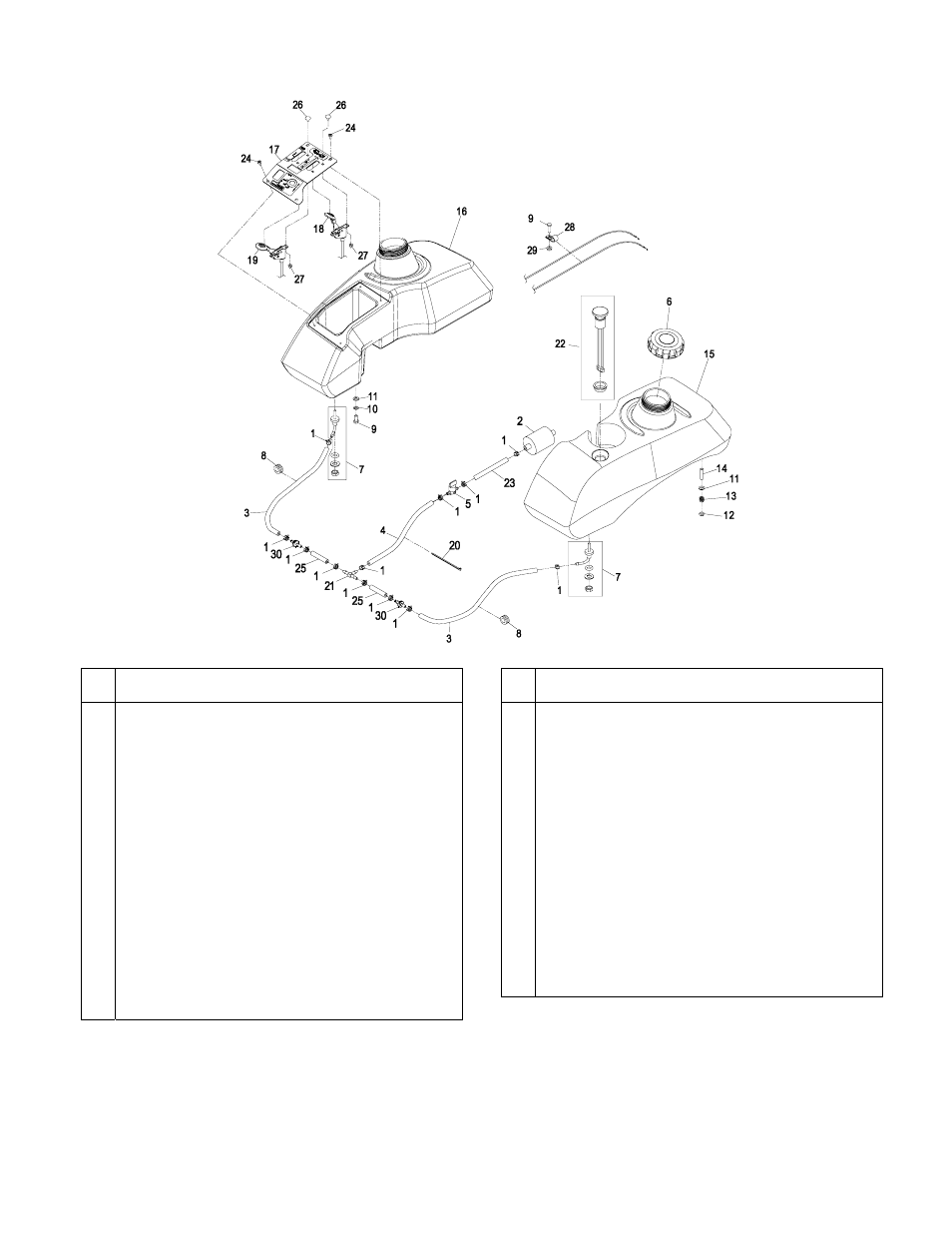

FUEL GROUP
- 11 -
Item
Part No.
Description
Qty.
1 1-303077 Clamp, Fuel Line....................................12
2) Kohler Part No. 2405010 Fuel Filter ..................1
Kawasaki Part No. 49019-7001 Fuel Filter .............1
3 109-2225 Hose, Fuel Line 20 1/2”..........................2
4 109-0275 Hose, Fuel Line 32”................................1
5 1-603770 Valve, Fuel.............................................1
6 109-0346 Cap, Fuel Tank ......................................2
7W 103-2605 Fitting, Fuel Bulkhead W/Strainer ..........2
103-2784 O-Ring ...................................................2
8 1-543296 Grommet, Fuel Line ...............................2
9 322-3 Screw, 5/16-18 x 3/4 ..............................5
10 1-805005 Washer, Lock 5/16.................................4
11 3256-23 Washer, 5/16 SAE .................................8
12 3296-47 Nut, Nyloc 5/16-18 .................................4
13 1-633349 Spring, Fuel Tank...................................4
14* 1-633023 Stud, Fuel Tank .....................................4
15+ 103-4898 Asm, Tank Fuel (LH)..............................1
Item
Part No.
Description
Qty.
16+ 109-0686 Asm, Tank Fuel (RH)............................. 1
17 109-4509 Asm, Control Panel W/Decals ............... 1
18 109-3987 Control, Throttle (Red) ........................... 1
19 109-4211 Control, Choke (Black) (Kohler) ............. 1
109-4210 Control, Choke (Black) (Kawasaki) ........ 1
20 1-303335 Plastic Tie (Large) ................................. 1
21 99-5005 Fitting, Barbed Tee ................................ 1
22 103-6563 Kit, Fuel Gage ....................................... 1
23 109-0660 Hose, Fuel Line 3 1/2” ........................... 1
24Q 109-2661 Screw, PPH #10-24 x 1/2 ...................... 4
25 109-0304 Hose, Fuel Line 2 1/2” ........................... 2
26 1-807513 Bolt, Carriage #10-24 x 1/2 .................... 4
27 3296-2 Nut, Nyloc #10-24.................................. 4
28 1-633396 Clip, Loom 5/8 ....................................... 1
29 32128-20 Nut, Whizlock 5/16-18 ........................... 1
30 99-5000 Valve, Fuel Check ................................. 2
* Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads going into tank.
) Refer to Engine Owner’s manual. (Fuel filter Must be 15 Micron or smaller).
+ Includes tank, cap, fitting, and studs. LH tank also includes fuel gauge.
W Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting.
Q Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.
