3) Wall Installation
a) Make sure the exhaust hose is properly installed onto the portable air
conditioner as described above.
b) Make a hole of 5 1/8” diameter in your wall.
c) Position the portable air conditioner near the hole.
d) Feed as much exhaust hose as is needed through the hole.
Notes:
Be sure to cover the hole when it is not being used by the portable air conditioner.
Be sure to have a qualified person make the hole to avoid the possibility of injury or of
unintended damage to your room.
Operation

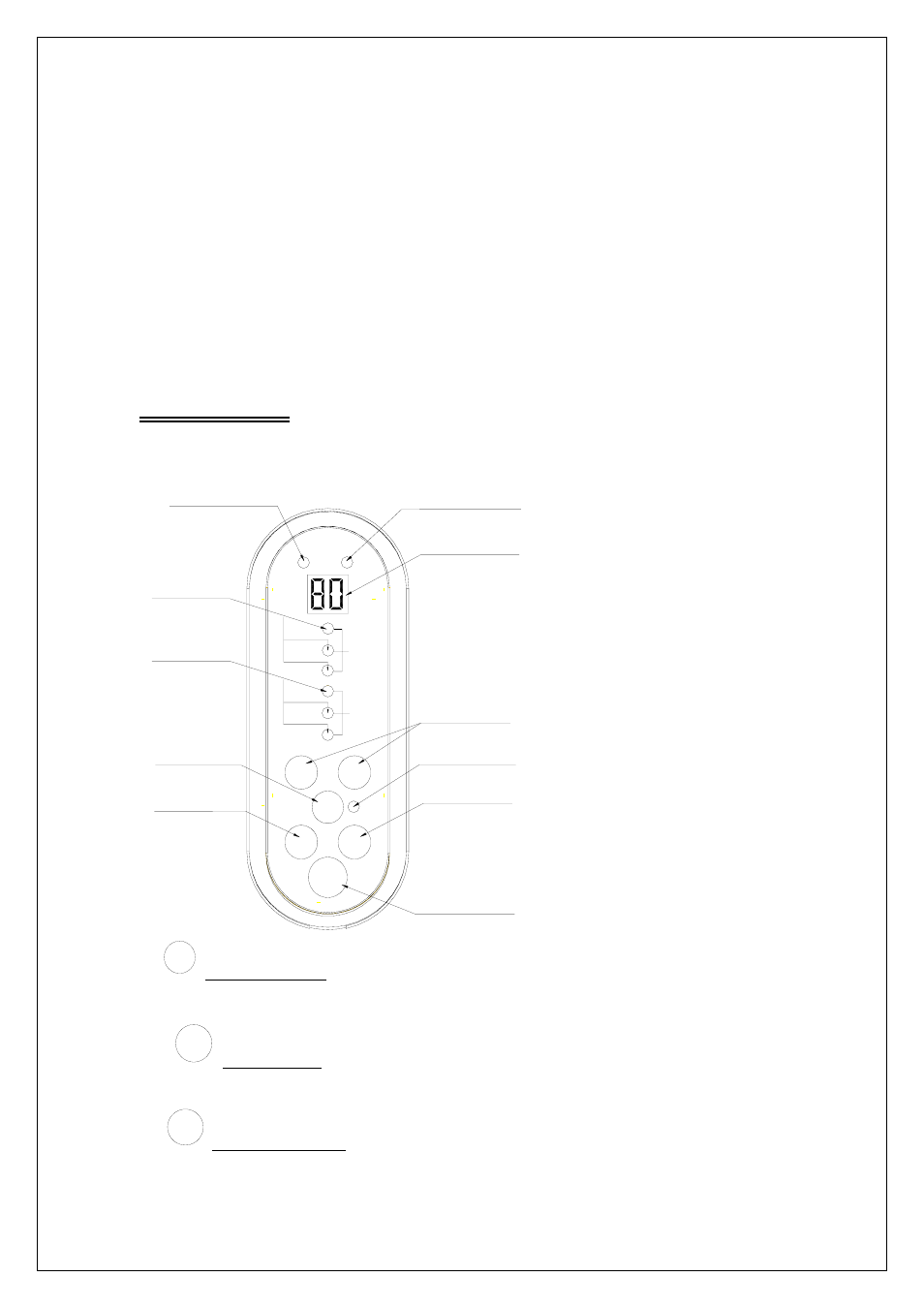

1) Control Panel
Power I ndi cat or
Oper at i on Mode
Di spl ay Li ght
Fan Speed
Di spl ay Li ght
Fan Speed Set
But t on
Ti mer Set But t on
MODE FAN
ON/OFF
ON/ OFF But t on
Set t i ng Temper at ur e
Di spl ay
FAN
UP
TIMER
DOWN
MED
HI GH
DRY
COOL
LOW
MODE
FAN
Mode Set But t on
Ti mer I ndi cat or
Temper at ur e But t on
POWER WATER FULL
Wat er Ful l I ndi cat or
1)
ON/OFF
: On/Off Button
Turns the unit on or off.
2)
MODE
: Mode Button
Selects the mode: Dehumidifying, Cooling, or Fan-only.
10
3)
FAN
: Fan Speed Button
Switches between low and high fan speeds.
