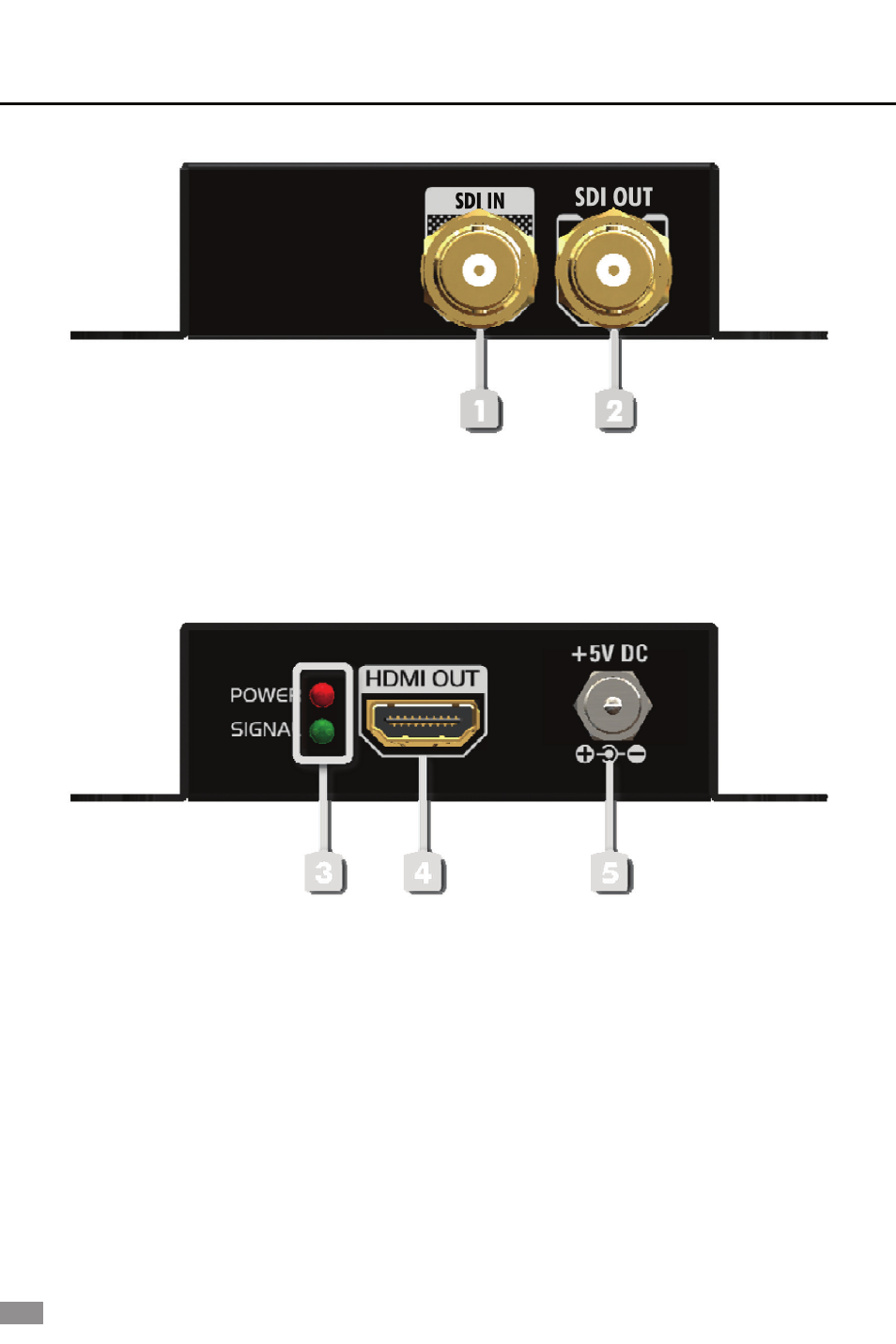

PANEL DESCRIPTION
FRONT PANEL
BACK PANEL
1. SDI IN: 3G/HD/SD-SDI Input
2. SDI OUT: 3G/HD/SD-SDI output
3. Signal LED:
Both power and signal are active.
Only power is active.
4. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
5. +5V DC: Connect to a 5V DC power supply included.
