6. Carefully locate the white and blue
wires (labeled either "L" or "LIGHT") in
the switch cup and remove the wire
connectors from the wires.
7. Insert the black and white wires from
the light fitter (7) through the center
hole in the switch cup (Figure 2) and
thread the switch cup onto the light
fitter. Hold wires taut while installing
switch cup to prevent the wires from
twisting.
8. Insert the black and white wires through
the lockwasher (8) and hex nut (9)
(supplied). Firmly tighten the hex nut to
secure the light kit fitter to the switch
cup.
9. Connect the white wire from the switch
cup to the white wire of the light fitter
(Figure 2). Connect the blue wire from
the switch cup to the black wire of the
light fitter. Use listed wire connectors
(6) (supplied) to make connections
(Figures 2 and 3).
Assembly and Installation
2. Remove and retain the four round nuts
and screws securing the cage to the
light fitter (Figure 4). Remove the cage
and the glass globe/plate.
3. Remove the switch cup (1) from the
cover plate (2) by removing the three
screws (3) around the side of the switch
cup (Figure 1).
4. Disconnect the motor connector (4)
from the switch cup connector (5).
5. Remove the center screw (6) from the
switch cup.
10. Carefully tuck all wires and splices into
the switch cup (1). (Figure 2.)
11. Connect the motor connector (4) to the
switch cup connector (5).
12. Position the cup/light fitter (1)(7) on the
cover plate (2) and install the three
screws (3) that were previously
removed in step 3 and tighten securely.
Do not install or use the light fixture
if any part is missing or damaged.
Contact your dealer for replacement.

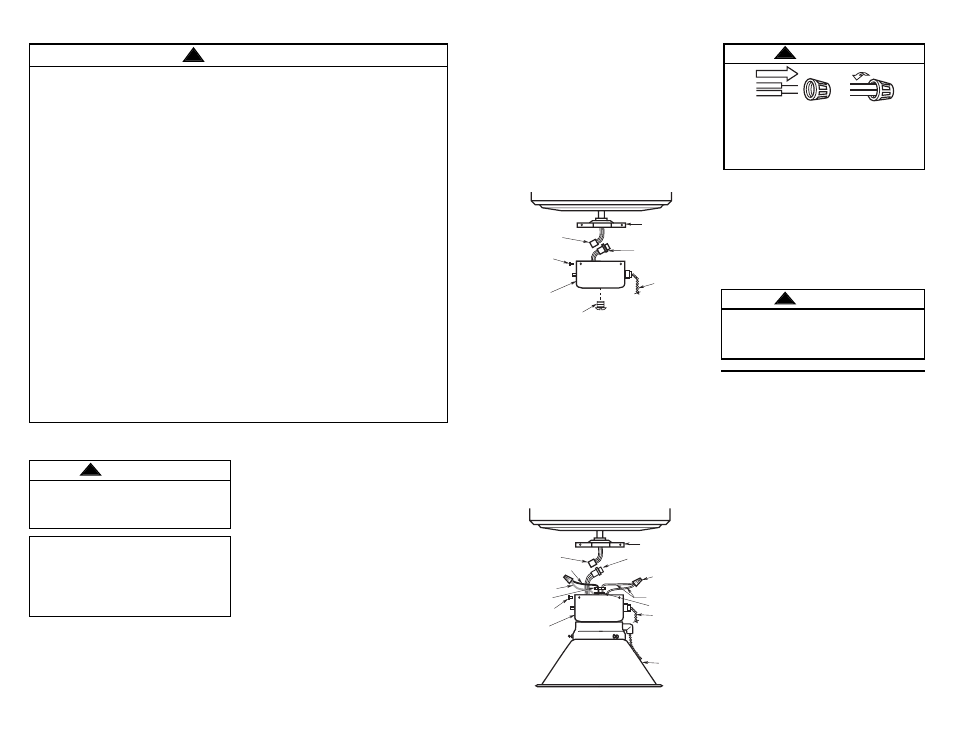

(3) SCREWS
(1) SWITCH
CUP
(4) MOTOR
CONNECTOR
(5) SWITCH CUP
CONNECTOR
FAN SWITCH
CHAIN
(8) LOCKWASHER
WHITE WIRES
(2) COVER PLATE
(6) WIRE
CONNECTOR
(9) HEX NUT
BLACK WIRE
BLUE WIRE
(7) LIGHT
FITTER
2 3
Figure 2
(3) SCREWS
(6) CENTER SCREW
(1) SWITCH
CUP
(4) MOTOR
CONNECTOR
(2) COVER PLATE
(5) SWITCH CUP
CONNECTOR
FAN SWITCH
CHAIN
Figure 1
Figure 3
To avoid possible fire or electrical
shock, make certain no bare wire
strands are exposed outside wire
connectors.
Installation on Emerson
Fans Having a Modular
Switch Cup with Center
Screw
1. Remove all parts and parts packages
from the carton.
Safety Instructions
To avoid fire, shock, and serious personal injury, follow all instructions carefully.
1. Read your Owner's Manual carefully before installing the light fixture. Retain Owner's
Manual for future reference.
2. Be careful of the fan and blades when cleaning, painting, or working near the fan.
Before installing or servicing the light fixture or ceiling fan, switch power off at
service panel and lock service panel disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be
locked, securely fasten a warning device, such as a tag, to the service panel.
3. Do not exceed the wattage indicated on fixture (60-watt intermediate base bulb
maximum).
ADDITIONAL SAFETY INSTRUCTIONS FOR INSTALLATION
1. To avoid possible electrical shock be sure electricity is turned off at the main fuse or
circuit breaker box before wiring.
2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA
70-1999 and Local Codes. Use the National Electrical Code if Local Codes do not
exist. The ceiling fan must be grounded as a precaution against possible electrical
shock. Electrical installation should be made or approved by a licensed electrician.
3. Make certain no bare wires are exposed outside the wire connectors.
4. All wiring must conform to national and local electrical codes.
5. Follow the recommended instructions for the proper method of wiring your new light
fixture. If you feel you do not have enough electrical wiring knowledge or experience,
have your light fixture installed by a licensed electrician. Any electrical work not
described in this manual should be performed by a licensed electrician.
WARNING: To reduce the risk of possible fire and electrical shock, install only on
Emerson Model CF653, CF654, CF680, CF690, and CF695 Ceiling Fans installed in wet
locations. Permissible to use this light kit on all CF and F Series Ceiling Fans installed
in indoor locations. Permissible to use this light kit on CF652, CF653, CF654, CF670,
CF680, CF690, CF695, CF742 and CF2000 Model Ceiling Fans installed in damp
locations.
WARNING !
WARNING !
WARNING !
To avoid possible fire or electric shock,
be careful not to pinch wires between
switch cup and the cover plate.
WARNING !
Installation on Emerson
Fans Having Two-Piece
Die-Cast Switch Housings
1. Remove the cover (4) from the switch
housing (1) below ceiling fan (Figure 4).
Retain screws (2) for future use.
Remove the center screw from the
cover (4).
2. Insert the black and white wires from
the light fitter (5) through the center hole
in the cover (4) and thread the cover
onto the light fitter and tighten. Install
the spring lockwasher and hex nut.
3. Carefully pull down the white and blue
wires from the switch housing and
remove wire connectors.
4. Connect the white wire from the ceiling
fan to the white wire of the light fitter (5).
Connect the blue wire from the ceiling
fan to the black wire of the light fitter.
Use listed wire connectors (previously
removed in step 3) to make
connections. (Figures 3 and 4).
CAUTION
To reduce the risk of electric shock,
disconnect the electrical supply
circuit to the fan before installing
light kit.
