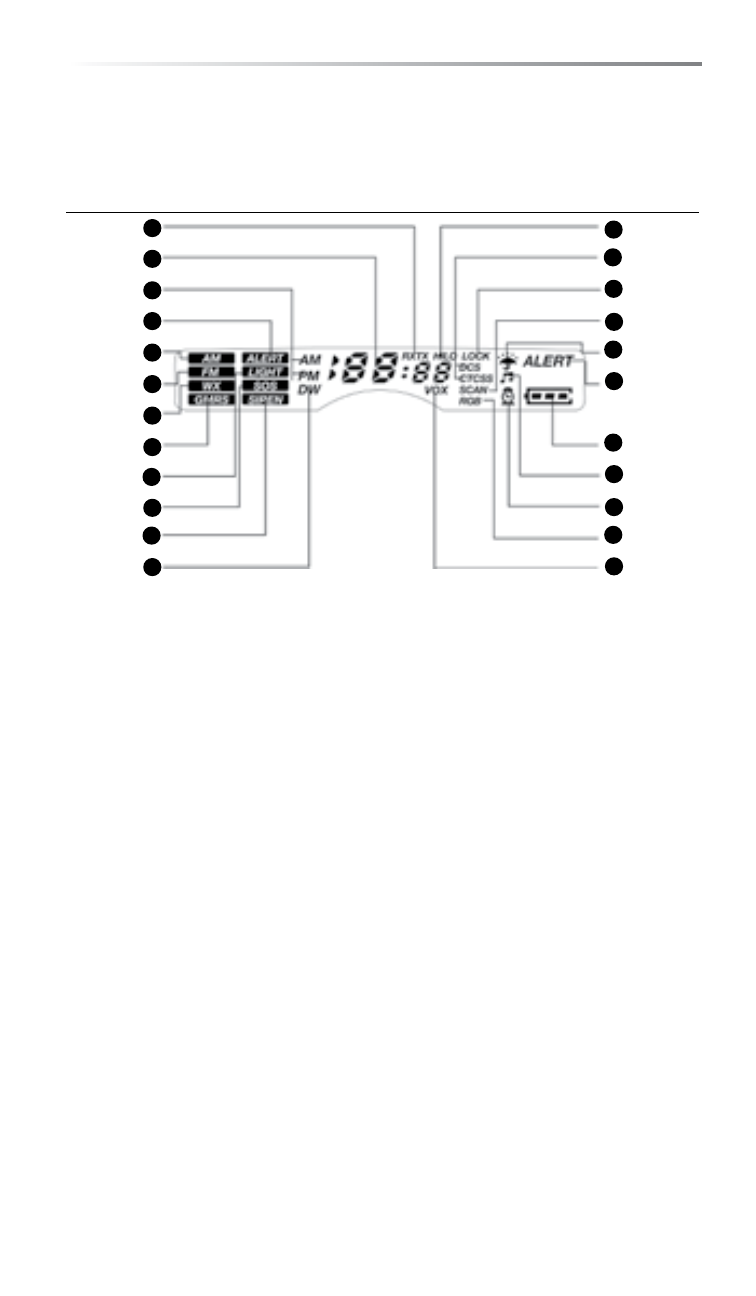

LCD DISPLAY
1. RECEIVER (RX)/TRANSIT(TX) ICON -
Indicates radio is transmitting a signal
(TX) or if the radio is receiving a transmis-
sion (RX).
2. CHANNEL NUMBER - Changes from 1-22
on GMRS/FRS band (1-7 on WX Band).
This is also used to indicate in part the
current AM/FM receiver frequency setting
and the current clock setting.
3. CLOCk AM/PM ICON - Indicates clock is
set in AM or PM.
4. NOAA WEATHER (WX) ALERT ICON- Indi-
cates the WX Alert function is on.
5. AM RECEIVER ICON - Indicates radio is in
AM receiver mode.
6. FM RECEIVER ICON - Indicates radio is in
FM receiver mode.
7. NOAA WEATHER (WX) BAND ICON
- Indicates when the radio is in Weather
Band mode
8. GMRS ICON - Indicates radio is in GMRS
mode
9. FLASHLIGHT ICON - Indicates the Flash-
light is on.
10. S.O.S ICON - Indicates the SOS function
is on.
11. SIREN ICON - Indicates the Siren function
is on.
1
2
12. DUAL WATCH ICON - Indicates the Dual
Watch function is on.
13. TRANSMIT POWER LEVEL ICON - Indi-
cates TX Power setting (HI/LO)
14. PRIVACY CODE ICON - Indicates Privacy
Code setting (CTCSS/DCS).
15. kEY LOCk ICON - Indicates KEY LOCK
mode is on.
16. SCAN ICON - Indicates when the radio is
in Scan mode.
17. NOAA WEATHER (WX) BAND ICON
- Indicates when the radio is in Weather
Band mode
18. ALERT ICON - I ndicates the radio has
received a NOAA Weather (WX) ALERT
signal
19. BATTERY METER - Indicates the battery
level.
20. kEY TONE ICON - Indicates radio’s Key
Beep Tone is on.
21. ALARM CLOCk ICON - Indicates when the
ALARM CLOCK is on.
22. ROGER BEEP ICON - Indicates radio’s
Roger Beep Tone is on.
23. VOX ICON - Indicates when VOX mode
is active.
10
11
12
1
1
1
1
1
1
1
20
21
22
2
