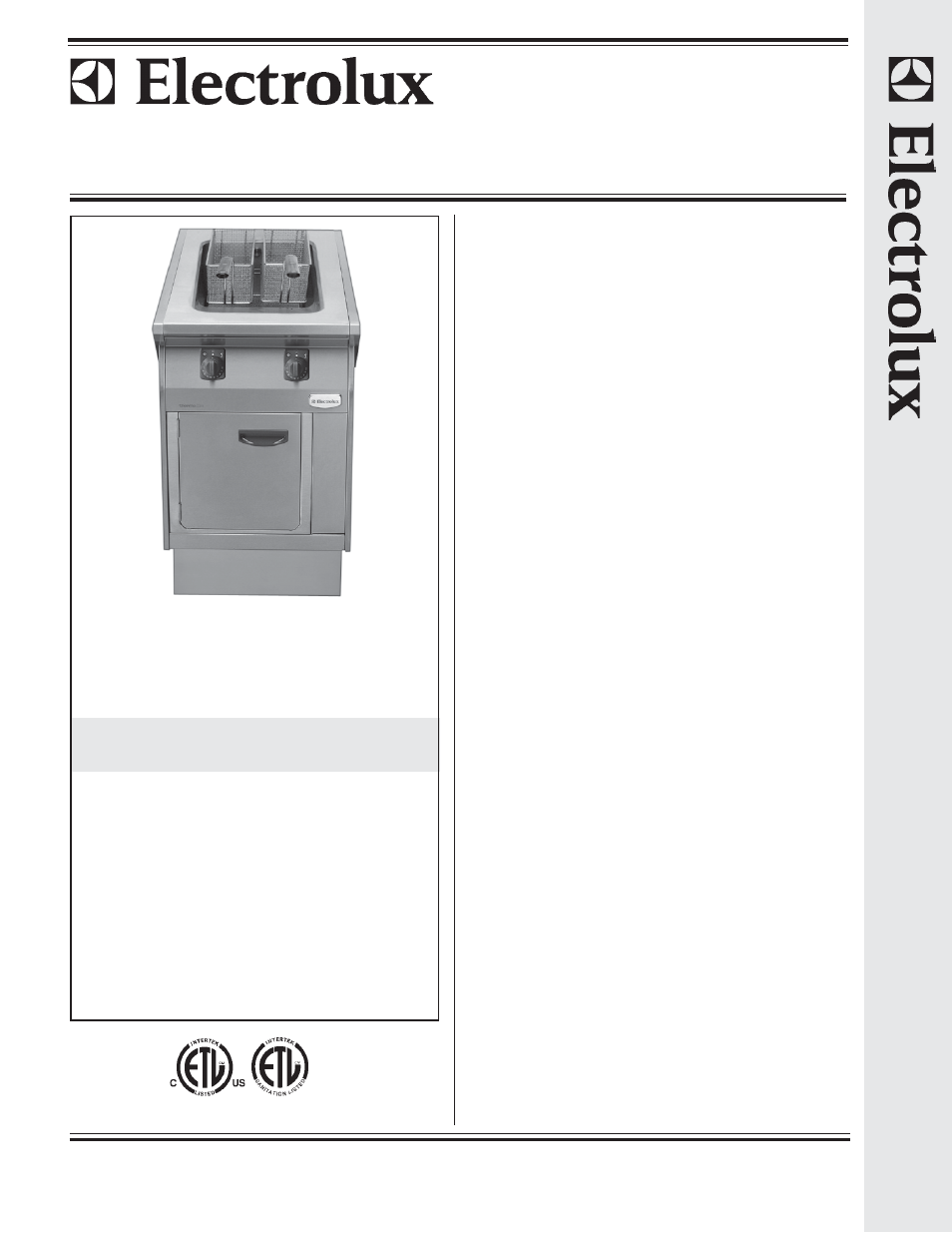

584102 (WFGROAOOOO) S90 One 6 Gal Well Gas Deep
Fat Fryer,
island,
1
side operation
Item No. ___________________________________
Unit to be Electrolux S90 Heavy Duty One 6 gal well Gas Deep Fat
Fryer. Unit to have high efficiency 74,000 BTU (22 kW) burners. Unit
to be installed in central island type installations with operations
from one side. Unit to have deep drawn
v-shaped well with expan-
sion zone located at top of the well. Oil cleaning device shall be
located below the well. Body and base of unit entirely in 304 type
stainless steel. Unit shall have heavy duty 304 type stainless steel
internal frame with reinforcement on the top of 0.118
″ (3 mm).
Extra strength work top in heavy duty 0.118 ″ (3 mm) stainless
steel. “Lasertec” connection system permits units to be connected
to each other creating a seamless work top.
Covered by Electrolux Platinum
Star® Service Program two-year
parts and one-year labor warranty, installation star t-up and
performance check-up after one year from installation.
Short Form Specification
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Modular Cooking Range Line
S90 Heavy Duty One Well Gas
Deep Fat Fryer, Island, 1 Side
Main features
• Unit for island type installations with operations by chef from one side.
• Deep drawn v-shaped well.
• Interior of well with rounded corners for easy of cleaning.
• External heating elements for ease of cleaning of internal well.
• High efficiency 74,000 btu (22 kW) burners.
• Expansion zone located on top of the well.
• Thermostatic regulation of oil temperature up to a maximum of
365 °F (185 °C) .
• Flame failure device to each burner.
• Overheat protection as standard on all units.
• Oil cleaning device located in compartment below the well.
• All major compartments located in front of unit for ease of maintenance.
• Piezo spark ignition with thermocouple for added safety.
• Heavy duty internal frame 304 type stainless steel with reinforcement on
top of 0.118 ″ (3 mm).
• 0.118 ″ (3 mm) top in 305 type stainless steel.
• “Lasertec connection system” creates seamless work top when units are
connected to each other.
• Raised rear c-board permits unit to be connected up against the wall for
better hygiene.
• Unit delivered with four 7-7/8 ″ (200 mm) legs as standard (all round
stainless steel kick plates as option).
• Supplied as standard with 2 baskets with insulated handles.
Included accessories
• Basket rest grid for 6 gal well fryer.
• 2 baskets for 6 gal fryer.
• Closing cover for 6 gal fryer.
Optional Accessories
• Left side stainless steel 0.118″ (3 mm) panel.
• Right side stainless steel 0.118″ (3 mm) panel.
• 5 ″ (130 mm) portioning shelf.
• 7.8 ″ (200 mm) portioning shelf.
• All round stainless steel kick plates.
• Basket rest grid for 6 gal well fryer (included).
• Discharge vessel for 6 gal fryer.
• Lid for discharge vessel for 6 gal fryer.
• Extra basket for 6 gal fryer (two included).
• Closing cover for 6 gal fryer (included).
• Oil strainer for fryer.
• Sediment tray for fryers.
