EQ-231/Graphic Equalizer
EQ
-231/Graphic Equalizer
3

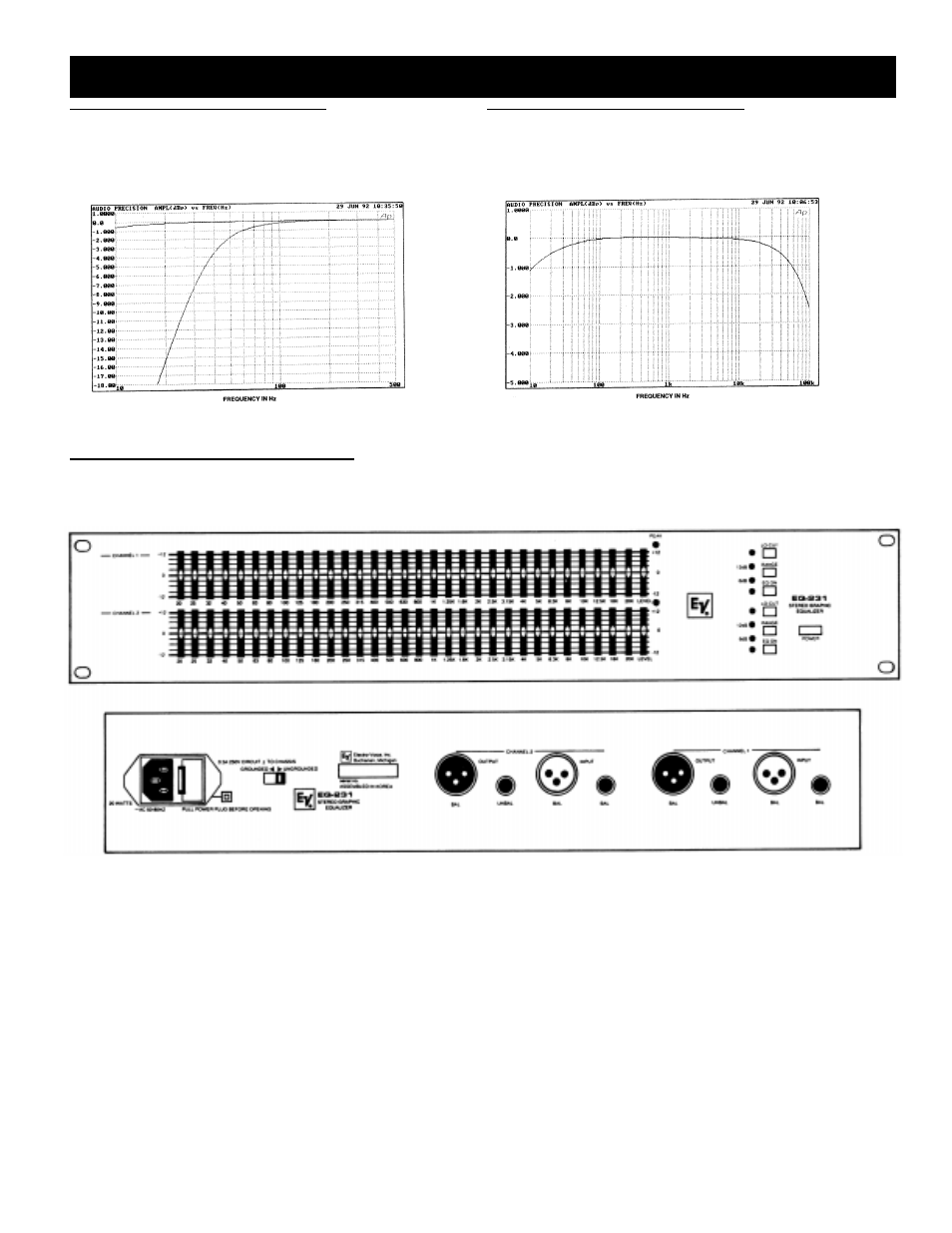

FIGURE 5— Front and Back Panel Details
FIGURE 3 — High-Pass Filter
Response, Upper Trace Lo-Cut Off,
Lower Trace Lo-Cut On
FIGURE 4 — Frequency Response, +6-
dB Gain Position(high-pass filter off)
OUTPUT IN dB
OUTPUT IN dB
