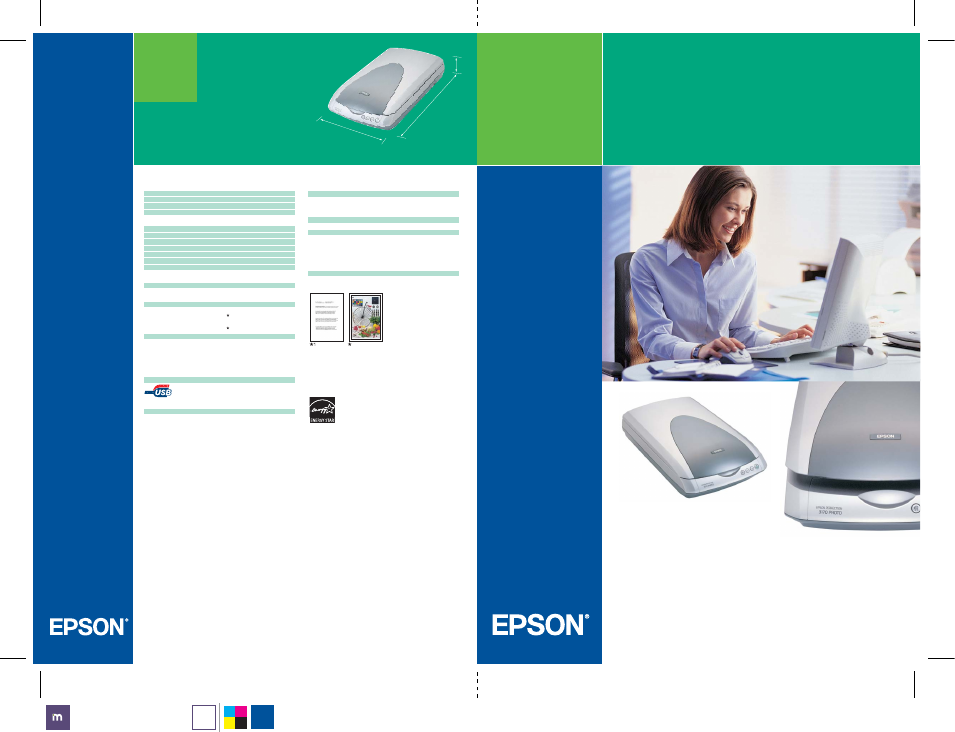

EPSON PERFECTION ™ 3170 PHOTO
Specifications
COLOUR
SCANNER
SCANNING SPEED DATA PATTERNS
The thumbnails below show the scanning patterns used to determine scanning
speed specifications.
EPSON PERFECTION 3170 PHOTO B11B161014
SCANNER TYPE Flatbed colour image scanner
SUB-SCANNING METHOD Fixed document and moving carriage
PHOTOELECTRIC DEVICE
6 line alternated colour CCD
with On-Chip Microlens
DOCUMENT SIZE 216 x 297mm (A4 - Letter size)
LIGHT SOURCE White cold cathode fluorescent lamp
OPTICAL RESOLUTION 3,200 x 6,400dpi with Micro Step Drive
OPTICAL DENSITY 3.4D
PIXELS/LINE 81,600 pixels (13600 x 2 line x 3 colours)
OUTPUT RESOLUTION 50 to 6,400, 9,600, 12,800dpi
GRAYSCALE
16-bit (65,536 grayscale levels) external
16-bit (65,536 grayscale levels) internal
COLOUR
48-bit (281,474 billion colours) external
48-bit (281,474 billion colours) internal
SCANNING SPEED
MONOCHROME,
A4 300dpi: 12 sec 1
COLOUR,
A4 300dpi: 12 sec 2
SUPPORTED PLATFORMS
Microsoft ® Windows ® 98/Me/
2000 Professional/XP Home Edition/
XP Professional (pre-installed model
or upgrade of Windows ® 98/Me/
2000 Professional pre-installed model)
Mac OS ® 8.6 to 9.x, Mac OS ® X 10.2.1
or later
INTERFACES
USB 2.0 ++ (Type-B receptacle connector) x 1
++The functionality of the USB port(s) must be ensured by the vendor of the Host.
ENVIRONMENTAL CONDITIONS
TEMPERATURE 5 ° to 35°C (Operating)
HUMIDITY 10% to 80% without condensation (Operating)
ELECTRICAL SPECIFICATIONS
VOLTAGE AC220 ~ 240V
FREQUENCY 50 to 60Hz
POWER CONSUMPTION 23W (Operating)
OPTIONS
AUTOMATIC DOCUMENT FEEDER B12B813342
BUNDLED SOFTWARE
EPSON Scan
EPSON Smart Panel
Adobe Photoshop Elements
Presto! PixExpress (PDA Software Required)
Adobe Acrobat Reader (Windows only)
Online User Guide
System Configuration for
Scanning speed tests
CPU: Pentium 4 2.4 GHz
RAM: 516MB
I/F: USB 2.0 Hi-Speed
OS: Windows XP Home Edition
Soft: Adobe Photoshop 7.01E
2
(Photo courtesy of
ISO/JIS-SCID.
Reprinted by
permission.)
Scanning speed test results vary according to system configuration, dpi setting, and scan mode
setting. However, documents and photos other than those pictured above can be substituted
without significantly affecting test results.
Black Text
(MEMO)
• High resolution – 3200dpi scanning
• High speed – USB 2.0 Hi-speed interface and
on-board ASIC processor
• Advanced film scanning – Integrated Transparency
Unit for 35mm slides and films
• Total software solution – bundled with photo editing,
OCR and EPSON Smart Panel software
• Photo Restoration – substantially revive your faded photos
• Automatic Document Feeder – optional extra
As an International ENERGY STAR Partner, EPSON has determined that this
product meets the International ENERGY STAR guidelines for energy efficiency.
EPSON is the registered trademark of SEIKO EPSON Corporation. EPSON
STYLUS, PerfectPicture, MicroPiezo, AcuPhoto Halftoning, QuickDry are the
trademarks of SEIKO EPSON Corporation. All other names and company names
used herein are for identification purpose only and may be the trademarks or
registered trademarks of their respective owners. EPSON disclaims any and all
rights in those marks. All print samples shown herein are simulations.
Specifications are subject to change without notice.
