8
a
ssembly
wArning
Do not perform maintenance or assembly procdures with engine running.
Tools Required: 4 & 5 mm Hex Wrench
Parts Required: ProSweep Gear Housing, Lower Drive Shaft Assembly,
PAS or SRM-SB Power Head w/Shaft & Coupling.

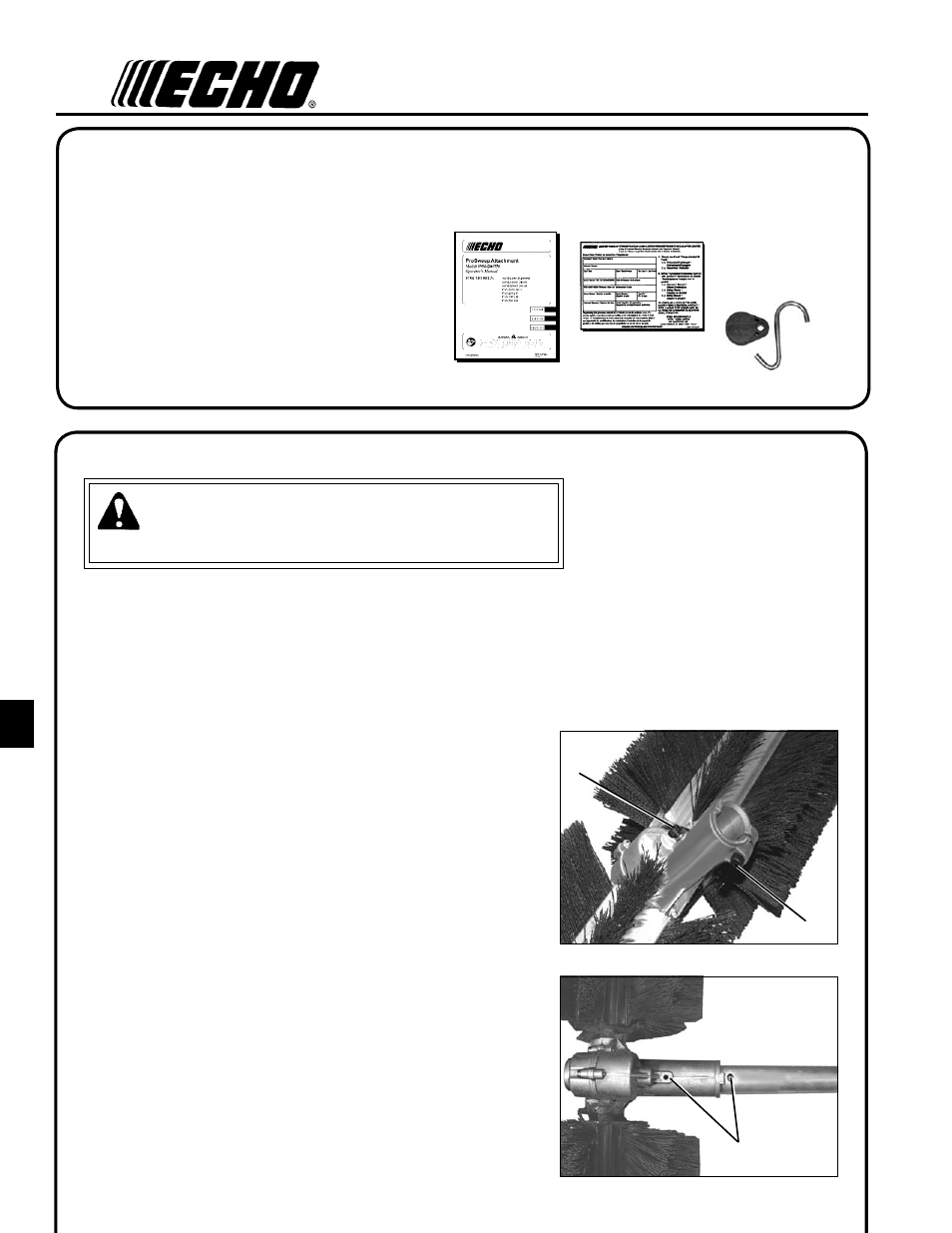

prosweep gear housIng assembly to lower
C
A
B
___ 1 - Brushes / Gear Housing Assembly
___ 1 - Lower Drive Shaft Assembly
___ 1 - Operators Manual
___ 1 - Warranty Registration Card
___ 1 - Storage Hook Assembly
c
ontents
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
drIve shaft assembly
1. Remove vinyl caps from attachment drive shaft.
2. Place brush gear housing assembly on a flat surface with gear
housing shaft mount at 45 ° angle.
3. Remove gear housing locator screw (A) with 4 mm hex wrench.
4. Loosen gear housing mounting bolt (B) with 5 mm hex wrench.
5. Position lower drive shaft (end without serial number decal) into
gear housing shaft mount.
6. Align hole in drive shaft housing with gear housing shaft hole
(C) and seat lower drive shaft end into gear housing shaft mount.
Install and tighten locator screw (A).
7. Tighten gear housing mounting bolt (B).
