Preparing for Installation
INSTALLING THE ANTI-TIP BRACKET (FOR 30”, 36” &
48” MODELS)
WARNING
WARNING
WARNING
WARNING
WARNING
The 30”, 36” and 48” ranges require an anti-tip device. Before installing the range, you
must locate and secure the anti-tip bracket to the floor.
Back wall
7 1/2"
(191mm)
4 13/16" (122mm)
24" (610mm)
36 1/16"
(916mm)
18 1/32"
(458mm)
All Dimensions are
from Cabinet Only
(Not Countertop)

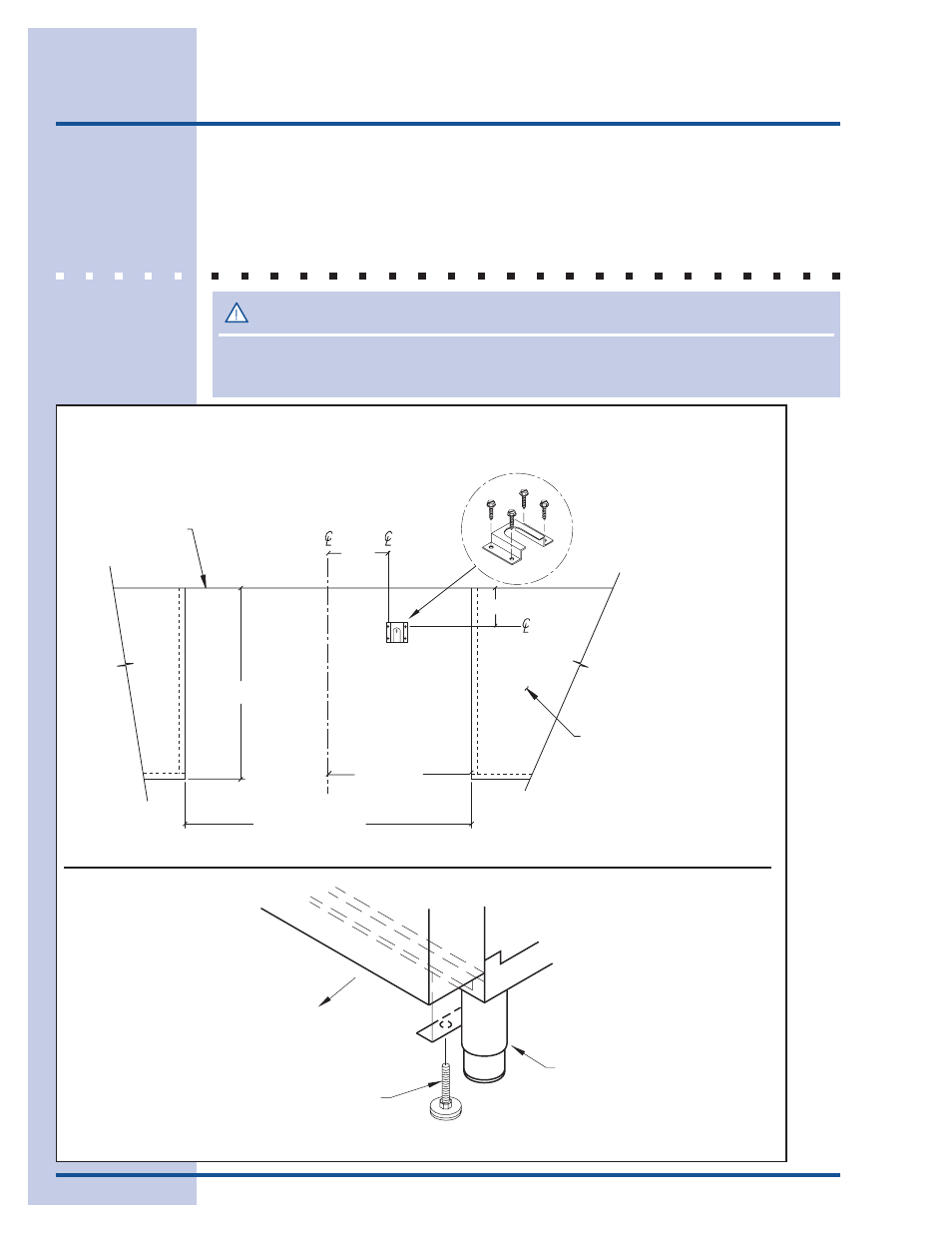

Installation of E36DF76EPS Anti-Tip Bracket
Top View
Left
Rear
Leg
Leveler
5/16 - 18 x 2
or Equivalent
Rear
Location of the E36DF76EPS Anti-Tip Leveler
Figure 6
Figure 7
