Connection to
AC Power Outlet

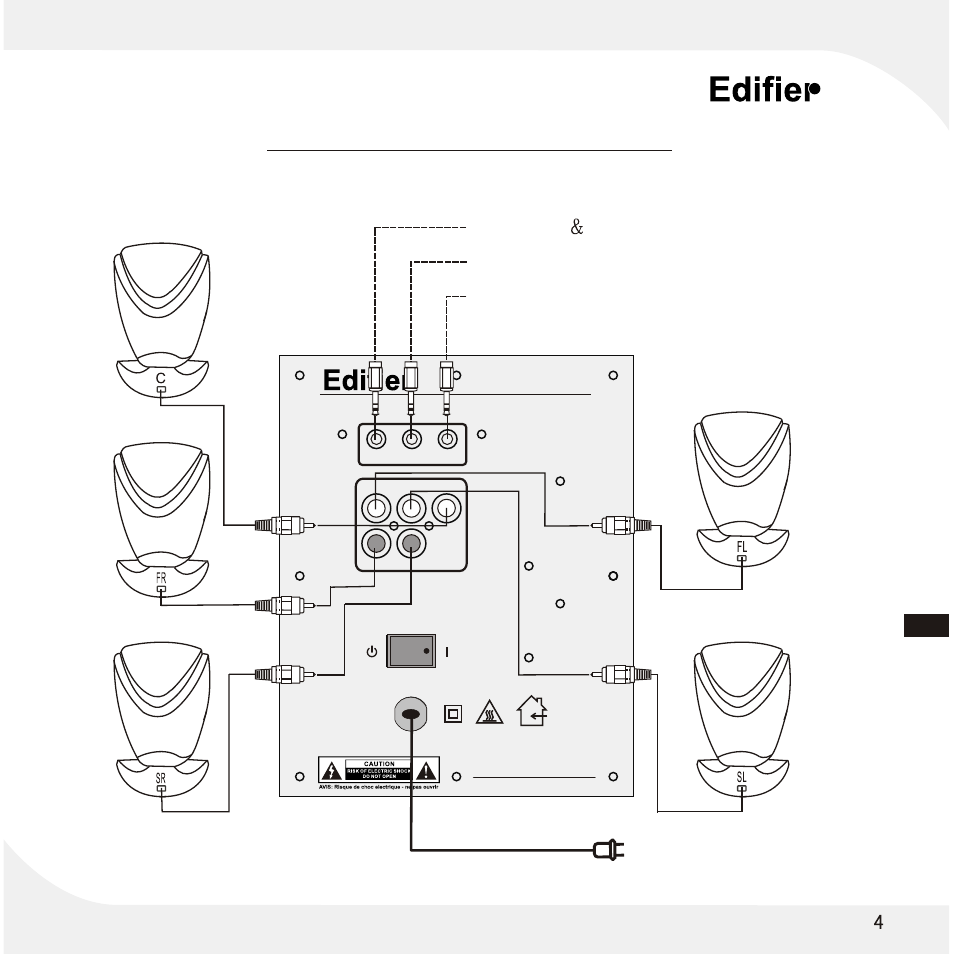

Speaker Connection Instructions
C /SW
FR/FL
SR/SL
FL
SL
C
SR
FR
Speaker
Output
Speaker
Output
POWER
POWER
Line In
Line In
Multimedia speaker
M1500
M1500
YELLOW
RED
GREEN
WHITE
BLUE
Input of central and heavy-bass audio signal.
Input of surround audio signal.
Input of left right audio signal.
